37798 (824 OE) - Toro 24" Power Max Snow Thrower (SN: 413000000 - 415199999) Piston and Head Assembly Parts Diagram

24" Power Max Snow Thrower

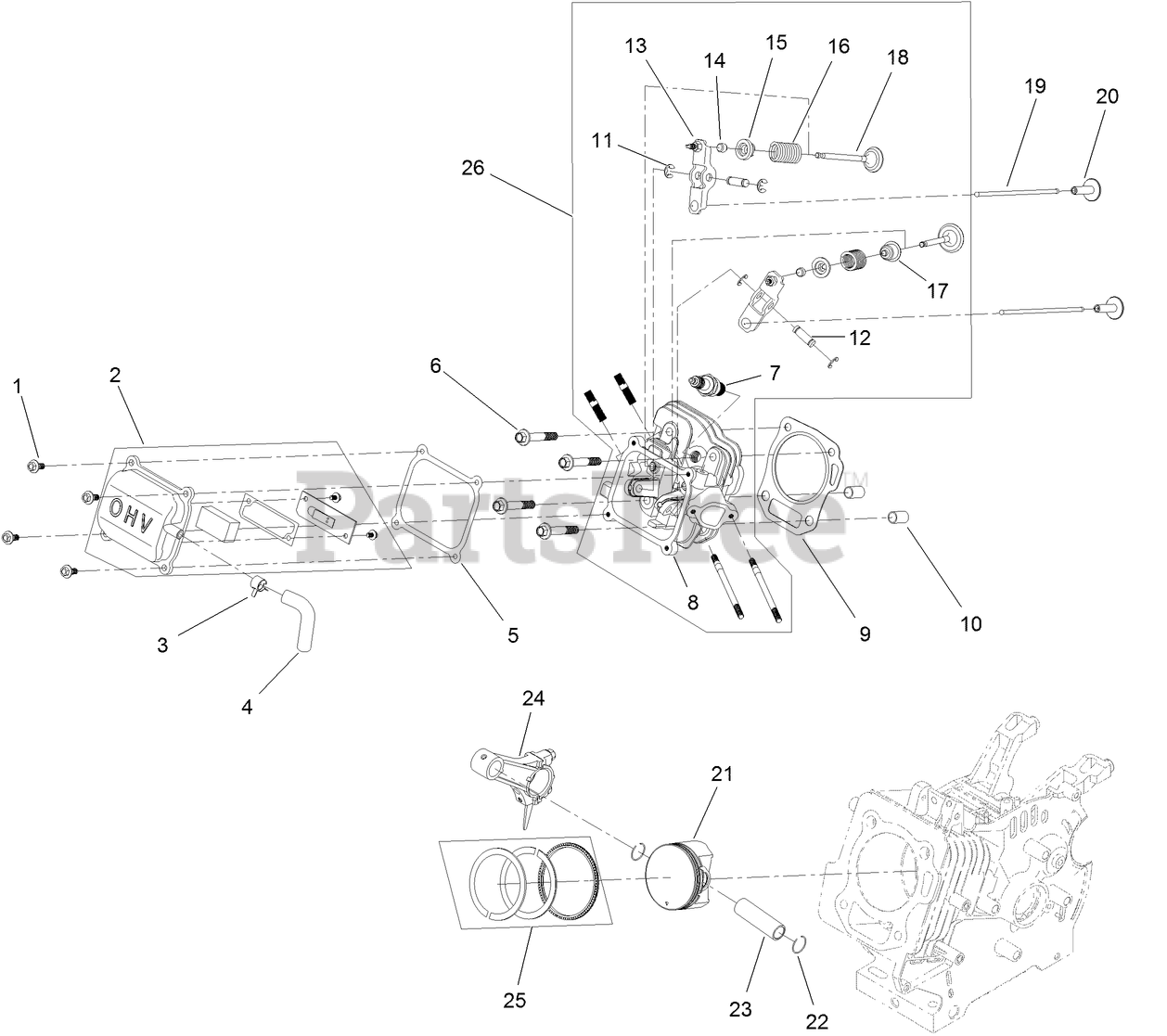

Piston and Head Assembly Parts Diagram

  • Title
1

Toro 120-4454

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 133-1500

VALVE COVER ASM

$42.99

$

Usually ships in 3-6 days

0

3

Toro 133-1558

CLAMP-HOSE

$1.99

$

Usually ships in 3-6 days

0

4

Toro 133-9990

TUBE-BREATHER

$3.99

$

Usually ships in 3-6 days

0

5

Toro 133-1507

GASKET-COVER, VALVE

$2.99

$

In Stock, only 2 left!

0

6

Toro 133-1508

SCREW-FLANGE

$3.49

$

Usually ships in 3-6 days

0

7

Toro 81-3250

SPARK PLUG

$3.99

$

In Stock, Qty 20+

0

8

Toro 133-1509

HEAD-CYLINDER

$109.99

$

Usually ships in 3-6 days

0

9

Toro 133-1510

GASKET-HEAD

$13.99

$

Usually ships in 3-6 days

0

10

Toro 120-4200

PIN-DOWEL

$2.99

$

Usually ships in 3-6 days

0

11

Toro 133-1511

E-CLIP

$1.49

$

Usually ships in 3-6 days

0

12

Toro 133-1512

PIN-ARM, ROCKER

$4.99

$

Usually ships in 3-6 days

0

13

Toro 133-1513

ROCKER ARM ASM

$13.99

$

Usually ships in 3-6 days

0

14

Toro 121-4116

ROTATOR-VALVE

$3.99

$

In Stock, only 1 left!

0

15

Toro 121-4117

RETAINER-SPRING, VALVE

$5.99

$

Usually ships in 3-6 days

0

16

Toro 127-9014

SPRING-VALVE

$3.99

$

Usually ships in 3-6 days

0

17

Toro 121-4202

SEAL-STEM, VALVE

$7.49

$

Usually ships in 3-6 days

0

18

Toro 133-1515

SET-VALVE

$22.99

$

Usually ships in 3-6 days

0

19

Toro 133-1514

ROD-PUSH

$5.49

$

Usually ships in 3-6 days

0

20

Toro 127-9015

TAPPET-VALVE

$9.49

$

Usually ships in 3-6 days

0

21

Toro 133-1522

PISTON

$46.99

$

Usually ships in 3-6 days

0

22

Toro 121-0313

CLIP-PIN, PISTON

$1.49

$

Usually ships in 3-6 days

0

23

Toro 121-4128

PIN-PISTON

$10.99

$

In Stock, only 1 left!

0

24

Toro 121-4123

CONNECTING ROD ASM

$29.99

$

Usually ships in 3-6 days

0

25

Toro 133-1521

SET-RING, PISTON

$23.99

$

Usually ships in 3-6 days

0

26

Toro 133-9867

COMPLETE HEAD ASM

$172.99

$

Usually ships in 3-6 days

0
