37798 (824 OE) - Toro 24" Power Max Snow Thrower (SN: 400000000 - 405866399) Main Frame and Auger Housing Assembly Parts Diagram

24" Power Max Snow Thrower

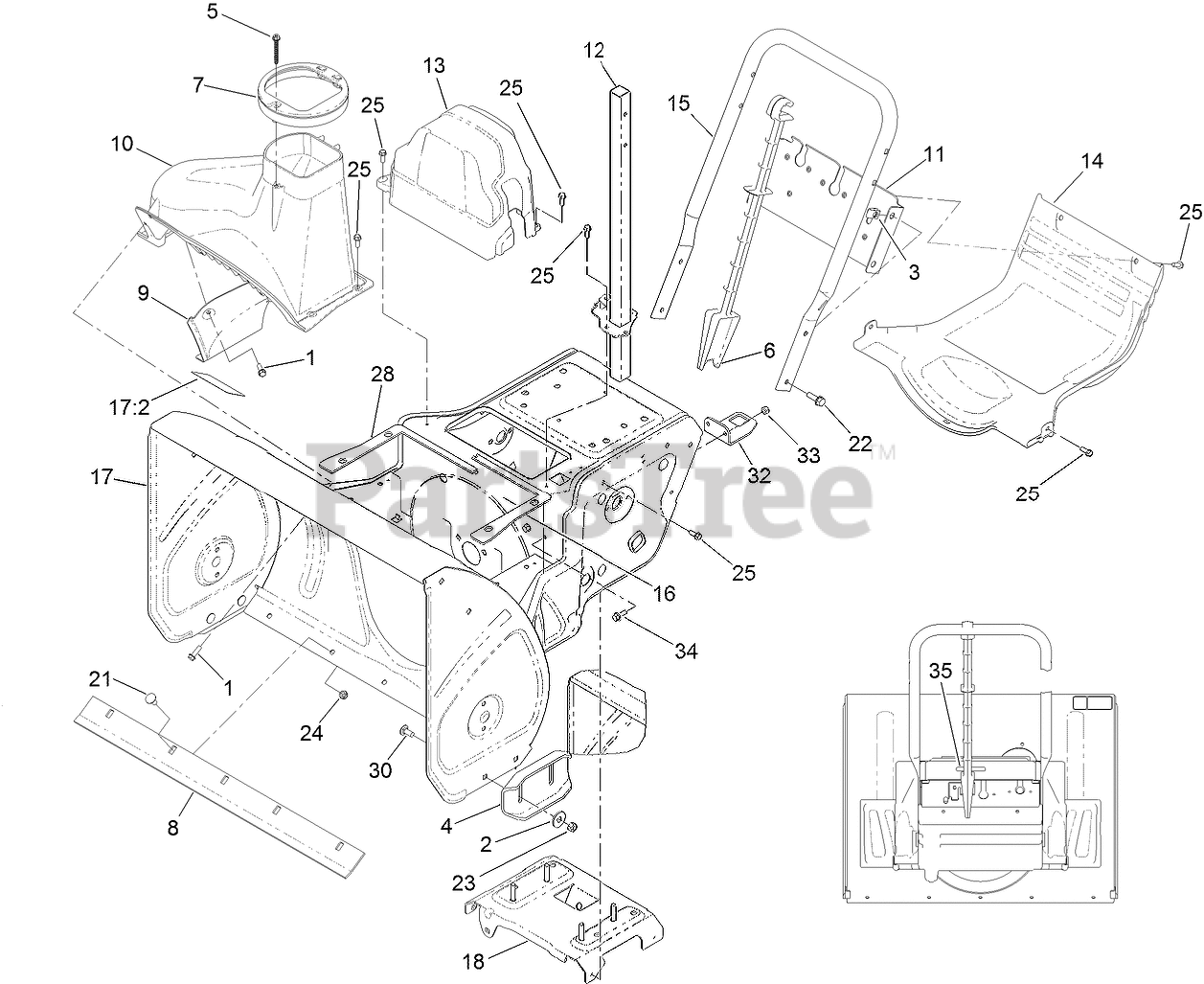

Main Frame and Auger Housing Assembly Parts Diagram

  • Title
1

Toro 46-8091

SCREW-HWH

$3.99

$

In Stock, Qty 20+

0

2

Toro 52-2861

WASHER

$1.49

$

In Stock, Qty 5

0

3

Toro 94-2413

NUT-U

$2.99

$

In Stock, Qty 20+

0

$21.99

$

In Stock, Qty 20+

0

5

Toro 114-3751

SCREW-HWH, PLASTITE

$1.99

$

In Stock, Qty 20+

0

6

Toro 121-6833

STICK-CLEANOUT

$17.99

$

In Stock, Qty 7

0

7

Toro 138-3608

GUIDE-CHUTE

$5.49

$

Usually ships in 3-6 days

0

8

Toro 119-7601-01

SCRAPER-24 INCH

$27.99

$

In Stock, Qty 7

0

9

Toro 120-7158-01

COVER-LINER

$11.99

$

Usually ships in 3-6 days

0

10

$100.99

$

In Stock, Qty 13

0

11

Toro 120-7161-01

BRACE-FRAME

$15.99

$

Usually ships in 3-6 days

0

12

Toro 137-3412-03

SUPPORT-CHUTE

$21.99

$

Usually ships in 3-6 days

0

13

Toro 120-7177

COVER-BELT

$14.99

$

Usually ships in 3-6 days

0

14

Toro 120-7178

COVER-LOWER

$26.99

$

In Stock, Qty 6

0

15

Toro 120-7179-03

HANDLE-LOWER
(Superseded to 140-3740-03)

$42.99

$

Usually ships in 3-6 days

0

16

Toro 120-7181

SEAL-HOUSING, LH

$2.49

$

Usually ships in 3-6 days

0

17

Toro 131-6468

FRAME
(Superseded to 139-3690)

$631.99

$

Usually ships in 3-6 days

0

17:2

Toro 121-6817

DECAL-DANGER, AUGER

$3.49

$

Usually ships in 3-6 days

0

18

Toro 136-7187

BRACE-FRAME

$47.99

$

Usually ships in 3-6 days

0

21

Toro 3230-18

SCREW-CARR

$5.49

$

In Stock, Qty 20+

0

22

Toro 3234-29

SCREW-HHF

$2.99

$

In Stock, Qty 20+

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 3296-47

NUT-LOCK, NI

$3.99

$

In Stock, Qty 20+

0

25

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

28

Toro 121-6841

SEAL-HOUSING, RH

$2.49

$

Usually ships in 3-6 days

0

30

Toro 3230-23

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

32

Toro 137-3410-03

BRACKET-POST, CHUTE

$4.99

$

Usually ships in 3-6 days

0

33

Toro 120-9678

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

34

Toro 137-3094

NUT-HEX

$1.49

$

In Stock, Qty 20+

0

35

Toro 133-8061

DECAL-WARNING

$1.49

$

Usually ships in 3-6 days

0
