37793 (824 OE) - Toro 24" Power Max Snow Thrower (SN: 400000000 - 999999999) ENGINE ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

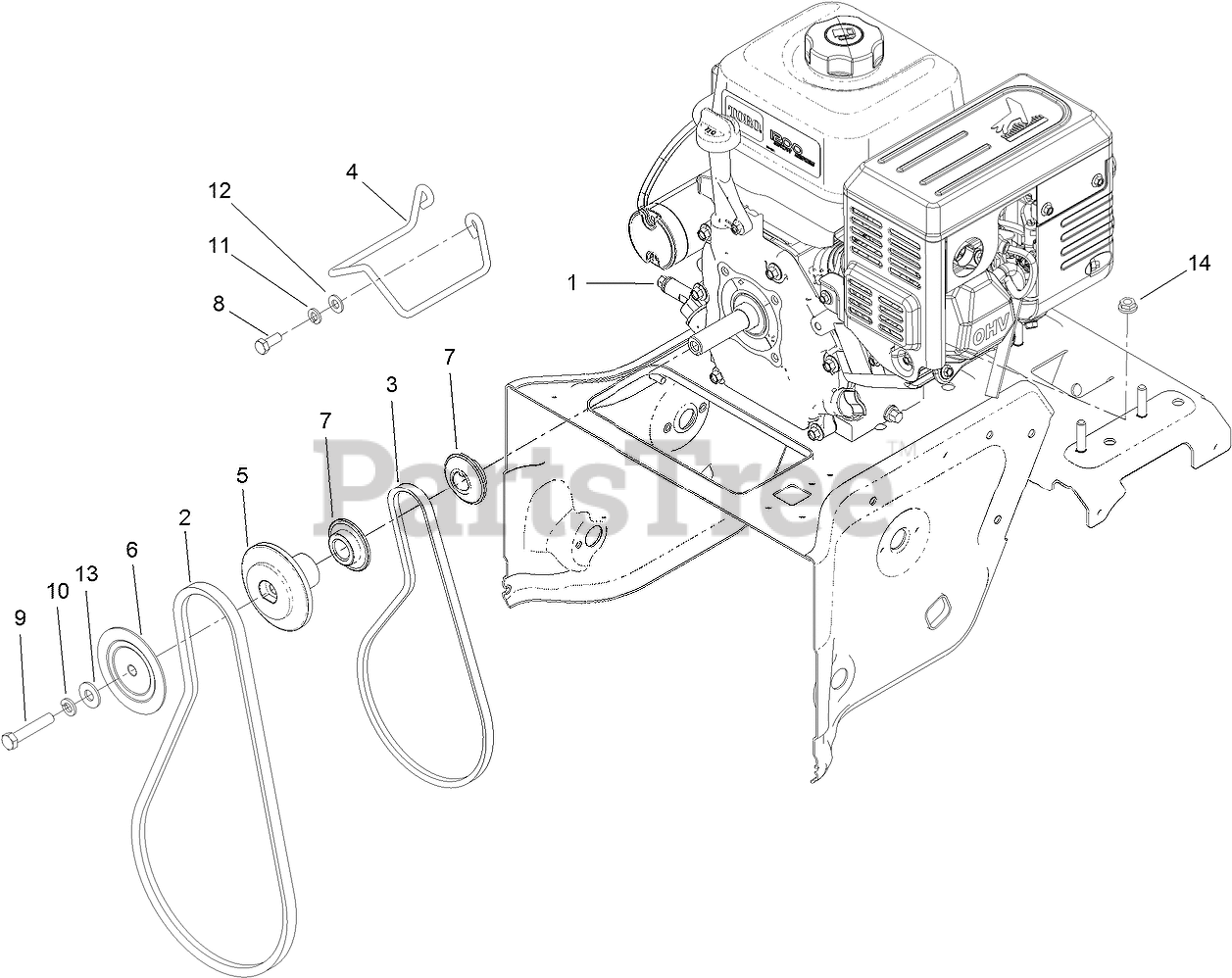

ENGINE ASSEMBLY Parts Diagram

  • Title

1

Toro 136-7752

ENGINE-G250FDS-1

$821.99

$

Usually ships in 3-6 days

0

2

Toro 120-3892

BELT-V

$26.99

$

In Stock, Qty 6

0

3

Toro 120-3893

BELT-V

$17.99

$

In Stock, only 1 left!

0

4

Toro 136-7156

GUIDE-BELT

$13.99

$

In Stock, only 1 left!

0

5

Toro 120-9283

PULLEY-AUGER, REAR

$38.99

$

Usually ships in 3-6 days

0

6

Toro 120-9284

PULLEY-AUGER, FRONT

$22.99

$

Usually ships in 3-6 days

0

7

Toro 121-6804

PULLEY-TRACTION

$18.99

$

Usually ships in 3-6 days

0

8

Toro 33114-020

SCREW-HH

$0.99

$

In Stock, Qty 13

0

9

Toro 120-2302

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
