37781 (826 OXE) - Toro 26" Power Max Snow Thrower (SN: 316000001 - 316999999) (2016) HANDLE ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

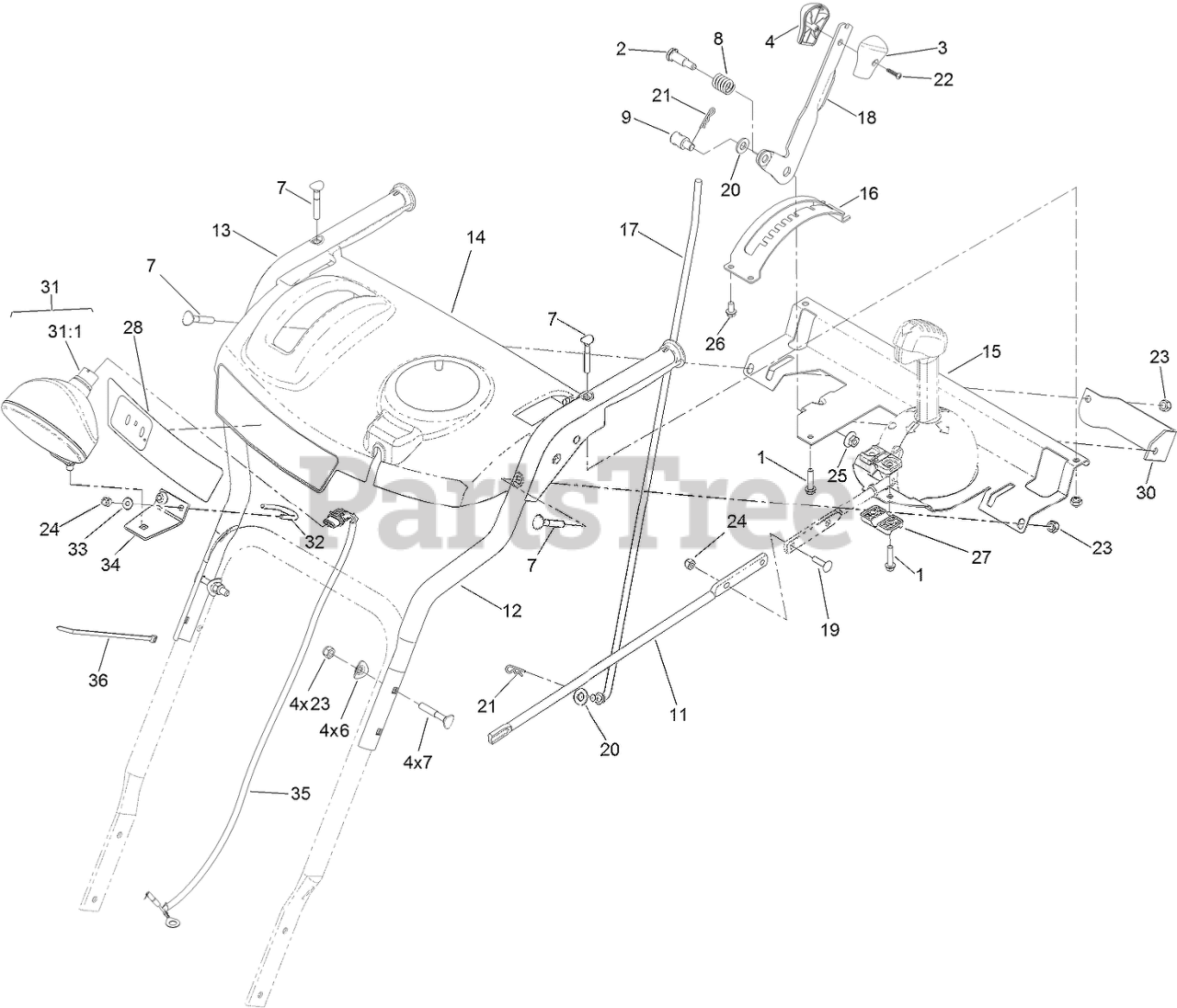

HANDLE ASSEMBLY Parts Diagram

  • Title
1

Toro 46-8092

SCREW-PLASTITE
(Superseded to 137-3101)

$1.49

$

In Stock, Qty 6

0

2

Toro 63-2650

SCREW-SHOULDER

$7.99

$

In Stock, only 1 left!

0

3

Toro 105-9999

KNOB-SHIFT, LH

$7.99

$

In Stock, only 4 left!

0

4

Toro 106-4423

KNOB-SHIFT, RH

$7.99

$

In Stock, only 4 left!

0

6

Toro 107-3844

WASHER

$1.49

$

In Stock, Qty 19

0

7

Toro 92-2260

SCREW-HANDLE

$3.99

$

In Stock, Qty 5

0

8

Toro 108-7313

SPRING-COMPRESSION
(Superseded to 136-7121)

$2.99

$

Usually ships in 3-6 days

0

9

Toro 110-3446

TRUNNION-ROD
(Superseded to 136-7193)

$7.99

$

In Stock, Qty 10

0

11

Toro 120-3881

ROD-CHUTE, FRONT

$20.99

$

In Stock, only 1 left!

0

12

Toro 120-7173-03

HANDLE-UPPER, LH

$42.99

$

Usually ships in 3-6 days

0

13

Toro 120-7174-03

HANDLE-UPPER, RH

$42.99

$

Usually ships in 3-6 days

0

14

Toro 120-7194

PANEL-CONTROL, MASTER

$46.99

$

Usually ships in 3-6 days

0

15

Toro 120-9251-03

SUPPORT-PANEL, CONTROL

$44.99

$

Usually ships in 3-6 days

0

16

Toro 120-9258-03

MOUNT-SELECTOR, SPEED

$5.99

$

Usually ships in 3-6 days

0

17

Toro 121-6829

ROD-SELECTOR, GEAR
(Superseded to 136-7163)

$18.99

$

In Stock, only 4 left!

0

18

Toro 121-1242-03

SELECTOR-SPEED

$11.99

$

In Stock, only 1 left!

0

19

Toro 3229-30

SCREW-CARR

$1.49

$

In Stock, Qty 20+

0

20

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 18

0

21

Toro 3290-307

PIN-COTTER
(Superseded to 1-806003)

$1.49

$

In Stock, Qty 20+

0

22

Toro 94-4496

SCREW-PPH

$1.49

$

In Stock, Qty 20+

0

23

Toro 3296-72

NUT-LOCK, NI

$2.99

$

In Stock, Qty 20+

0

24

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

25

Toro 32128-13

NUT-HF

$2.99

$

Usually ships in 3-6 days

0

26

Toro 46-8093

SCREW-PLASTITE

$1.49

$

Usually ships in 3-6 days

0

27

Toro 105-9987

SUPPORT-ROD

$8.49

$

In Stock, Qty 7

0

28

Toro 131-6470

DECAL-PANEL, CONTROL

$9.49

$

Usually ships in 3-6 days

0

30

Toro 120-2301-03

PLATE-SUPPORT, SHIFT

$6.49

$

Usually ships in 3-6 days

0

31

Toro 120-3074

HEADLAMP ASM

$66.99

$

Usually ships in 3-6 days

0

31:1

Toro 120-3075

LAMP-12 VOLT

$35.99

$

Usually ships in 3-6 days

0

32

Toro 107-3024

CLAMP
(Superseded to 136-7120)

$4.99

$

Usually ships in 3-6 days

0

33

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 20+

0

34

Toro 127-5961-03

BRACKET-LIGHT

$9.49

$

Usually ships in 3-6 days

0

35

Toro 130-9774

HARNESS-WIRE

$21.99

$

Usually ships in 3-6 days

0

36

Toro 614249

TIE-CABLE

$1.49

$

In Stock, Qty 6

0
