37780 (826 OE) - Toro 26" Power Max Snow Thrower (SN: 400000000 - 999999999) PULLEY AND BELLCRANK ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

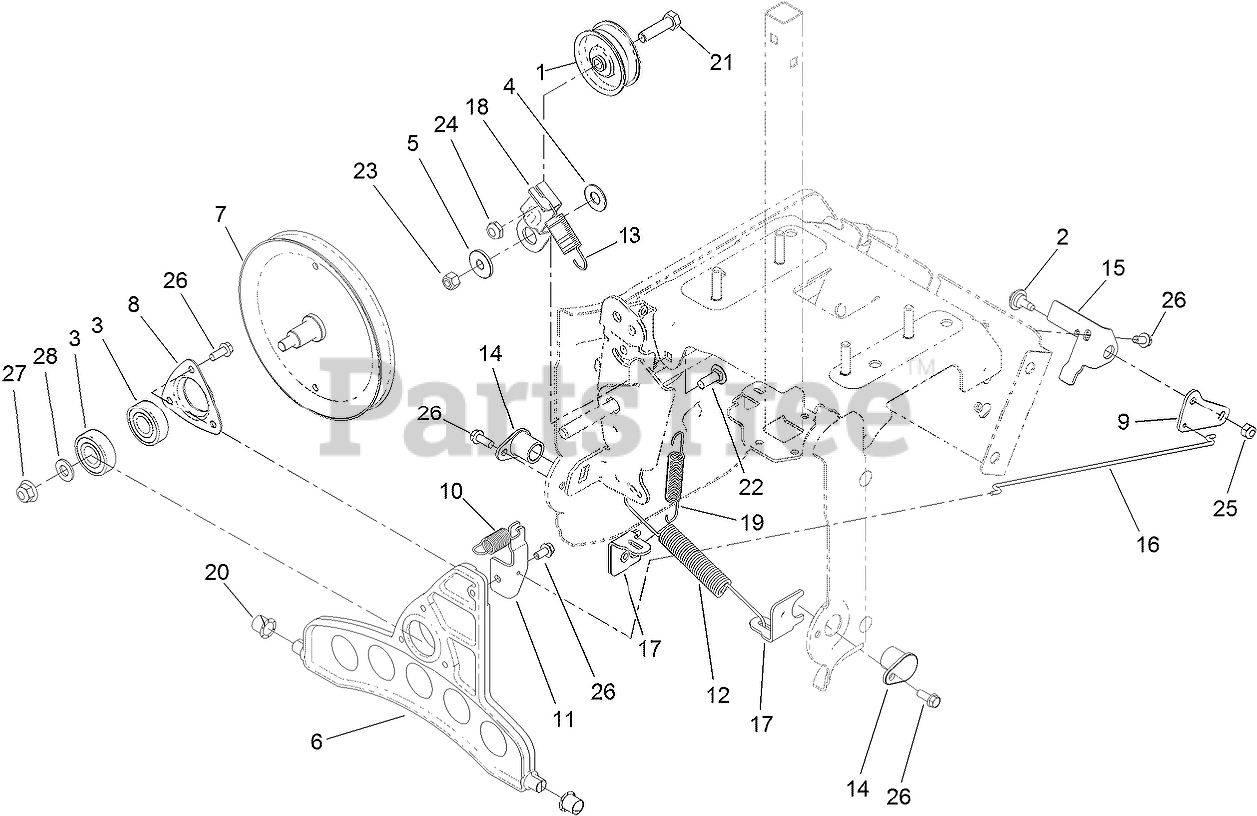

PULLEY AND BELLCRANK ASSEMBLY Parts Diagram

  • Title
1

Toro 3-4244

PULLEY-IDLER

$27.99

$

In Stock, only 2 left!

0

2

Toro 92-9698

SCREW-SHOULDER

$5.49

$

Usually ships in 3-6 days

0

3

Toro 38-7820

BEARING-BALL

$13.99

$

In Stock, Qty 18

0

4

Toro 25-5640

WASHER

$1.99

$

Usually ships in 3-6 days

0

5

Toro 117-7711

BUSHING-IDLER

$2.99

$

Usually ships in 3-6 days

0

6

Toro 119-7645

PLATE-WHEEL, FRICTION

$39.99

$

Usually ships in 3-6 days

0

7

Toro 119-7648

PULLEY-TRACTION
(Superseded to 136-7152)

$67.99

$

Usually ships in 3-6 days

0

8

Toro 119-7649

RETAINER-BEARING
(Superseded to 136-7124)

$1.99

$

Usually ships in 3-6 days

0

9

Toro 119-7670-03

BELLCRANK-DRIVE

$8.99

$

Usually ships in 3-6 days

0

10

Toro 119-7676

SPRING-EXTENSION
(Superseded to 136-7153)

$5.49

$

Usually ships in 3-6 days

0

11

Toro 119-7679

BRACKET-PLATE, TRACTION

$3.49

$

Usually ships in 3-6 days

0

12

Toro 120-3883

SPRING-EXTENSION

$6.99

$

In Stock, only 1 left!

0

13

Toro 120-3888

SPRING-EXTENSION

$4.49

$

Usually ships in 3-6 days

0

14

Toro 120-7156

BUSHING-PLATE, TRACTION

$8.99

$

In Stock, only 1 left!

0

15

Toro 120-7165-03

BRACKET-BELLCRANK

$10.99

$

Usually ships in 3-6 days

0

16

Toro 120-7166

LINK-DRIVE
(Superseded to 136-7155)

$3.49

$

In Stock, only 4 left!

0

17

Toro 120-9271

BRACKET-ANCHOR, SPRING

$3.49

$

Usually ships in 3-6 days

0

18

Toro 120-9273

ARM-IDLER, TRACTION

$11.99

$

Usually ships in 3-6 days

0

19

Toro 120-9275

SPRING-EXTENSION

$4.49

$

In Stock, only 1 left!

0

20

Toro 256-257

BUSHING-NYLINER

$3.99

$

In Stock, Qty 20+

0

21

Toro 323-29

SCREW-HH

$0.99

$

In Stock, Qty 6

0

22

Toro 3230-10

BOLT-CARR

$3.99

$

Usually ships in 3-6 days

0

23

Toro 3296-29

NUT-LOCK, NI

$2.49

$

In Stock, Qty 20+

0

24

Toro 3296-59

NUT-LOCK, NI
(Superseded to 121-4600)

$1.49

$

In Stock, Qty 17

0

25

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, only 3 left!

0

26

Toro 32144-85

SCREW-HWH

$1.99

$

In Stock, Qty 20+

0

27

Toro 104-8301

NUT-HF, NI

$1.49

$

In Stock, Qty 20+

0

28

Toro 3256-24

WASHER-FLAT

$0.99

$

In Stock, Qty 16

0
