37779 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 316000001 - 316999999) (2016) CRANKCASE ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

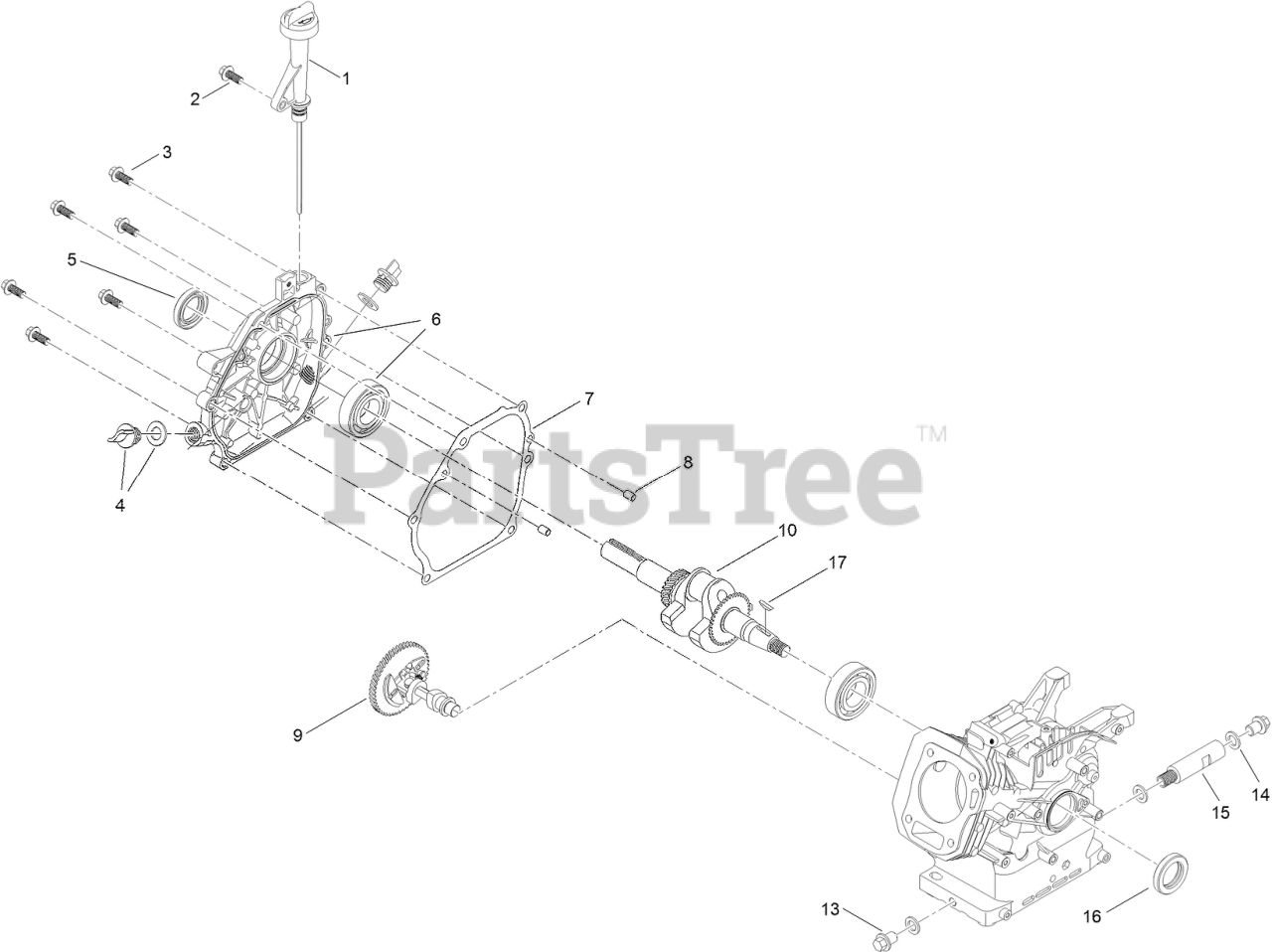

CRANKCASE ASSEMBLY Parts Diagram

  • Title

1

Toro 127-9126

OIL FILL ASM
(Superseded to 133-9837)

$19.99

$

Usually ships in 3-6 days

0

2

Toro 127-9123

SCREW-HHF

$1.99

$

Usually ships in 3-6 days

0

3

Toro 121-4114

SCREW-HHF

$2.49

$

Usually ships in 3-6 days

0

4

Toro 127-9099

OIL CAP ASM

$7.99

$

Usually ships in 3-6 days

0

5

Toro 121-0209

SEAL-OIL

$15.99

$

Usually ships in 3-6 days

0

6

Toro 127-9385

CRANKCASE COVER ASM

$

$

Not available

7

Toro 121-0105

GASKET-COVER, CRANKCASE

$15.99

$

In Stock, only 2 left!

0

8

Toro 121-0054

PIN-DOWEL

$1.99

$

Usually ships in 3-6 days

0

9

Toro 127-9377

CAMSHAFT
(Superseded to 139-0733)

$52.99

$

Usually ships in 3-6 days

0

10

Toro 127-9496

CRANKSHAFT

$148.99

$

Usually ships in 3-6 days

0

13

Toro 121-0030

SCREW-HHF

$3.49

$

Usually ships in 3-6 days

0

14

Toro 121-0048

WASHER-PLAIN

$1.49

$

In Stock, only 2 left!

0

15

Toro 127-9104

TUBE-DRAIN, OIL

$12.99

$

Usually ships in 3-6 days

0

16

Toro 121-0208

SEAL-OIL
(Superseded to 133-9864)

$13.99

$

Usually ships in 3-6 days

0

17

Toro 120-4320

KEY-WOODRUFF

$3.49

$

Usually ships in 3-6 days

0
