37779 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 316000001 - 316999999) (2016) BLOWER HOUSING AND SHROUDS ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

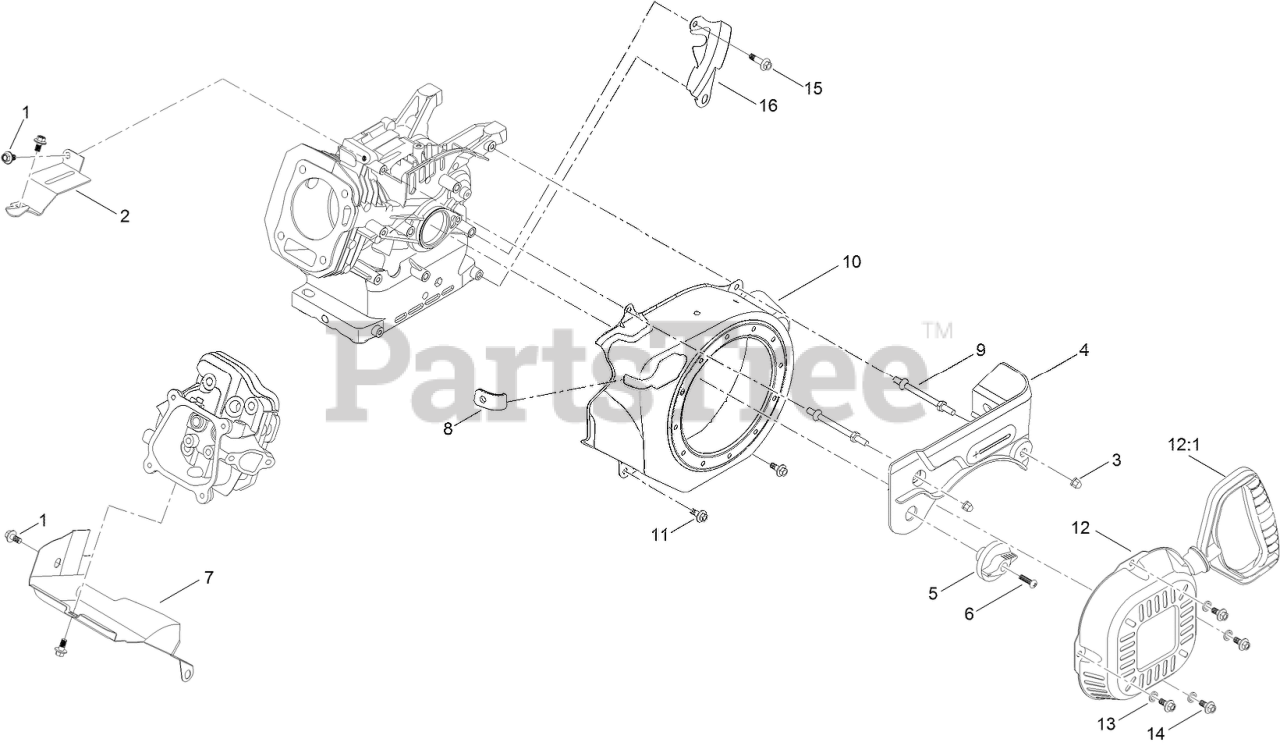

BLOWER HOUSING AND SHROUDS ASSEMBLY Parts Diagram

  • Title

1

Toro 121-0118

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

2

Toro 127-9097

BAFFLE

$11.99

$

Usually ships in 3-6 days

0

3

Toro 127-9383

NUT-ACORN

$3.49

$

Usually ships in 3-6 days

0

4

Toro 127-9116

PANEL-CONTROL

$18.99

$

Usually ships in 3-6 days

0

5

Toro 121-0268

KNOB-VALVE, FUEL

$8.49

$

In Stock, Qty 5

0

6

Toro 121-0305

SCREW-BHP

$1.49

$

In Stock, Qty 17

0

7

Toro 127-9096

SHROUD-LOWER

$11.99

$

Usually ships in 3-6 days

0

8

Toro 127-9107

BLOCK-RUBBER

$2.99

$

Usually ships in 3-6 days

0

9

Toro 127-9110

STUD-MOUNT

$5.99

$

Usually ships in 3-6 days

0

10

Toro 127-9108

SHROUD-BLOWER

$52.99

$

Usually ships in 3-6 days

0

11

Toro 121-0294

SCREW-HHF

$1.99

$

In Stock, only 4 left!

0

12

Toro 127-9109

RECOIL STARTER ASM

$66.99

$

Usually ships in 3-6 days

0

12:1

Toro 121-0287

HANDLE-RECOIL

$13.99

$

In Stock, only 1 left!

0

13

Toro 127-9380

WASHER-PLAIN

$1.99

$

Usually ships in 3-6 days

0

14

Toro 127-9031

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

15

Toro 120-4454

SCREW-HHF

$1.49

$

Usually ships in 3-6 days

0

16

Toro 127-9121

SHIELD-FLYWHEEL

$10.99

$

Usually ships in 3-6 days

0
