37775 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 315000001 - 315999999) (2015) 24 INCH AUGER GEARCASE ASSEMBLY NO. 120-3859 Parts Diagram

24" Power Max Snow Thrower

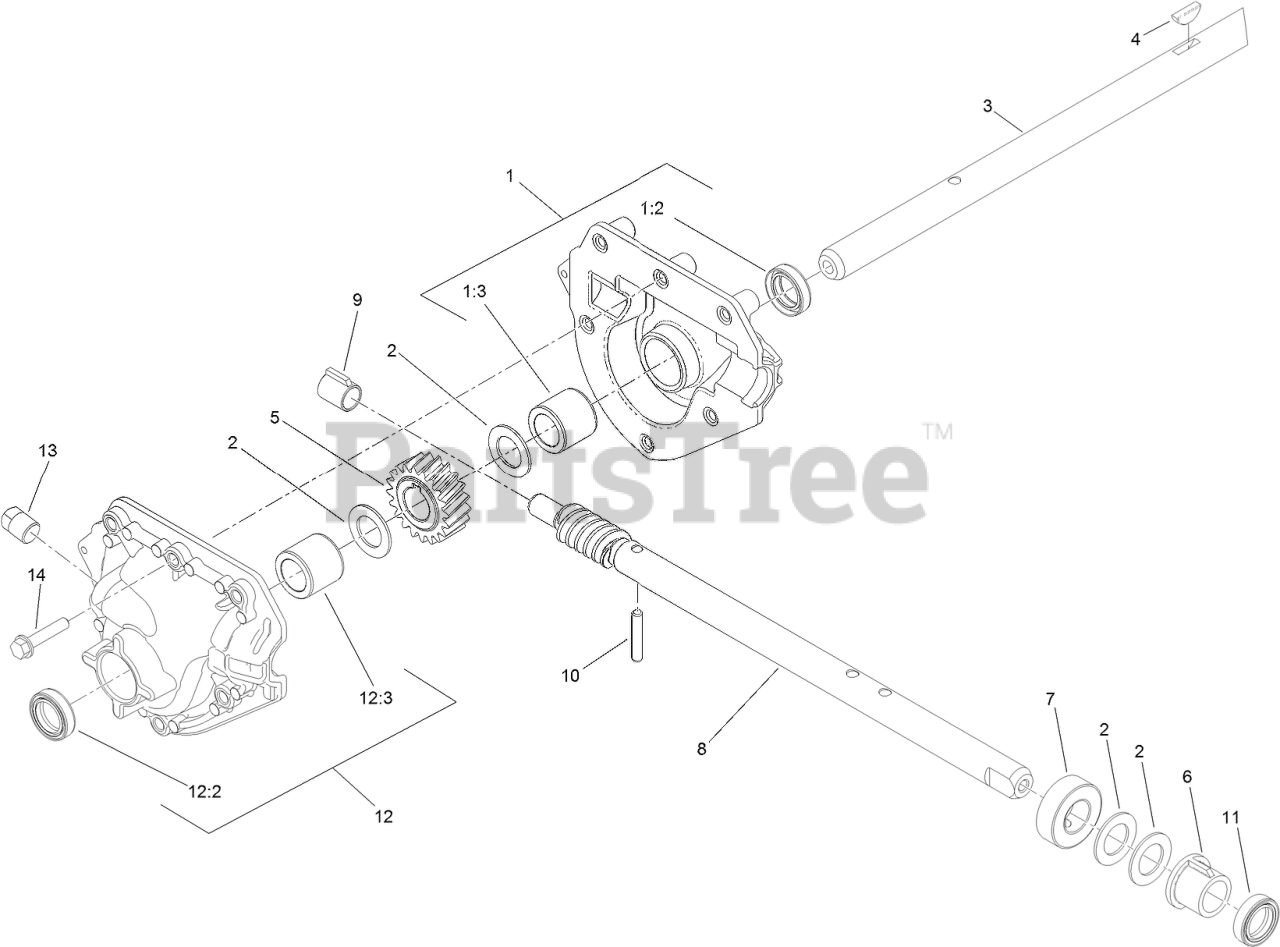

24 INCH AUGER GEARCASE ASSEMBLY NO. 120-3859 Parts Diagram

  • Title

1

Toro 121-1209

RH AUGER GEARCASE ASM

$49.99

$

In Stock, only 1 left!

0

1:2

Toro 121-6634

SEAL-SHAFT

$4.49

$

Usually ships in 3-6 days

0

1:3

Toro 120-9269

BUSHING-SLEEVE

$4.99

$

Usually ships in 3-6 days

0

2

Toro 119-7640

WASHER-THRUST

$3.49

$

In Stock, Qty 12

0

3

Toro 120-3858

SHAFT-OUTPUT, AUGER

$61.99

$

In Stock, only 1 left!

0

4

Toro 3257-5

KEY-WOODRUFF

$5.99

$

In Stock, only 1 left!

0

5

Toro 119-1576

GEAR-HELICAL, 20 TOOTH

$30.99

$

Usually ships in 3-6 days

0

6

Toro 119-7635

BUSHING-INPUT

$12.99

$

Usually ships in 3-6 days

0

7

Toro 119-7636

COLLAR-THRUST

$5.99

$

In Stock, only 1 left!

0

8

Toro 121-1234

SHAFT-IMPELLER, ROLLED

$103.99

$

Usually ships in 3-6 days

0

9

Toro 62-1150

BUSHING-WORM

$7.99

$

In Stock, only 2 left!

0

10

Toro 107-8899

PIN-DOWEL

$2.99

$

In Stock, only 4 left!

0

11

Toro 121-6634

SEAL-SHAFT

$4.49

$

Usually ships in 3-6 days

0

12

Toro 121-1210

LH AUGER GEARCASE ASM

$49.99

$

In Stock, only 1 left!

0

12:2

Toro 121-6634

SEAL-SHAFT

$4.49

$

Usually ships in 3-6 days

0

12:3

Toro 120-9269

BUSHING-SLEEVE

$4.99

$

Usually ships in 3-6 days

0

13

Toro 121-6832

PLUG-PIPE, SQH

$1.49

$

Usually ships in 3-6 days

0

14

Toro 108-4862

SCREW-HWHTF

$3.49

$

In Stock, only 2 left!

0
