37771 (726 OE) - Toro 26" Power Max Snow Thrower (SN: 314000001 - 314999999) (2014) ENGINE ASSEMBLY Parts Diagram

26" Power Max Snow Thrower

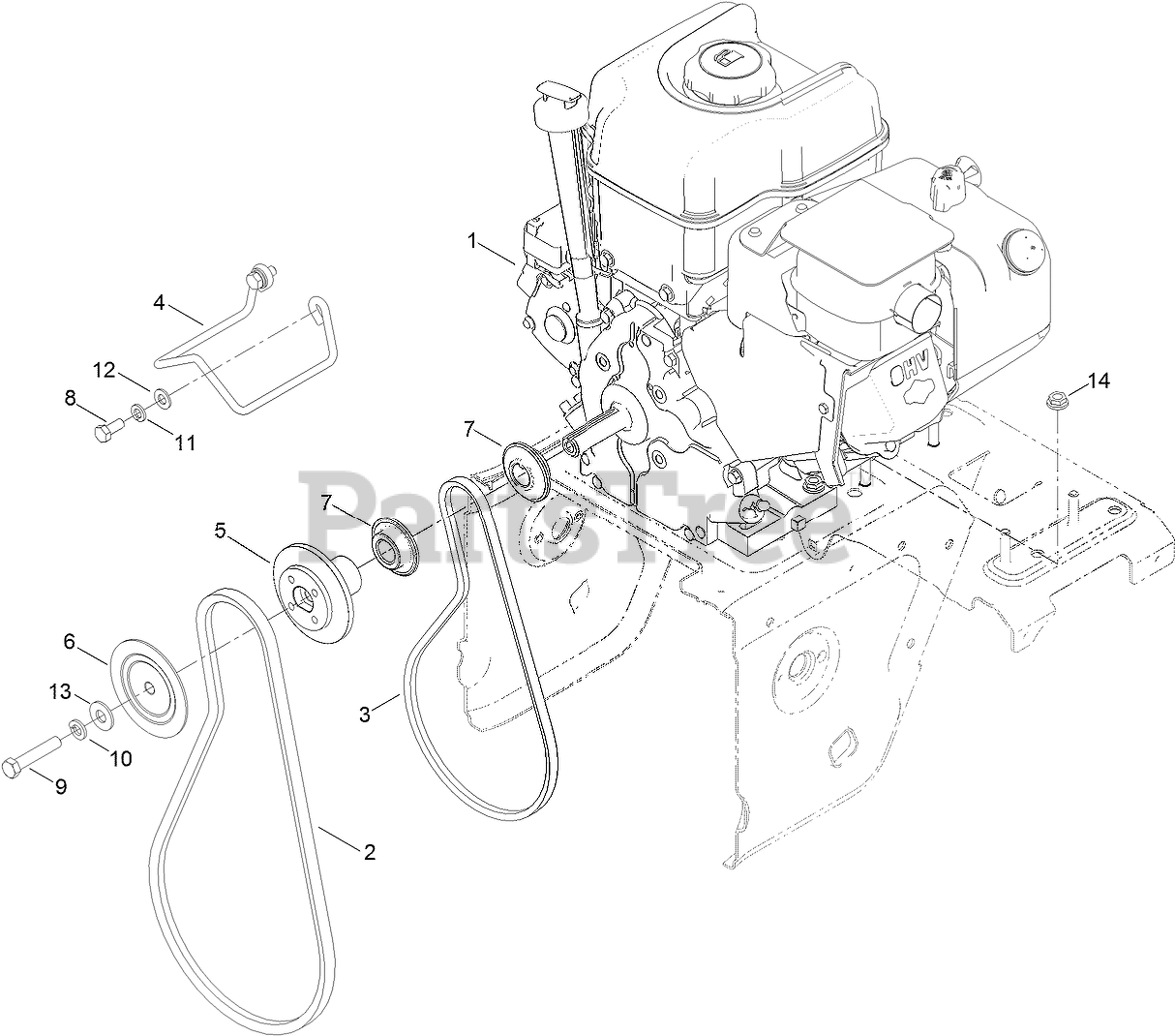

ENGINE ASSEMBLY Parts Diagram

  • Title

1

ENGINE-BRIGGS, 12D1050172F8

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS, 12D1050172F8

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

2

Toro 120-3892

BELT-V

$26.99

$

In Stock, Qty 5

0

3

Toro 120-3893

BELT-V

$17.99

$

In Stock, Qty 7

0

4

Toro 120-7196

GUIDE-BELT
(Superseded to 136-7156)

$14.99

$

Usually ships in 3-6 days

0

5

Toro 120-9283

PULLEY-AUGER, REAR

$38.99

$

Usually ships in 3-6 days

0

6

Toro 120-9284

PULLEY-AUGER, FRONT

$22.99

$

Usually ships in 3-6 days

0

7

Toro 121-6804

PULLEY-TRACTION

$18.99

$

Usually ships in 3-6 days

0

8

Toro 3210-3

SCREW-HH

$6.49

$

Usually ships in 3-6 days

0

9

Toro 120-2302

SCREW-HH

$2.99

$

Usually ships in 3-6 days

0

10

Toro 3253-21

WASHER-LOCK

$0.99

$

In Stock, Qty 10

0

11

Toro 3253-4

WASHER-LOCK

$0.99

$

In Stock, Qty 20+

0

12

Toro 3256-23

WASHER-PLAIN

$2.49

$

In Stock, Qty 20+

0

13

Toro 3256-4

WASHER-FLAT

$1.99

$

In Stock, Qty 20+

0

14

Toro 32128-20

NUT-HF

$1.49

$

In Stock, Qty 20+

0
