37770 (724 OE) - Toro 24" Power Max Snow Thrower (SN: 314000001 - 314999999) (2014) GEARBOX, AUGER AND IMPELLER ASSEMBLY Parts Diagram

24" Power Max Snow Thrower

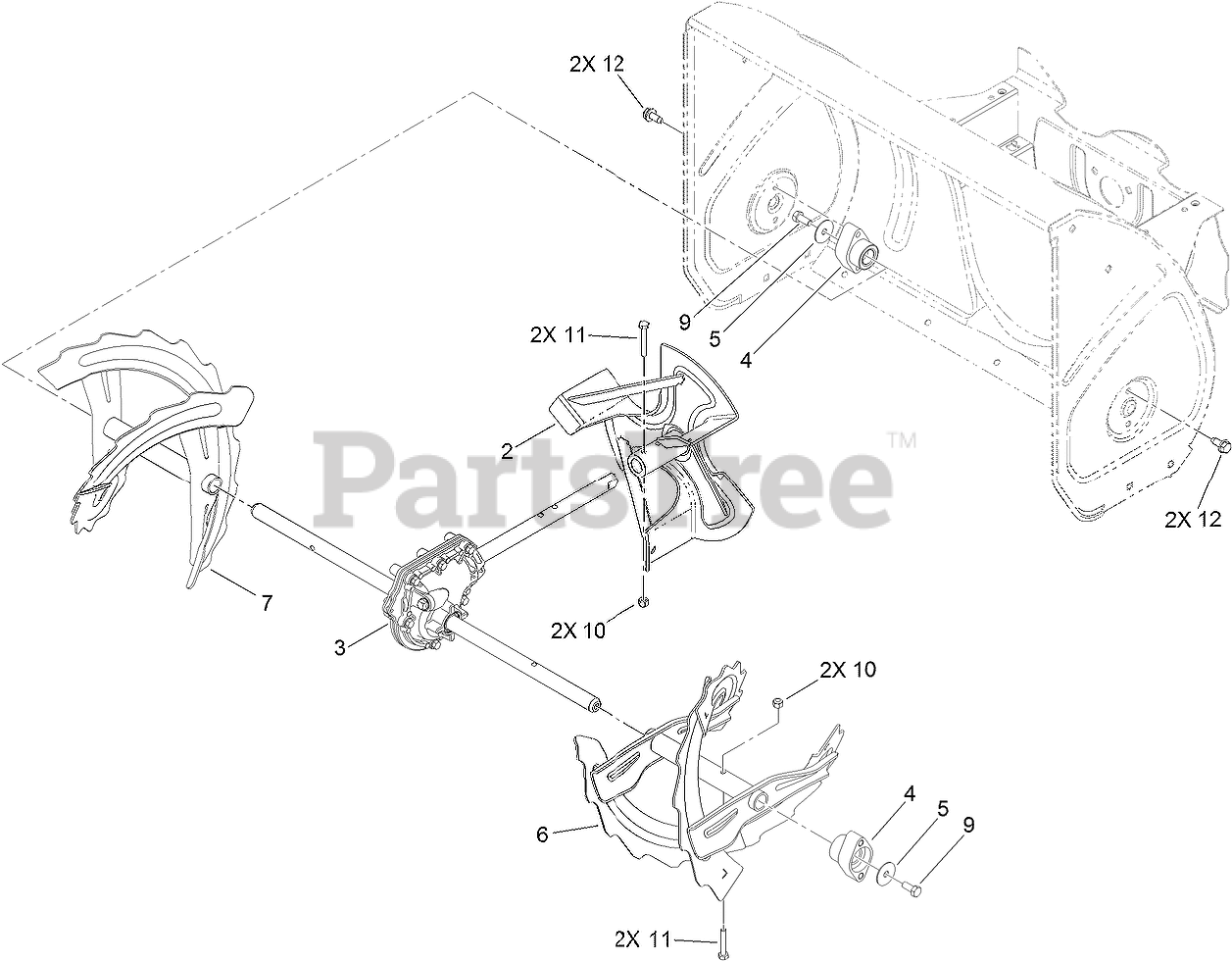

GEARBOX, AUGER AND IMPELLER ASSEMBLY Parts Diagram

  • Title
2

Toro 119-7612-03

IMPELLER ASM

$117.99

$

Usually ships in 3-6 days

0

3

Toro 120-3859

GEARCASE ASM

$421.99

$

Usually ships in 3-6 days

0

4

Toro 120-3860

BEARING-AUGER

$26.99

$

In Stock, only 2 left!

0

5

Toro 120-3862

WASHER-THRUST

$1.49

$

In Stock, Qty 19

0

6

Toro 120-9287-03

LH AUGER ASM

$117.99

$

Usually ships in 3-6 days

0

7

Toro 120-9290-03

RH AUGER ASM

$117.99

$

Usually ships in 3-6 days

0

9

Toro 322-3

SCREW-HH

$0.99

$

In Stock, Qty 13

0

10

Toro 3296-42

NUT-LOCK, NI

$0.99

$

In Stock, Qty 12

0

11

Toro 321-10

SCREW-HH

$1.49

$

In Stock, Qty 20+

0

12

Toro 32144-70

SCREW-HWHTF

$2.99

$

In Stock, Qty 20+

0
