376 (190-376-100) - Cub Cadet 54" Snow Blade Pivot Bracket Parts Diagram

54" Snow Blade

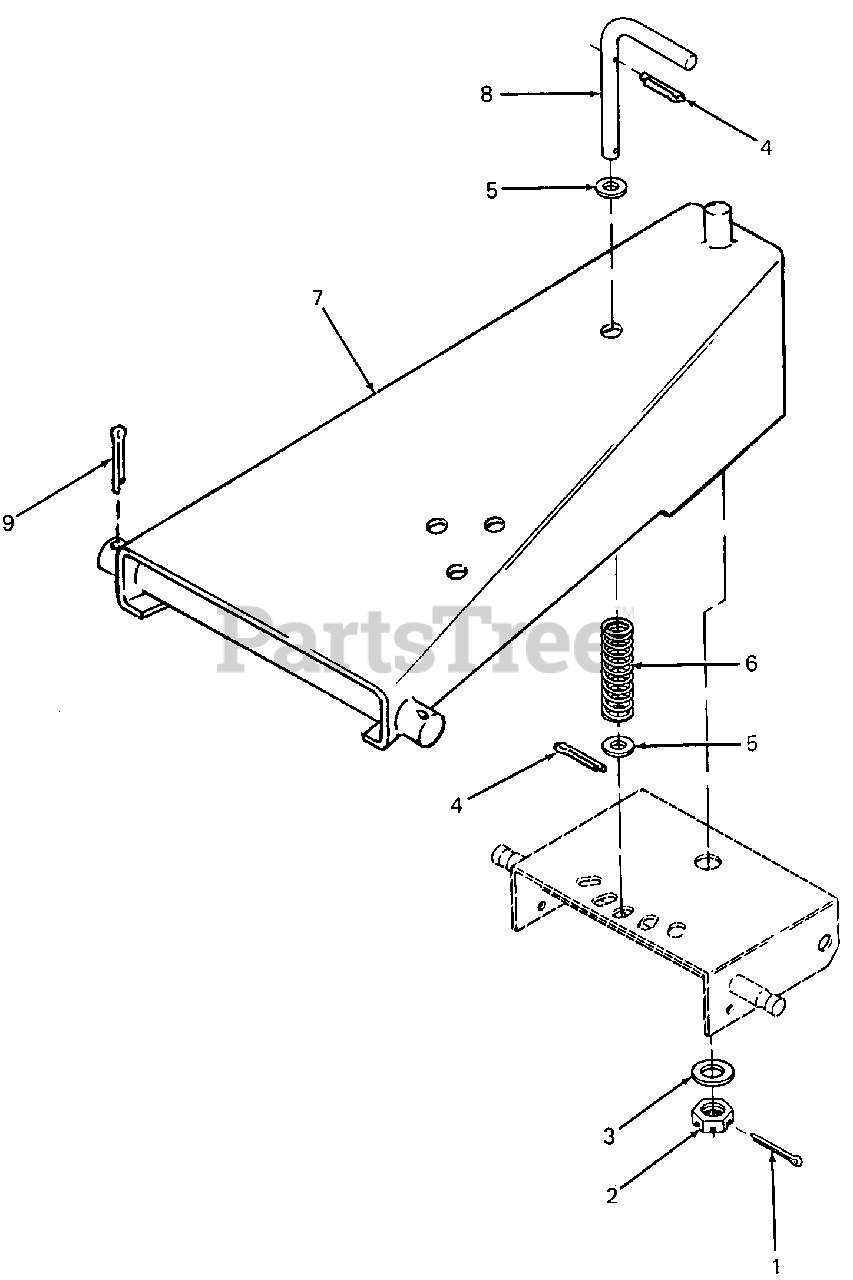

Pivot Bracket Parts Diagram

  • Title
1

Cub Cadet 714-3021

Pin, Cotter, 1/8 Dia X 1-5/8 Lg
(Superseded to 914-3021)

$

$

Not available

2

Cub Cadet 712-3047

Nut, Hex Castle, 3/4-16 GR5
(Superseded to 712-0359)

$11.99

$

In Stock, only 1 left!

0

3

Cub Cadet 736-3023

Washer, Flat, .812 X 1.47 X .108 Thk
(Superseded to 736-0134)

$4.49

$

In Stock, Qty 10

0

4

Cub Cadet 714-0121

Pin, Cotter, 5/32 Dia X 1.0 Lg
(Superseded to 914-0121)

$

$

Not available

5

Cub Cadet 736-0272

Washer, Flat, .510 X 1.0 X .060

$4.99

$

In Stock, Qty 20+

0

6

Cub Cadet 732-3035

Spring, Compression
(Superseded to 932-3035)

$11.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 703-0575

Frame Assy, Main

Variations

Cub Cadet 703-0575-0498

FRAME-BLADE - OLD CUB YELLOW (0498)

$

$

Not available

$

$

8

Cub Cadet 747-3085

Pin, Angling

$

$

Not available

9

Cub Cadet 714-0162

Pin, Cotter, 5/32 Dia X 1-1/4 Lg

$4.99

$

In Stock, Qty 20+

0
