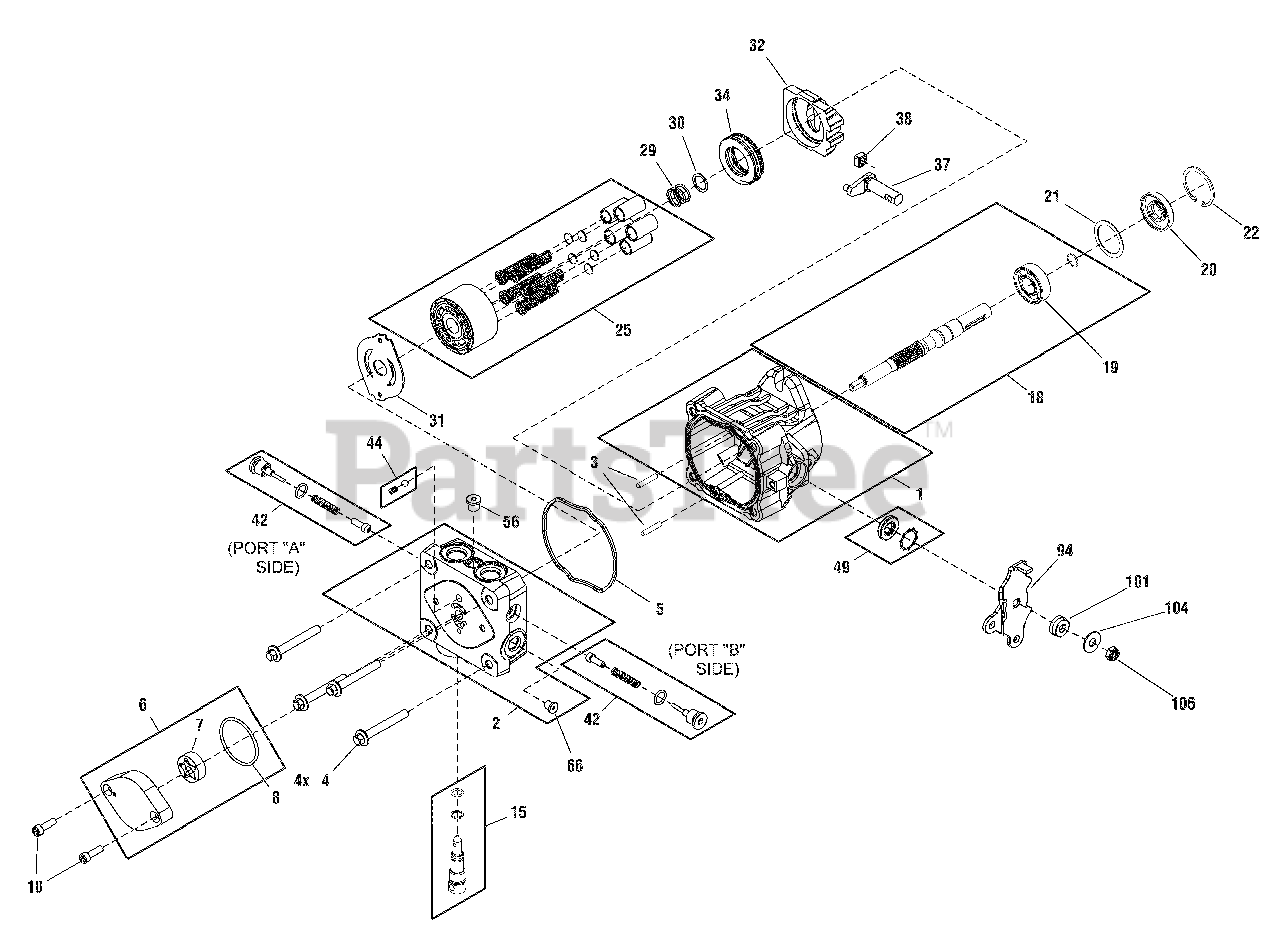

375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp Hydraulic Pump SERVICE PARTS - BDP/PG Series Parts Diagram

50" Zero-Turn Mower, 20hp

Hydraulic Pump SERVICE PARTS - BDP/PG Series Parts Diagram

  • Title

1

Snapper 5023405

Housing Kit

$

$

Not available

2

Snapper 5023406

End Cap Kit (W/ Poppets, Standard Charge)
(Superseded to 5023406SM)

Note: (Includes Ref. No. 66)

$457.99

$

Usually ships in 2-12 days

0

3

Snapper 5023407

Straight Headless Pin
(Superseded to 5023407SM)

$23.99

$

Usually ships in 2-12 days

0

4

Snapper 5023408

Hex Flange Bolt M8-1.25 X 60mm LG
(Superseded to 5023408SM)

$22.99

$

Usually ships in 2-12 days

0

5

Snapper 5023409

Housing O-Ring
(Superseded to 5023409SM)

$29.99

$

In Stock, only 1 left!

0

6

Snapper 5023410

Charge Pump Kit (STD)
(Superseded to 5023410SM)

Note: (Includes Ref. Nos. 7 & 8)

$219.99

$

Usually ships in 2-12 days

0

7

STD Gerotor Assy (11 cu. In/rev D-Drive)

$

$

Not available

8

O-Ring

$

$

Not available

10

Snapper 5023411

Socket Head Screw M6 x 1.0-20mm Lg (STD Charge)
(Superseded to 5023411SM)

$5.99

$

Usually ships in 2-12 days

0

15

Snapper 5023412

Bypass Valve Kit (Blank)
(Superseded to 5023412SM)

$75.99

$

Usually ships in 2-12 days

0

18

Snapper 5023413

Pump Shaft Kit (Blind 15mm Keyway W/ Std Charge)
(Superseded to 5023413SM)

Note: (Includes Ref. No. 19)

$219.99

$

Usually ships in 2-12 days

0

19

Ball Bearing 17 x 40 x 12

$

$

Not available

20

Snapper 5023414

Lip Seal 17 x 40 x 7 PTC
(Superseded to 5023414SM)

$18.99

$

In Stock, only 1 left!

0

21

Snapper 5023415

Spacer
(Superseded to 5023415SM)

$9.49

$

Usually ships in 2-12 days

0

22

Snapper 5023416

Retaining Ring
(Superseded to 5023416SM)

$2.99

$

Usually ships in 2-12 days

0

25

Snapper 5023417

Cylinder Block Kit
(Superseded to 5023417SM)

$225.99

$

Usually ships in 2-12 days

0

29

Snapper 5023418

Block Spring
(Superseded to 5023418SM)

$23.99

$

Usually ships in 2-12 days

0

30

Snapper 5023419

Block Thrust Washer
(Superseded to 5023419SM)

$13.99

$

Usually ships in 2-12 days

0

31

Snapper 5023420

Valve Plate (Steel N-Tec:Black)
(Superseded to 5023420SM)

$62.99

$

Usually ships in 2-12 days

0

32

Snapper 5023421

Swashplate
(Superseded to 5023421SM)

$100.99

$

Usually ships in 2-12 days

0

34

Snapper 5023422

Ball Thrust Bearing
(Superseded to 5023422SM)

$41.99

$

Usually ships in 2-12 days

0

37

Snapper 5023423

Trunnion Arm, Tapered Square
(Superseded to 5023423SM)

$

$

Not available

38

Snapper 5023424

Slot Guide
(Superseded to 5023424SM)

$18.99

$

Usually ships in 2-12 days

0

42

Snapper 5023425

Check Valve Kit (0.031"Orifice)
(Superseded to 5023425SM)

$78.99

$

In Stock, only 2 left!

0

44

Snapper 5023426

Charge Relief Valve Kit (1/4" Plastic Ball & Spring)
(Superseded to 5023426SM)

$15.99

$

In Stock, only 1 left!

0

49

Snapper 5023427

Trunnion Seal / Retainer Kit
(Superseded to 5023427SM)

$29.99

$

Usually ships in 2-12 days

0

56

Snapper 5023428

Straight Thread Plug
(Superseded to 5023428SM)

$

$

Not available

66

PLUG, 5/16" SAE

$

$

Not available

94

Arm, Control

$

$

Not available

101

Spacer RTN

$

$

Not available

104

Washer, .34 x .88 x .06

$

$

Not available

106

Nut, Hex Lock 5/16-24 UNF

$

$

Not available

110

Snapper 5023430

Kit, RTN, STD
(Superseded to 5023430SM)

Note: (Includes Ref. Nos. 94, 98, 100, 101, 102, 103, 104, 104, 105, 106 & 107)

$65.99

$

Usually ships in 2-12 days

0

111

Snapper 5023429

Kit, Overhaul Seal
(Superseded to 5023429SM)

Note: (Not Shown)

$

$

Not available
