375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp 50" Mower Deck - Roller Group (S/N: 2013371638 & Below) Parts Diagram

50" Zero-Turn Mower, 20hp

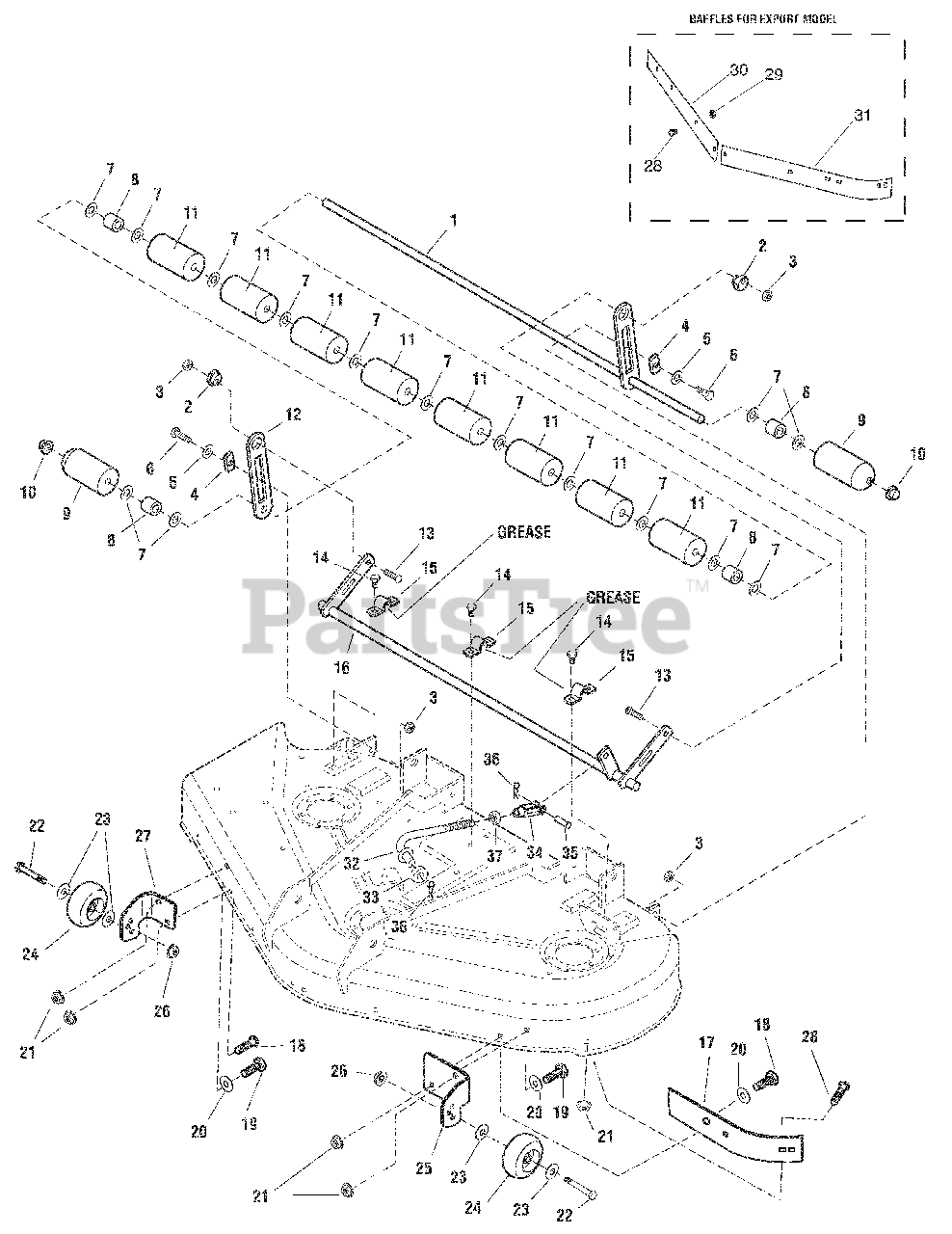

50" Mower Deck - Roller Group (S/N: 2013371638 & Below) Parts Diagram

  • Title

1

Snapper 5048746D

WELD, SHAFT, ROLLER,50

$

$

Currently unavailable

2

Snapper 1704082

NUT, HEX ADJUSTING .990DIA .687TH PM YEL
(Superseded to 1704082SM)

$5.49

$

In Stock, Qty 16

0

3

Snapper 2860681

NUT, HEX TOP LOCK SPIRAL K FLNG, 3/8-16 YEL
(Superseded to 2860681SM)

$4.49

$

In Stock, Qty 7

0

4

Snapper 1677507

SLIDE, .803 X 1.7
(Superseded to 1677507SM)

$6.99

$

In Stock, only 3 left!

0

5

Snapper 1924361

WASHER, 0500 (0.53IDX1.25X.08THK) BLK
(Superseded to 703451)

$4.49

$

In Stock, Qty 20+

0

6

Snapper 2172622

BOLT, SHLDR, 3/8-16 1.34LG .50SH G5 BLK
(Superseded to 2172622SM)

$6.99

$

In Stock, Qty 20+

0

7

Snapper 1924366

WASHER, 0.625 (0.66IDX1.12X.11THK) BLK
(Superseded to 703580)

$4.49

$

In Stock, Qty 20+

0

8

Snapper 1709195

SPACER, .876 OD X .666 ID X 1.25 LG
(Superseded to 1709195SM)

$5.99

$

In Stock, Qty 20+

0

9

Snapper 1722036

ROLLER, ROUNDED
(Superseded to 1722036SM)

$7.99

$

In Stock, Qty 20+

0

10

Snapper 1960520

NUT, PUSH FOR .625 DIA STUD CAPPED BLK
(Superseded to 1960520SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 1668513

ROLLER
(Superseded to 1668513SM)

$10.99

$

In Stock, Qty 20+

0

12

Snapper 5049040D

BAR, ROLLER

$

$

Currently unavailable

13

Snapper 1931352

BOLT, RD HD SH SQ NK 3/8-16X1.500 G5 BLK
(Superseded to 1931352SM)

$4.49

$

In Stock, Qty 5

0

14

Snapper 1664847

CAPSCREW, Hex Washer Head Taptite, 5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

15

Snapper 1665374

STRAP, Rocker Shaft
(Superseded to 1761690HYP)

$7.99

$

Usually ships in 2-12 days

0

16

Snapper 5401111D

WELD, SHAFT, DECK LIFT, 50"

$

$

Currently unavailable

17

Snapper 1724538A

SHORT BLOWOUT BAFFLE BLACK
(Superseded to 1724538ASM)

$45.99

$

In Stock, only 1 left!

0

18

Snapper 5025145X8

BOLT, 5/16-18 X 1", CARRIAGE
(Superseded to 5025145X8SM)

$3.99

$

In Stock, Qty 9

0

19

Snapper 5025011X8

CAPSCREW, HEX HEAD, 5/16-18 X 1
(Superseded to 5025011X8FS)

$3.49

$

In Stock, Qty 16

0

20

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

21

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0

22

Snapper 2108765

BOLT, WHEEL 3/8-16X2.781 .750 THRD YELLOW
(Superseded to 2108765SM)

$6.49

$

In Stock, Qty 20+

0

23

Snapper 80003590

WASHER, 0500 (0.51IDX0.87ODX.06THK) BLK
(Superseded to 703128)

$3.49

$

In Stock, Qty 20+

0

24

Snapper 1714760

GAUGE WHEEL
(Superseded to 1714760SM)

$6.49

$

In Stock, Qty 20+

0

25

Snapper 5049017D

BRACKET, GAUGE WHEEL, LH
(Superseded to 1719852ASM)

$26.99

$

In Stock, only 1 left!

0

26

Snapper 5025394

NUT, 3/8-16 HEX NYLON FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

27

Snapper 5049018D

BRACKET, GAUGE WHEEL, RH
(Superseded to 1719853ASM)

$29.99

$

In Stock, only 1 left!

0

28

Snapper 5025145X6

BOLT, 5/16-18 X 3/4", CARRIAGE
(Superseded to 5025145X6SM)

$3.99

$

In Stock, Qty 5

0

29

Snapper 5025057

NUT, 5/16 - 18 HEX NYLON LOCK
(Superseded to 5025057FS)

$3.99

$

Usually ships in 2-12 days

0

30

Snapper 1716869A

BLOWOUT BAFFLE, RH 50" MOWER - BLACK
(Superseded to 1716869ASM)

Note: (CE/Export Only)

$192.99

$

Usually ships in 2-12 days

0

31

Snapper 1716870A

BLOWOUT BAFFLE, LH 50" MOWER - BLACK
(Superseded to 1716870ASM)

Note: (CE/Export Only)

$164.99

$

In Stock, only 1 left!

0

32

Snapper 5100275

ROD, DECK LIFT LINKAGE
(Superseded to 5100275SM)

$33.99

$

Usually ships in 2-12 days

0

33

Snapper 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

In Stock, Qty 6

0

34

Snapper 5023174

CLEVIS, 1/2-20, STEEL
(Superseded to 5023174SM)

$16.99

$

Usually ships in 2-12 days

0

35

Snapper 5025328X12

PIN, CLEVIS, 1/2 X 1 1/2, YZP
(Superseded to 5025328X12SM)

$4.99

$

In Stock, only 4 left!

0

36

Snapper 1918196

PIN, HAIR, .0915 X 1-7/8
(Superseded to 5025210YP)

$3.99

$

In Stock, Qty 20+

0

37

Snapper 5025089

NUT, 1/2-20 HEX JAM
(Superseded to 5025089SM)

$3.99

$

In Stock, Qty 18

0
