375Z (EZT 2050) (5900735) - Snapper 50" Zero-Turn Mower, 20hp 50" Mower Deck - Housing, Arbors & Blades Parts Diagram

50" Zero-Turn Mower, 20hp

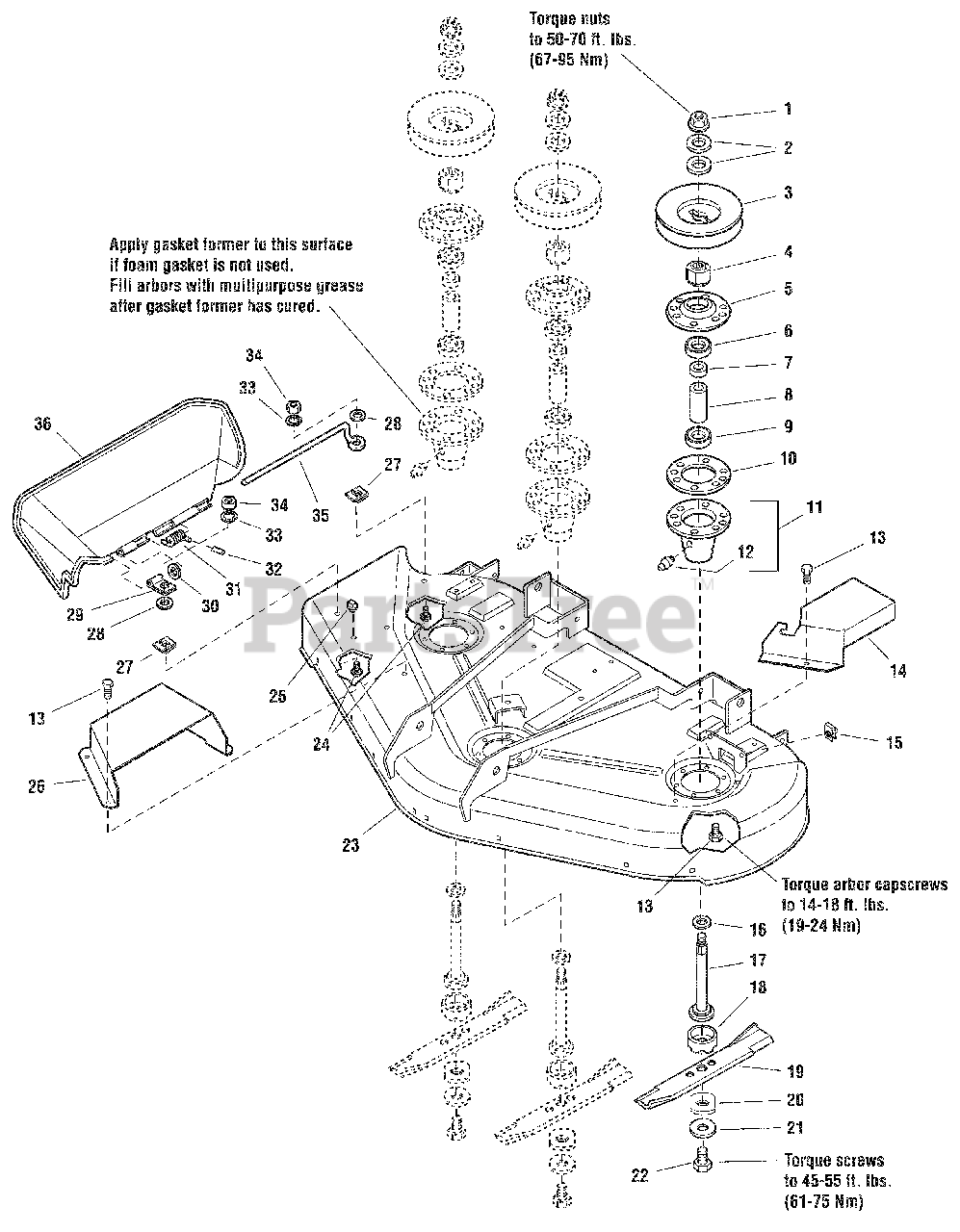

50" Mower Deck - Housing, Arbors & Blades Parts Diagram

  • Title

1

Snapper 1714419

NUT, HEX FLANGE 9/16-18 YEL (NON LOCKING)
(Superseded to 1714419SM)

$5.99

$

In Stock, Qty 20+

0

2

Snapper 1713675

WASHER, Bellville, 9/16
(Superseded to 1713675SM)

$4.49

$

In Stock, Qty 20+

0

3

Snapper 1713161

PULLEY
(Superseded to 1713161SM)

$20.99

$

In Stock, Qty 20+

0

4

Snapper 1713613

HUB, .681ID 1.50 OD 1.24 LG SERRAT ID PM
(Superseded to 1713613SM)

$15.99

$

In Stock, Qty 20+

0

5

Snapper 1655729A

HOUSING, ARBOR, TOP
(Superseded to 1655729ASM)

$14.99

$

Usually ships in 2-12 days

0

6

Snapper 2108202

BEARING, BALL 0.750ID 1.780OD 0.610LG
(Superseded to 2108202SM)

$11.99

$

In Stock, Qty 20+

0

7

Snapper 1715724

SPACER, 21/32x3/4x5/8
(Superseded to 1715724SM)

$9.49

$

In Stock, Qty 20+

0

8

Snapper 1732544

SPACER, 0.688IDX1.000ODX2.679LG PWDR MTL
(Superseded to 1732544SM)

$5.49

$

In Stock, Qty 20+

0

9

Snapper 1705897

BEARING, BALL 11/16X1-9/16X15/32
(Superseded to 1705897SM)

$8.49

$

In Stock, Qty 20+

0

10

Snapper 1707335

GASKET, FOAM POLY .12THK 1.00ID 3.75OD
(Superseded to 1707335SM)

$5.99

$

In Stock, Qty 20+

0

11

Snapper 1713338A

ARBOR HOUSING ASSY, BOTTOM
(Superseded to 1713338ASM)

Note: (Includes Ref. No. 12)

$41.99

$

In Stock, Qty 20+

0

12

Snapper 1704314

FITTING, LUBE .250 DRIVE .25SH BL CHK YEL
(Superseded to 1704314SM)

$4.99

$

In Stock, Qty 20+

0

13

Snapper 1664847

CAPSCREW, Hex Washer Head Taptite, 5/16-18X0.750BLK
(Superseded to 703228)

$4.49

$

In Stock, Qty 20+

0

14

Snapper 5400403D

GUARD, BELT - LH
(Superseded to 5400403DSM)

$30.99

$

Usually ships in 2-12 days

0

15

Snapper 5022308

BODY CLIP, 5/16-18-7GA MATERIAL
(Superseded to 5022308SM)

$5.99

$

In Stock, only 2 left!

0

16

Snapper 1713619

WASHER, CUPPED HEAT TREAT
(Superseded to 1713619SM)

$4.49

$

In Stock, Qty 20+

0

17

Snapper 1713609

SHAFT, ARBOR W/EXTRUDED WASHERS 6.50LG
(Superseded to 1713609SM)

$30.99

$

In Stock, Qty 20+

0

18

Snapper 1713196

SHIELD, GRASS, LOWER, HEAT TREAT
(Superseded to 1713196SM)

$9.49

$

In Stock, Qty 20+

0

19

Snapper 1726357

BLADE, 18-1/8 50"DECK BLACK
(Superseded to 1726357ASM)

$27.99

$

In Stock, Qty 20+

0

20

Snapper 1713089

WASHER, HEX, YELLOW ZINC
(Superseded to 1713089SM)

$4.99

$

In Stock, Qty 20+

0

21

Snapper 1656916

WASHER, SPRING 0.475IDX1.75ODX.156TH BLK
(Superseded to 1656916SM)

$7.49

$

In Stock, Qty 20+

0

22

Snapper 2823471

CAPSCREW, HEX HEAD 7/16-14x1-1/4 G8 YELLO
(Superseded to 703579)

$4.49

$

In Stock, Qty 20+

0

23

Snapper 5600331

DECK SHELL, W\DECALS, 375ZB2050 (S/N: 2013371638 & Below)
(Superseded to 5600331YP)

Note: (Includes Safety Decals)

$2764.99

$

Usually ships in 2-12 days

0

23

Snapper 5600399

DECK SHELL W/ DECALS, 375ZB2050 (S/N: 2013371639 & Above)
(Superseded to 5600399YP)

Note: (Includes Safety Decals)

$2753.99

$

Usually ships in 2-12 days

0

24

Snapper 1931318

BOLT, RD HD SH SQ NK 1/4-20X0. 875 G5 BLK
(Superseded to 1931318SM)

$4.49

$

In Stock, only 2 left!

0

25

Snapper 1705115

PLUG, BUTTON FOR 0.344SQ HOLE BLACK POLY
(Superseded to 1705115SM)

$4.49

$

In Stock, only 1 left!

0

26

Snapper 5401091D

GUARD, BELT - RH, 44", SNAPPER RED
(Superseded to 5401091DYP)

$51.99

$

Usually ships in 2-12 days

0

27

Snapper 1960518

NUT, PUSH FOR .250 DIA THREAD .500 OD BLK
(Superseded to 703826)

$3.49

$

In Stock, Qty 20+

0

28

Snapper 1960353

WASHER, 0.250(0.26IDX0.84ODX.12THK) YEL
(Superseded to 703229)

$4.49

$

In Stock, Qty 7

0

29

Snapper 1704873

CLAMP, WIRE, .312DIA . (1) .281 HOLE BLK
(Superseded to 1704873SM)

$4.49

$

In Stock, Qty 20+

0

30

Snapper 1919326

WASHER, 0.312 (0.34IDX0.75ODX.06THK) BLK
(Superseded to 703332)

$4.49

$

In Stock, Qty 20+

0

31

Snapper 7101082

SPRING, TORSION CHUTE 44/50" BLK
(Superseded to 7101082SM)

$8.49

$

In Stock, Qty 20+

0

32

Snapper 1723323

CAP, SPRING END .093ID .75LG BLACK VINYL
(Superseded to 1723323SM)

$4.99

$

In Stock, only 1 left!

0

33

Snapper 1916964

LOCKWASHER, SPRING .250 BLK
(Superseded to 704133)

$3.99

$

In Stock, Qty 11

0

34

Snapper 1916622

NUT, HEX 1/4-20 BLK 588514
(Superseded to 703127)

$3.49

$

In Stock, Qty 20+

0

35

Snapper 5049245

ROD, DEFLECTOR
(Superseded to 1706709SM)

$8.49

$

In Stock, Qty 20+

0

36

Snapper 1705449

DEFLECTOR, BLACK PLASTIC 30">50" DECKS
(Superseded to 1705449SM)

$122.99

$

In Stock, only 1 left!

0
