37501 - Gravely Adjustable Seat for PM Gear ADJUSTABLE SEAT KIT Parts Diagram

Adjustable Seat for PM Gear

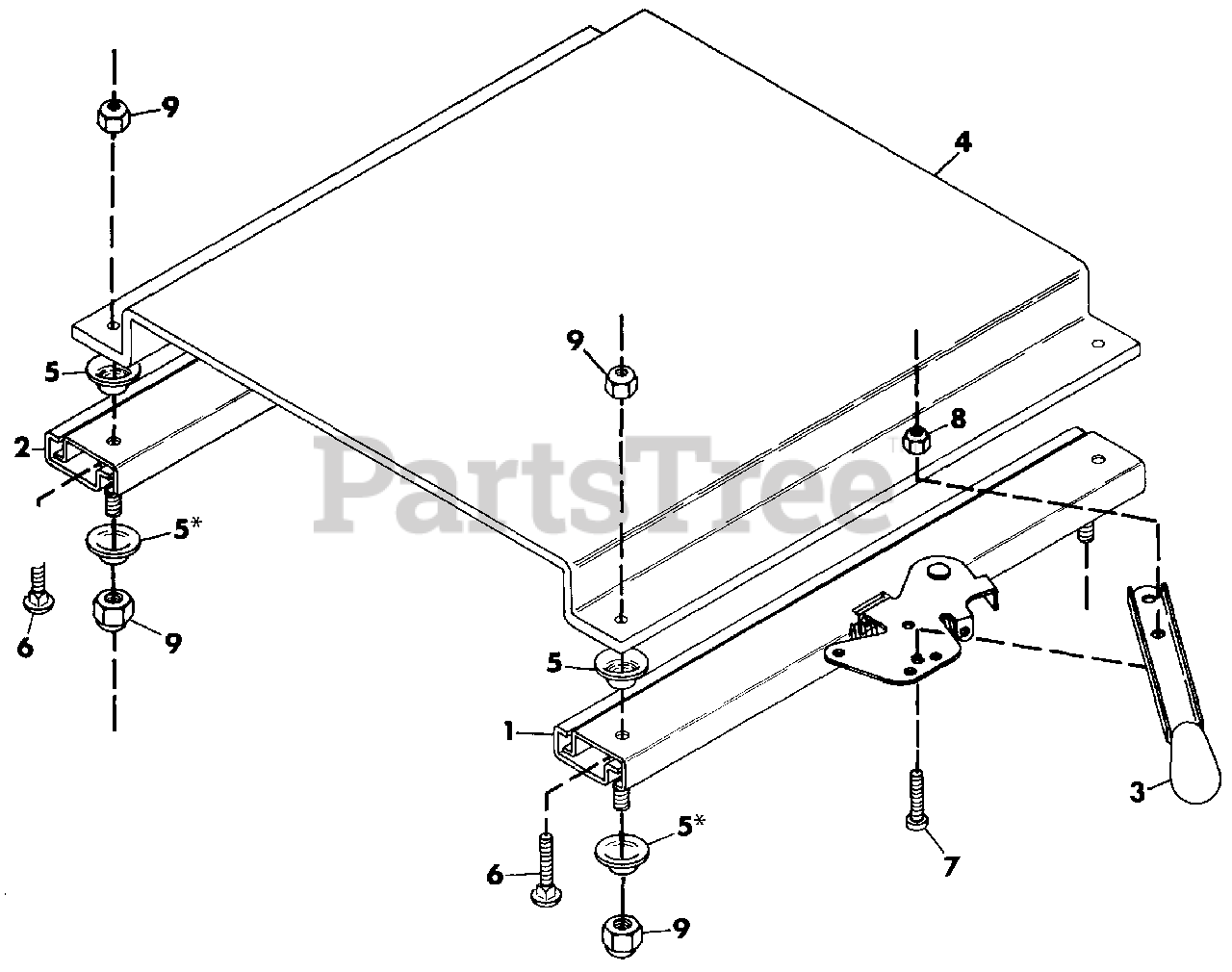

ADJUSTABLE SEAT KIT Parts Diagram

  • Title
1

Gravely 035641

ADJUSTER, SEAT W/LATCH
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

2

Gravely 035642

ADJUSTER, SEAT
(Superseded to 03600800)

$104.99

$

Usually ships in 4-12 days

0

3

Gravely 035643

HANDLE, SEAT ADJUSTER
(Superseded to 08650800)

$

$

Not available

4

Gravely 035644

PLATE, SEAT

$

$

Not available

5

Gravely 035670

SPACER
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

5*

Gravely 035670

SPACER - LOWER SPACERS USED ONLY ON THE PROMASTER-50
(Superseded to 03418300)

$4.49

$

Usually ships in 4-12 days

0

6

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 159929

SCREW, MACHINE 10-24X.625 P/HD
(Superseded to 06111100)

$0.99

$

In Stock, Qty 12

0

8

Gravely 190254

NUT, LOCK 10-24
(Superseded to 06500915)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0
