375-SU - MTD Engine 375-SU Crankcase Parts Diagram

Engine

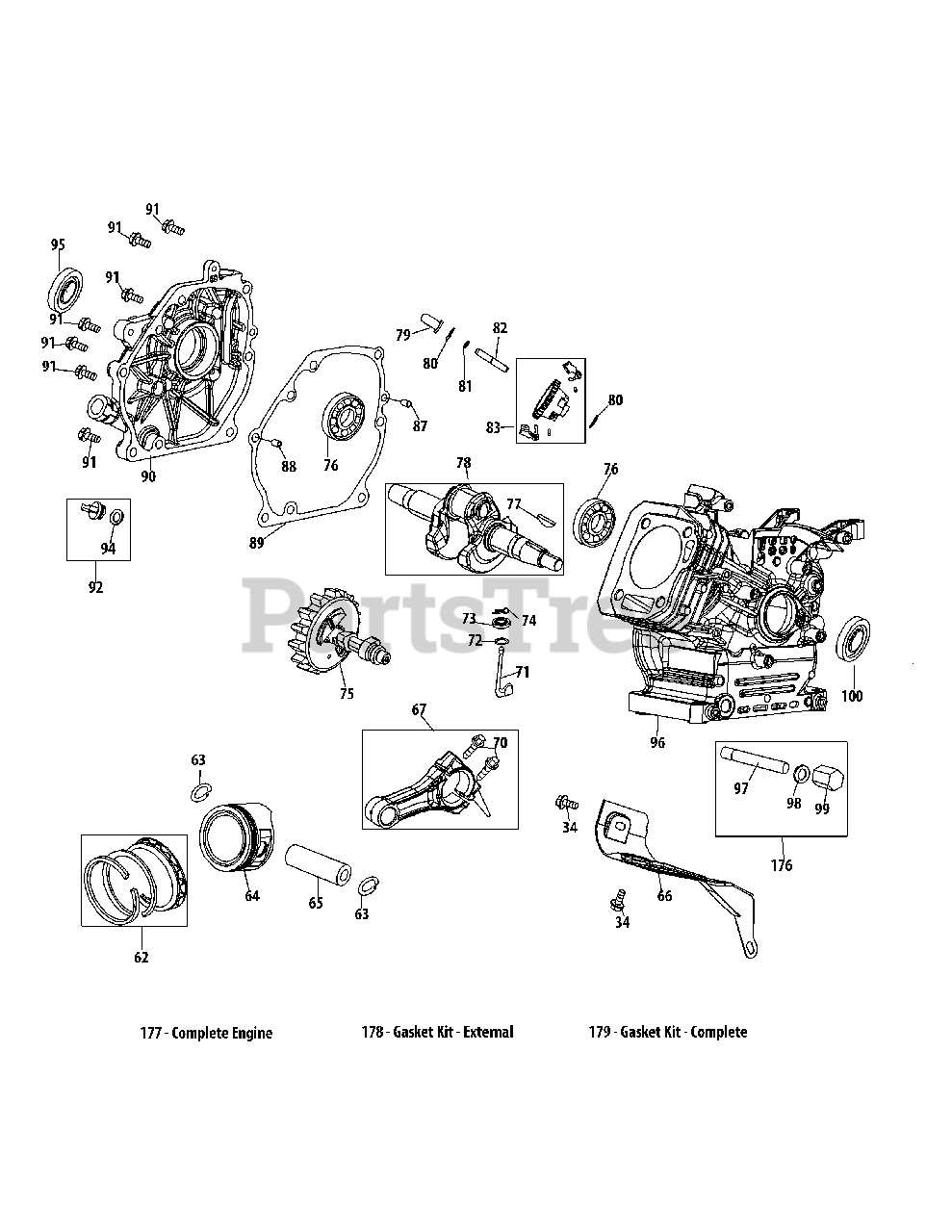

375-SU Crankcase Parts Diagram

  • Title

34

MTD 710-04915

Bolt M6×12

$4.49

$

In Stock, Qty 20+

0

62

MTD 951-14471

Piston Ring Set

$24.99

$

Usually ships in 3-6 days

0

63

MTD 951-11632

Piston Pin Snap Ring

$4.49

$

Usually ships in 3-6 days

0

64

MTD 919-05074

Piston

$38.99

$

Usually ships in 3-6 days

0

65

MTD 951-11633

Piston Pin

$7.99

$

Usually ships in 3-6 days

0

66

MTD 908-05069

Air Shield

$7.49

$

Usually ships in 3-6 days

0

67

MTD 951-11573

Connecting Rod Assembly
(Superseded to 751P11573A)

$10.99

$

In Stock, Qty 9

0

70

MTD 710-05116

Connecting Rod Bolt

$4.99

$

Usually ships in 3-6 days

0

71

MTD 951-14053

Governor Arm Shaft

$15.99

$

Usually ships in 3-6 days

0

72

MTD 736-04461

Washer 5.2×1.9

$3.99

$

Usually ships in 3-6 days

0

73

MTD 951-11902

Governor Seal
(Superseded to 951-11902A)

$3.99

$

In Stock, only 2 left!

0

74

MTD 714-04074

Cotter Pin
(Superseded to 714-04078)

$4.49

$

In Stock, only 1 left!

0

75

MTD 951-11575

Camshaft Assembly

$65.99

$

Usually ships in 3-6 days

0

76

MTD 951-11369

Radial Ball Bearing, 6205

$34.99

$

Usually ships in 3-6 days

0

77

MTD 951-10307

Woodruff Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

78

MTD 951-05129

Crankshaft Service Kit

Note: (Incl.76-78,95,100)

$173.99

$

Usually ships in 3-6 days

0

79

MTD 931-09595

Governor Cup

$5.99

$

Usually ships in 3-6 days

0

80

MTD 936-05038

Washer 6.2×0.6×15

$4.99

$

In Stock, only 2 left!

0

81

MTD 916-05003

Clamp

$5.99

$

In Stock, only 1 left!

0

82

MTD 911-06137

Governor Shaft

$6.99

$

Usually ships in 3-6 days

0

83

MTD 917-05007

Governor Body

$13.99

$

Usually ships in 3-6 days

0

87

MTD 715-04096

Dowel Pin 7×14
(Superseded to 715-04096A)

$4.49

$

Usually ships in 3-6 days

0

88

MTD 715-04089

Dowel Pin 9×14

$3.99

$

Usually ships in 3-6 days

0

89

MTD 951-11371

Crankcase Cover Gasket
(Superseded to 951-11371A)

$3.99

$

In Stock, Qty 20+

0

90

MTD 951-12125

Crankcase Cover

$115.99

$

Usually ships in 3-6 days

0

90

MTD 951-11246

Crankcase Cover Kit
(Superseded to 951-11248A)

Note: (Incl.76,89,90-95)

$200.99

$

In Stock, only 1 left!

0

91

MTD 710-04932

Bolt M8×32

$4.49

$

Usually ships in 3-6 days

0

92

MTD 951-11283

Oil Fill Plug Kit

$6.99

$

In Stock, only 1 left!

0

94

MTD 951-11577

O-Ring 15.8×2.5

$4.49

$

Usually ships in 3-6 days

0

95

MTD 951-11368

Oil Seal, 25×41.25×6
(Superseded to 751P11368A)

$3.49

$

In Stock, Qty 12

0

96

MTD 951-05130

Crankcase Service Kit

Note: (Incl.73,76,95,96,100)

$202.99

$

Usually ships in 3-6 days

0

96

MTD 951-05129

Short Block Assembly

Note: (Incl.58,62-91,95,96,100)

$173.99

$

Usually ships in 3-6 days

0

97

MTD 951-11350

Oil Drain Pipe

$9.49

$

Usually ships in 3-6 days

0

98

MTD 736-04440

Washer 10×16×1.5
(Superseded to 736-04440A)

$6.99

$

In Stock, only 2 left!

0

99

MTD 951-11499

Oil Drain Plug
(Superseded to 951-11499A)

$13.99

$

In Stock, only 2 left!

0

100

MTD 951-11370

Oil Seal 25×41.25×6
(Superseded to 751P11370A)

$2.99

$

In Stock, Qty 12

0

176

MTD 951-10641

Oil Drain Kit

Note: (Incl.97-99)

$12.99

$

In Stock, only 2 left!

0

177

MTD 952Z375-SU

Complete Engine
(Superseded to 952Z675-WUB)

$1121.99

$

Usually ships in 3-6 days

0

178

MTD 951-05133

Gasket Kit - External

Note: (Incl.6,32,38-40,44)

$40.99

$

Usually ships in 3-6 days

0

179

MTD 951-05133

Gasket Kit - Complete

Note: (Incl.6,32,38-40,44,56,72-73,89,95,98,100)

$40.99

$

Usually ships in 3-6 days

0
