37493 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 19hp Kohler (SN: 000101 & Above) NUMBER TWELVE - TRANSMISSION CASE ASM. Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 19hp Kohler

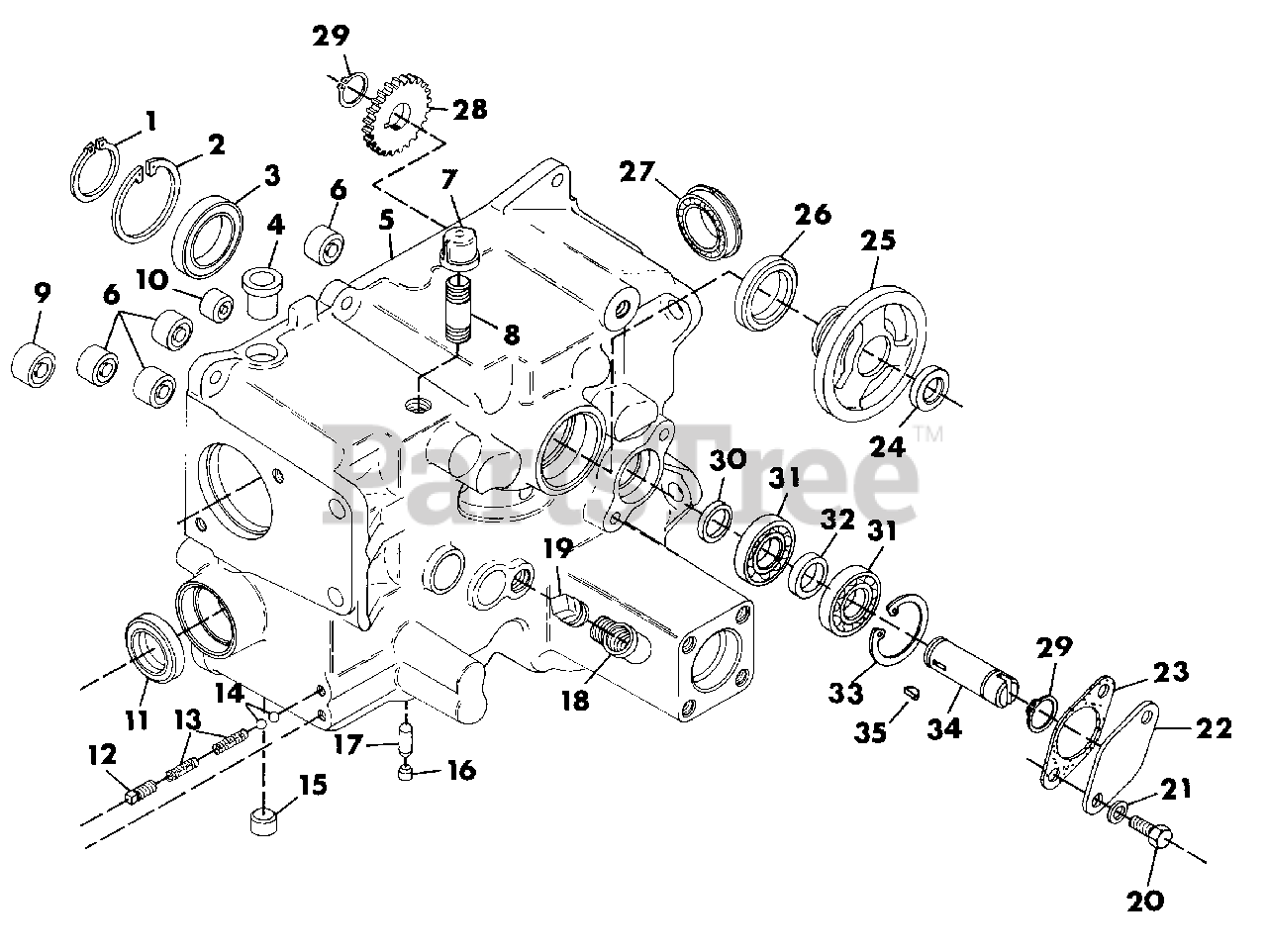

NUMBER TWELVE - TRANSMISSION CASE ASM. Parts Diagram

  • Title
1

Gravely 017919

RING, RETAINING 1.969 SHAFT
(Superseded to 05712100)

$3.49

$

Usually ships in 4-12 days

0

2

Gravely 018872

RING, RETAINING 3.156 BORE
(Superseded to 05713000)

$13.99

$

Usually ships in 4-12 days

0

3

Gravely 017915

BEARING, BALL 1.968X3.149X.629
(Superseded to 05420300)

$62.99

$

Usually ships in 4-12 days

0

4

Gravely 017943

BUSHING, .756X1.125X.75
(Superseded to 05519800)

$12.99

$

Usually ships in 4-12 days

0

5

Gravely 035587

CASE, TRANSMISSION
(Superseded to 21241300)

$

$

Not available

6

Gravely 017913

BEARING, NEEDLE .75X1.00X.75
(Superseded to 05420100)

$23.99

$

Usually ships in 4-12 days

0

7

Gravely 019472

CUP, PIPE 1/2 NPT
(Superseded to 08715400)

$

$

Not available

8

Gravely 121664

NIPPLE, PIPE 1/2X2.50
(Superseded to 07024300)

$

$

Not available

9

Gravely 017912

BEARING, NEEDLE 1.000X1.250X.750
(Superseded to 05420000)

$

$

Not available

10

Gravely 017914

BEARING, NEEDLE .625X.812X.750
(Superseded to 05420200)

$

$

Not available

11

Gravely 017923

SEAL, OIL 1.375X2.129X.312
(Superseded to 05614100)

$20.99

$

In Stock, only 1 left!

0

12

Gravely 103877

PLUG, PIPE 1/8 SQ HD STEEL
(Superseded to 07023700)

$

$

Not available

13

Gravely 017936

SPRING, COMPRESSION 1.50X.30X26R
(Superseded to 08327700)

$

$

Not available

14

Gravely 274301

BALL, STEEL 5/16
(Superseded to 05429900)

$

$

Not available

15

Gravely 017946

PLUG
(Superseded to 07704100)

$3.49

$

Usually ships in 4-12 days

0

16

Gravely 421743

PLUG, CUP 3/8
(Superseded to 07702700)

$

$

Not available

17

Gravely 018200

PIN, INTERLOCK
(Superseded to 08706400)

$

$

Not available

18

Gravely 108686

E1, 1/2 90 STREET
(Superseded to 07024000)

$

$

Not available

19

Gravely 103880

PLUG, PIPE .5 SQ HD STEEL
(Superseded to 07023900)

$3.49

$

Usually ships in 4-12 days

0

20

Gravely 180120

BOLT, HEX 3/8-16X.75
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

22

Gravely 018421

PLATE, COVER
(Superseded to 08707500)

$

$

Not available

23

Gravely 018422

GASKET, COVER PLATE
(Superseded to 08702700)

$15.99

$

In Stock, only 1 left!

0

24

Gravely 018035

SEAL, OIL .750X1.625X.250
(Superseded to 05614600)

$12.99

$

Usually ships in 4-12 days

0

25

Gravely 018024

HUB, CLUTCH
(Superseded to 08790700)

$469.99

$

Usually ships in 4-12 days

0

26

Gravely 017917

SEAL, OIL 2.250X3.005X.375
(Superseded to 05614000)

$21.99

$

In Stock, only 1 left!

0

27

Gravely 017967

BEARING, BALL 1.378X2.440X.551
(Superseded to 05420700)

$

$

Not available

28

Gravely 018808

GEAR, HYDRAULIC PUMP
(Superseded to 08708500)

$

$

Not available

29

Gravely 018809

RING, RETAINING .594 SHAFT
(Superseded to 05712800)

$

$

Not available

30

Gravely 018807

SPACER, .620X.750X.276
(Superseded to 08730600)

$

$

Not available

31

Gravely 012626

BEARING, BALL .590X1.378X.433
(Superseded to 05429000)

$20.99

$

Usually ships in 4-12 days

0

32

Gravely 018798

SPACER, .620X.750X.364
(Superseded to 08729000)

$

$

Not available

33

Gravely 018799

RING, RETAINING 1.378 BORE
(Superseded to 05705500)

$3.99

$

Usually ships in 4-12 days

0

34

Gravely 018797

SHAFT, HYDRAULIC PUMP
(Superseded to 08787300)

$249.99

$

Usually ships in 4-12 days

0

35

Gravely 271089

KEY, WOODRUFF .125X.375 HARD
(Superseded to 06609200)

$2.99

$

Usually ships in 4-12 days

0
