37493 - Gravely Pro-Master Zero-Turn Mower, Gear Drive, 19hp Kohler (SN: 000101 & Above) NUMBER FOURTEEN - AXLE HOUSING Parts Diagram

Pro-Master Zero-Turn Mower, Gear Drive, 19hp Kohler

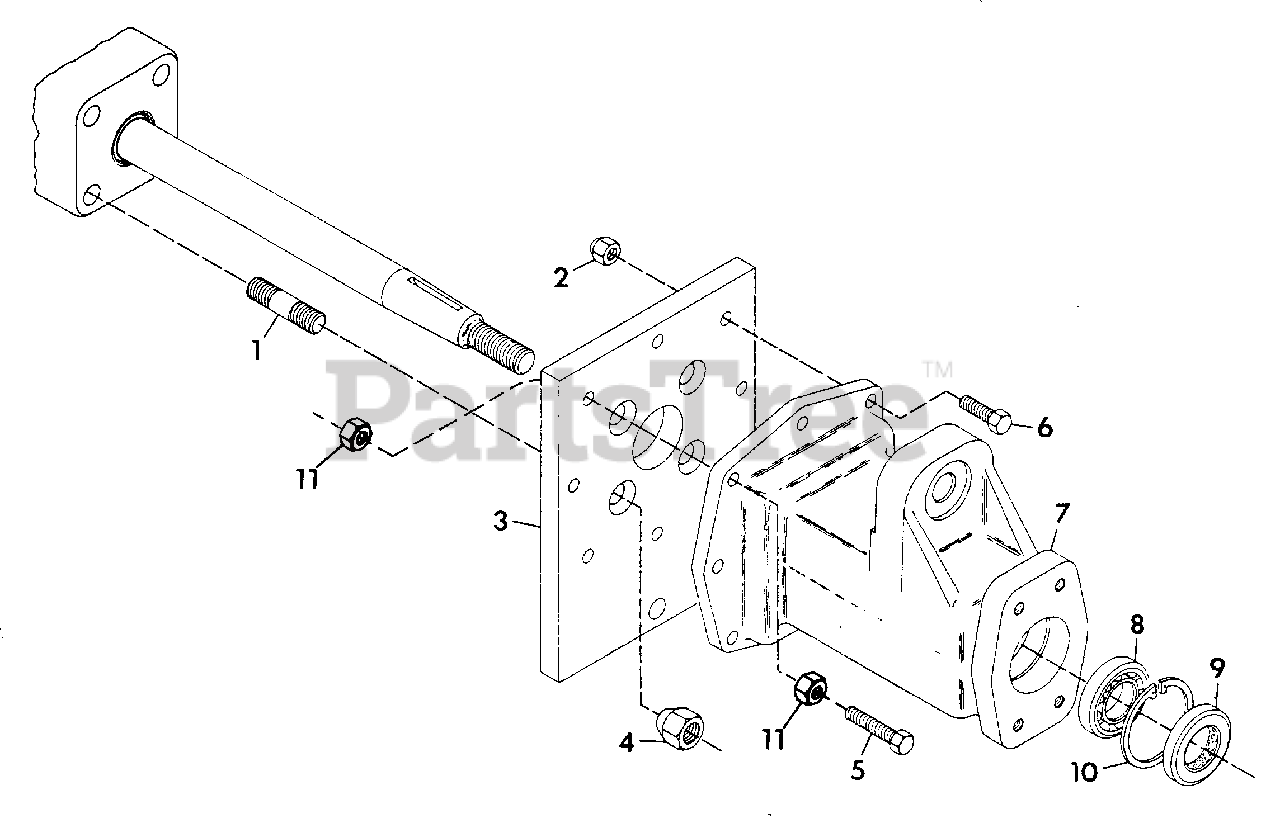

NUMBER FOURTEEN - AXLE HOUSING Parts Diagram

  • Title
1

Gravely 011187

STUD, AXLE
(Superseded to 09023000)

$

$

Not available

2

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

3

Gravely 035411

PLATE, AXLE
(Superseded to 20624200)

$

$

Not available

4

Gravely 011058

NUT, RIM
(Superseded to 06500926)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 034402

BOLT, HEX 3/8 - 16 X 2.00
(Superseded to 05942200)

$2.99

$

In Stock, only 1 left!

0

6

Gravely 180126

BOLT, HEX 3/8 - 16 X 1.50
(Superseded to 05901928)

$1.49

$

In Stock, Qty 15

0

7

Gravely 035404

HOUSING, AXLE OFC
(Superseded to 08914300)

$

$

Not available

8

Gravely 018029

BEARING, BALL 1.250 X 2.250 X .500
(Superseded to 05426600)

$37.99

$

Usually ships in 4-12 days

0

9

Gravely 018031

SEAL, OIL AXLE
(Superseded to 05618200)

$21.99

$

In Stock, only 1 left!

0

10

Gravely 018812

RING, RETAINING
(Superseded to 05712900)

$5.99

$

Usually ships in 4-12 days

0

11

Gravely 124829

NUT, JAM 3/8 - 16 HEX
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0
