374 (190-374-100) - Cub Cadet 60" Mower Deck att Deck Assembly Parts Diagram

60" Mower Deck

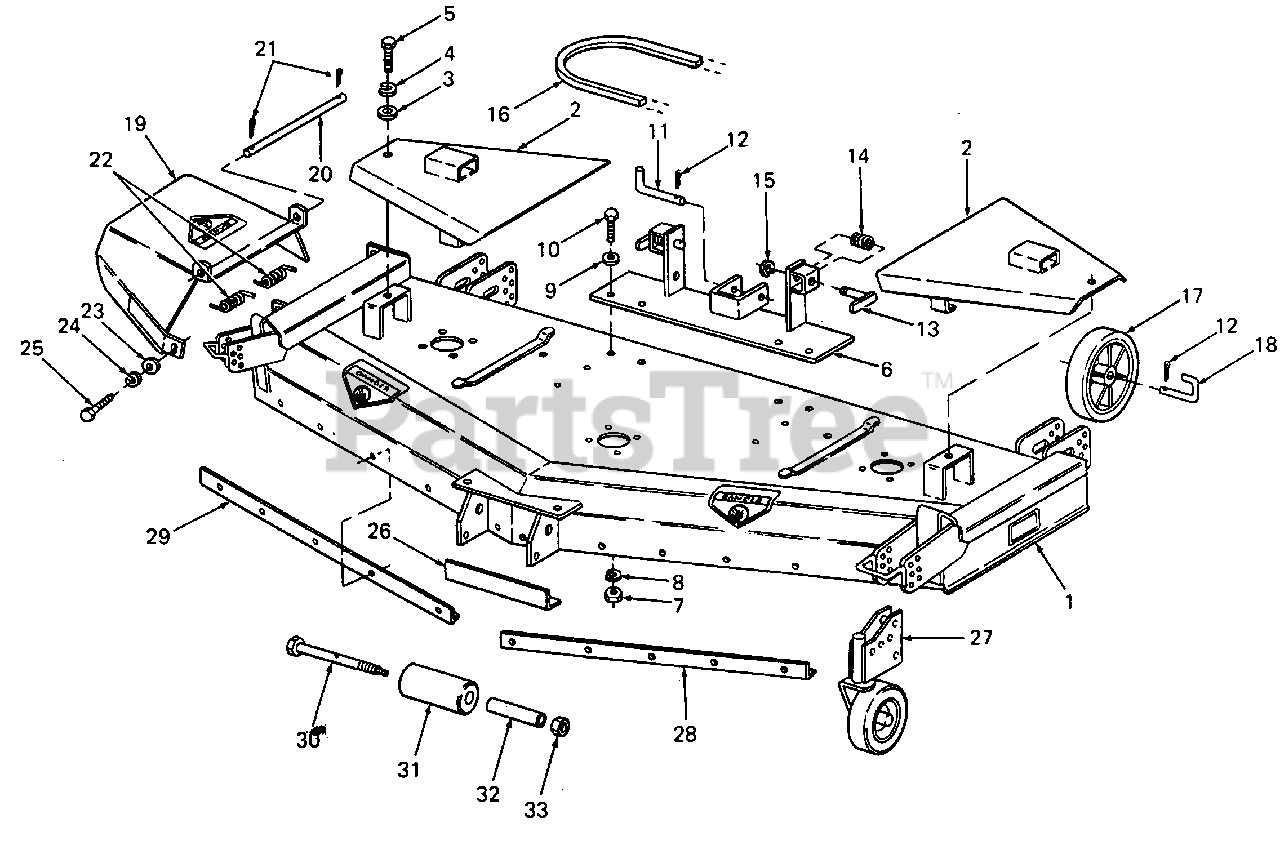

Deck Assembly Parts Diagram

  • Title

1

Cub Cadet HA-18806

Deck Assy w/Graphics

$

$

Currently unavailable

Cub Cadet HA-12315

Graphic, Danger
(Superseded to 777S30118)

$11.99

$

In Stock, only 1 left!

0

Cub Cadet 777-6275

Graphic, Thrown Object

$

$

Currently unavailable

2

Cub Cadet HA-14276

Cover, Deck Belt

$

$

Not available

3

Cub Cadet 736-0234

Washer, Flat, .390 ID X 1.50 OD X 0.75 Thk

$6.49

$

Usually ships in 3-6 days

0

4

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0514

Screw, Hex Cap, 3/8-16 X 1 Lg GR5

$4.49

$

In Stock, Qty 20+

0

6

Cub Cadet HA-14464

Bracket Assy, Rear Mounting

Variations

Cub Cadet HA-14464-0498

BRACKET, REAR MO - OLD CUB YELLOW (0498)

$

$

Not available

$

$

7

Cub Cadet 712-0206

Nut, Hex, 1/2-13

$4.49

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0921

Washer, Lock, 1/2

$4.49

$

In Stock, Qty 5

0

9

Cub Cadet 736-0272

Washer, Flat, .531 ID X 1.062 OD X 0.74 Thk

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet 710-3032

Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5

$6.49

$

Usually ships in 3-6 days

0

11

Cub Cadet HA-12983

Pin, Locating

$

$

Not available

12

Cub Cadet HA-3430

Pin, Quick Attach
(Superseded to AF-47134)

$6.99

$

In Stock, only 1 left!

0

13

Cub Cadet HA-6791

Pin, Coupler

$

$

Not available

14

Cub Cadet HA-5681

Spring, Coupler

$9.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 716-0106

Ring, Snap

$4.49

$

In Stock, only 2 left!

0

16

Cub Cadet HA-14439

Belt, Spindle Drive
(Superseded to 954-3052)

$89.99

$

In Stock, only 1 left!

0

17

Cub Cadet 759-3510

Wheel, Rear Gauge, 8"

$97.99

$

Usually ships in 3-6 days

0

18

Cub Cadet HA-14067

Pin, Rear Wheel Axle

$69.99

$

Usually ships in 3-6 days

0

19

Cub Cadet HA-14462

Deflector, Chute w/Graphic

$

$

Currently unavailable

Cub Cadet 777-2196

Graphic, Danger
(Superseded to 977S30145)

$10.99

$

In Stock, only 1 left!

0

20

Cub Cadet HA-13872

Rod, Chute Deflector Mounting

$

$

Not available

21

Cub Cadet 714-0470

Pin, Cotter, 1/8 Dia X 1.25 Lg

$4.49

$

In Stock, Qty 20+

0

22

Cub Cadet HA-12988

Spring, Deflector

$

$

Not available

23

Cub Cadet 736-3054

Washer, Flat, .438 ID X 1.00 OD X .064 Thk
(Superseded to 936-0406)

$6.99

$

In Stock, only 1 left!

0

24

Cub Cadet 736-0169

Washer, Lock, 3/8

$3.99

$

In Stock, Qty 20+

0

25

Cub Cadet 710-3000

Screw, Hex Cap, 3/8-16 X .75 Lg GR5
(Superseded to 710-0216)

$4.49

$

In Stock, Qty 16

0

26

Cub Cadet HA-15177

Up Stop Angle

$

$

Not available

27

Cub Cadet HA-13873

Wheel Assy, Pivoting Gauge - LH

$

$

Not available

Cub Cadet HA-13874

Wheel Assy, Pivoting Gauge - RH

$

$

Not available

28

Cub Cadet HA-16783

Angle, Front Mower, 26" Lg

$

$

Currently unavailable

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

29

Cub Cadet HA-16784

Angle, Front Mower, 33" Lg

$

$

Not available

Cub Cadet 710-0451

Bolt, Carriage, 5/16-18 X .75 Lg

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 710-3008

Screw, Hex Cap, 5/16-18 X .75 Lg GR5

$4.49

$

In Stock, Qty 20+

0

Cub Cadet 712-3004

Nut, Hex Flange Lock, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet HA-17741

Bolt w/Fitting

$

$

Not available

31

Cub Cadet HA-17739

Roller, Front
(Superseded to 759-3948)

$

$

Not available

32

Cub Cadet HA-17740

Spacer

$

$

Not available

33

Cub Cadet 712-3022

Nut, Hex Center Lock, 1/2-13

$3.99

$

In Stock, Qty 8

0
