371 K - Husqvarna Cut-Off Saw (1999-04) CUTTING ARM & BLADE GUARD Parts Diagram

Cut-Off Saw

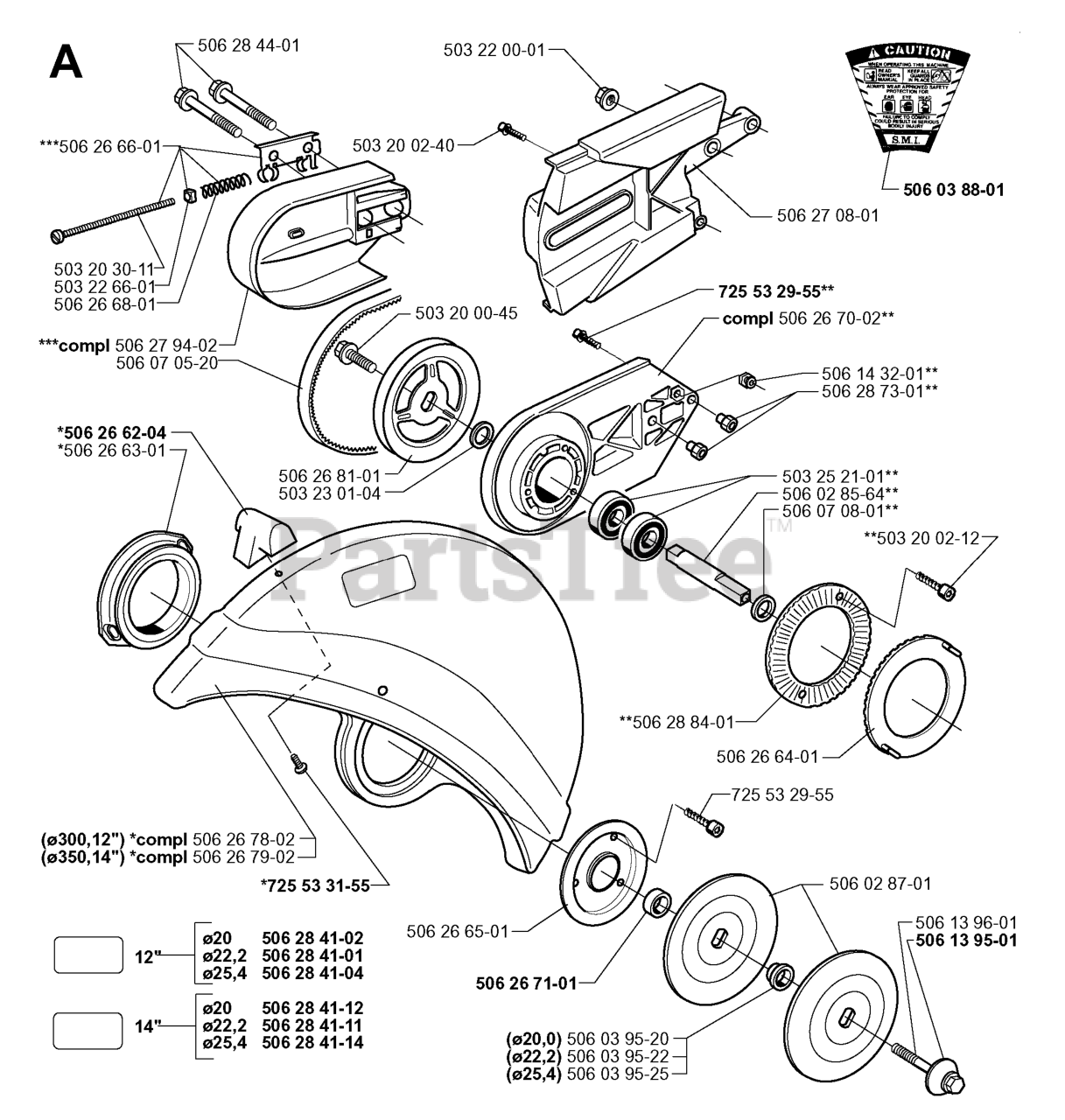

CUTTING ARM & BLADE GUARD Parts Diagram

  • Title

506 07 08-01

Husqvarna 506070801

SPACER

$15.99

$

Usually ships in 3-10 days

0

506 28 41-11

Husqvarna 506284111

Arbor Size Decal/22.2 Dia. - 14"

Note: 14 DIA.22,2

$

$

Not available

506 13 96-01

Husqvarna 506139601

SCREW

$28.99

$

Usually ships in 3-10 days

0

506 03 95-25

Husqvarna 506039525

BUSHING-1"
(Superseded to 578398201)

Note: DIA.25,4

$22.99

$

In Stock, Qty 11

0

506 27 08-01

Husqvarna 506270801

ARM
(Superseded to 506367301)

$

$

Not available

506 13 95-01

Husqvarna 506139501

WASHER
(Superseded to 506139511)

$28.99

$

Usually ships in 3-10 days

0

506 26 70-02

Husqvarna 506267002

BEARING HOUSING
(Superseded to 506267003)

$206.99

$

Usually ships in 3-10 days

0

725 53 29-55

Husqvarna 725532955

SCREW MC6S 5X16

$7.99

$

In Stock, Qty 20+

0

503 23 01-04

Husqvarna 503230104

WASHER 15X21

$6.49

$

In Stock, only 2 left!

0

506 26 71-01

Husqvarna 506267101

SLEEVE
(Superseded to 506324801)

$18.99

$

In Stock, only 3 left!

0

503 20 02-12

Husqvarna 503200212

SCREW
(Superseded to 503200712)

$7.49

$

In Stock, Qty 11

0

725 53 31-55

Husqvarna 725533155

SCREW MC6S 5X20
(Superseded to 525824902)

$6.49

$

In Stock, only 2 left!

0

503 22 66-01

Husqvarna 503226601

NUT

$6.49

$

In Stock, only 2 left!

0

506 26 65-01

Husqvarna 506266501

FLANGE

$17.99

$

In Stock, Qty 5

0

506 28 41-04

Husqvarna 506284104

LABEL

Note: 12 DIA.25,4

$14.99

$

Usually ships in 3-10 days

0

506 07 05-20

Husqvarna 506070520

BELT
(Superseded to 506372720)

$47.99

$

In Stock, only 3 left!

0

503 25 21-01

Husqvarna 503252101

BALL BEARING

$33.99

$

In Stock, only 2 left!

0

506 02 85-64

Husqvarna 506028564

SHAFT
(Superseded to 506298364)

$74.99

$

Usually ships in 3-10 days

0

506 03 88-01

Husqvarna 506038801

Warning Label

$

$

Not available

506 28 41-01

Husqvarna 506284101

Labels

Note: 12 DIA.22,2

$

$

Not available

506 26 78-02

Husqvarna 506267802

PROTECTOR
(Superseded to 506340542)

Note: DIA.300,12

$222.99

$

In Stock, only 1 left!

0

506 26 63-01

Husqvarna 506266301

LINING
(Superseded to 506266302)

$31.99

$

In Stock, only 1 left!

0

503 22 00-01

Husqvarna 503220001

NUT M8 FLANGE

$3.99

$

In Stock, Qty 20+

0

506 28 41-14

Husqvarna 506284114

ARBOR SIZE DECAL/25.4

Note: 14 DIA.25,4

$15.99

$

Usually ships in 3-10 days

0

506 28 44-01

Husqvarna 506284401

BOLT

$9.49

$

In Stock, only 3 left!

0

506 26 68-01

Husqvarna 506266801

SPRING

$7.99

$

Usually ships in 3-10 days

0

506 26 66-01

Husqvarna 506266601

TENSIONER
(Superseded to 506266603)

$35.99

$

Usually ships in 3-10 days

0

506 14 32-01

Husqvarna 506143201

CATCH

$10.99

$

Usually ships in 3-10 days

0

506 02 87-01

Husqvarna 506028701

WASHER

$54.99

$

In Stock, only 2 left!

0

503 20 30-11

Husqvarna 503203011

SCREW

$9.49

$

Usually ships in 3-10 days

0

506 03 95-22

Husqvarna 506039522

BUSHING-7/8"
(Superseded to 506379622)

Note: DIA.22,2

$20.99

$

In Stock, only 1 left!

0

506 27 94-02

Husqvarna 506279402

PROTECTOR

$73.84

$

Usually ships in 3-10 days

0

506 03 95-20

Husqvarna 506039520

BUSHING-20MM
(Superseded to 506379620)

Note: DIA.20,0

$10.99

$

In Stock, only 2 left!

0

506 28 84-01

Husqvarna 506288401

FLANGE

$9.49

$

In Stock, only 1 left!

0

506 26 64-01

Husqvarna 506266401

FLANGE

$10.99

$

In Stock, only 1 left!

0

506 26 79-02

Husqvarna 506267902

PROTECTOR
(Superseded to 506340544)

Note: DIA.350,14

$318.99

$

In Stock, only 1 left!

0

506 28 41-02

Husqvarna 506284102

Label

Note: 12 DIA.20

$9.49

$

Usually ships in 3-10 days

0

506 28 41-12

Husqvarna 506284112

ARBOR SIZE DECAL/20

Note: 14 DIA.20

$

$

Not available

503 20 02-40

Husqvarna 503200240

SCREW

$6.49

$

In Stock, only 2 left!

0

503 20 00-45

Husqvarna 503200045

SCREW

$7.99

$

In Stock, only 3 left!

0

506 26 62-04

Husqvarna 506266204

HANDLE
(Superseded to 506344602)

$9.49

$

In Stock, only 1 left!

0

506 26 81-01

Husqvarna 506268101

PULLEY
(Superseded to 506377401)

$

$

Not available

506 28 73-01

Husqvarna 506287301

NUT

$12.99

$

In Stock, only 2 left!

0
