371 K EPA - Husqvarna Cut-Off Saw (2002-01) Arm / Shield Assy. Parts Diagram

Cut-Off Saw

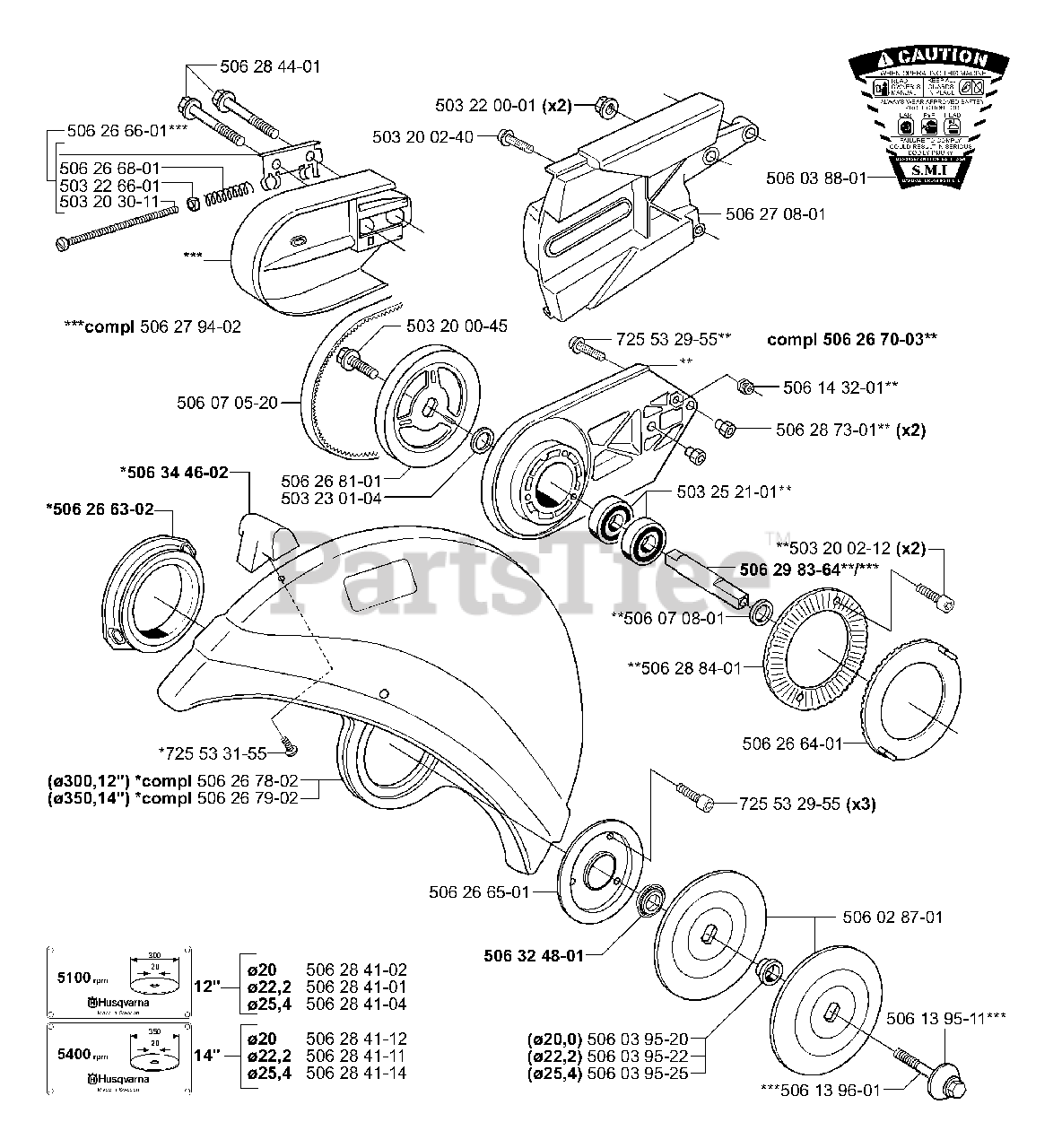

Arm / Shield Assy. Parts Diagram

  • Title

503200045

Husqvarna 503200045

Screw

$6.99

$

In Stock, Qty 12

0

503200212

Husqvarna 503200212

Screw
(Superseded to 503200712)

$7.49

$

Usually ships in 3-10 days

0

503200240

Husqvarna 503200240

Screw

$6.49

$

In Stock, only 1 left!

0

503203011

Husqvarna 503203011

Screw

$9.99

$

Usually ships in 3-10 days

0

503220001

Husqvarna 503220001

Nut M8 Flange

$3.99

$

In Stock, Qty 20+

0

503226601

Husqvarna 503226601

Nut

$6.49

$

In Stock, Qty 11

0

503230104

Husqvarna 503230104

Washer 15x21

$6.49

$

In Stock, only 2 left!

0

503252101

Husqvarna 503252101

Ball Bearing

$36.99

$

In Stock, only 1 left!

0

506028701

Husqvarna 506028701

Washer

$59.99

$

In Stock, Qty 11

0

506038801

Husqvarna 506038801

Warning Label

$

$

Not available

506039520

Husqvarna 506039520

Bushing-20mm
(Superseded to 506379620)

$11.99

$

In Stock, only 4 left!

0

506039522

Husqvarna 506039522

Bushing-7/8
(Superseded to 506379622)

$21.99

$

In Stock, Qty 5

0

506039525

Husqvarna 506039525

Bushing-1
(Superseded to 578398201)

$24.99

$

In Stock, Qty 16

0

506070520

Husqvarna 506070520

Belt
(Superseded to 506372720)

$51.99

$

In Stock, Qty 13

0

506070801

Husqvarna 506070801

Spacer

$16.99

$

Usually ships in 3-10 days

0

506139511

Husqvarna 506139511

Washer
(Superseded to 581855201)

$31.99

$

In Stock, Qty 13

0

506139601

Husqvarna 506139601

Screw

$31.99

$

In Stock, Qty 13

0

506143201

Husqvarna 506143201

Catch

$11.99

$

Usually ships in 3-10 days

0

506266302

Husqvarna 506266302

Lining

$31.99

$

In Stock, Qty 6

0

506266401

Husqvarna 506266401

Flange

$11.99

$

In Stock, Qty 17

0

506266501

Husqvarna 506266501

Flange

$17.99

$

In Stock, Qty 5

0

506266601

Husqvarna 506266601

Tensioner
(Superseded to 506266603)

$37.99

$

Usually ships in 3-10 days

0

506266801

Husqvarna 506266801

Spring

$8.49

$

Usually ships in 3-10 days

0

506267003

Husqvarna 506267003

Bearing Housing
(Superseded to 506394204)

$206.99

$

Usually ships in 3-10 days

0

506267802

Husqvarna 506267802

Protector
(Superseded to 506340542)

$287.99

$

In Stock, only 1 left!

0

506267902

Husqvarna 506267902

Protector
(Superseded to 506340544)

$345.99

$

In Stock, only 1 left!

0

506268101

Husqvarna 506268101

Pulley
(Superseded to 506377401)

$

$

Not available

506270801

Husqvarna 506270801

Arm
(Superseded to 506367301)

$

$

Not available

506279402

Husqvarna 506279402

Protector

$73.84

$

Usually ships in 3-10 days

0

506284101

Husqvarna 506284101

Labels

$

$

Not available

506284102

Husqvarna 506284102

Label

$9.99

$

Usually ships in 3-10 days

0

506284104

Husqvarna 506284104

Label

$14.99

$

Usually ships in 3-10 days

0

506284111

Husqvarna 506284111

Arbor Size Decal/22.2

$

$

Not available

506284112

Husqvarna 506284112

Arbor Size Decal/20

$21.99

$

Usually ships in 3-10 days

0

506284114

Husqvarna 506284114

Arbor Size Decal/25.4

$15.99

$

Usually ships in 3-10 days

0

506284401

Husqvarna 506284401

Bolt

$9.99

$

Usually ships in 3-10 days

0

506287301

Husqvarna 506287301

Nut

$12.99

$

In Stock, only 2 left!

0

506288401

Husqvarna 506288401

Flange

$9.99

$

In Stock, Qty 8

0

506298364

Husqvarna 506298364

Shaft
(Superseded to 506298363)

$80.99

$

Usually ships in 3-10 days

0

506324801

Husqvarna 506324801

Sleeve

$18.99

$

In Stock, Qty 6

0

506344602

Husqvarna 506344602

HANDLE

$9.99

$

In Stock, only 1 left!

0

725532955

Husqvarna 725532955

Screw Mc6s 5x16

$7.99

$

In Stock, Qty 19

0

725533155

Husqvarna 725533155

Screw Mc6s 5x20
(Superseded to 525824902)

$6.49

$

In Stock, Qty 17

0
