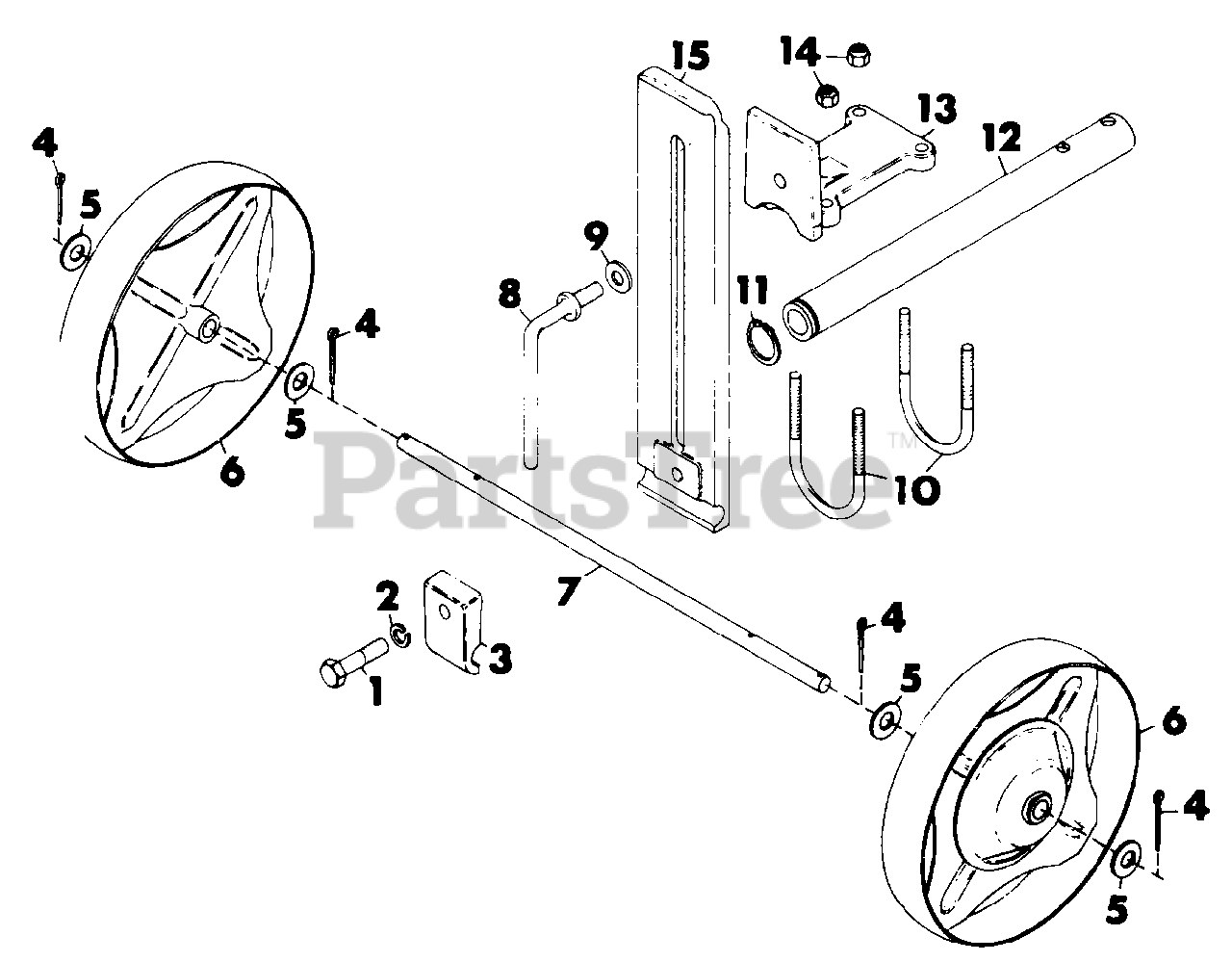

37032 - Gravely Gauge Wheel for 2-Wheel Tractor GAUGE WHEEL KIT Parts Diagram

Gauge Wheel for 2-Wheel Tractor

GAUGE WHEEL KIT Parts Diagram

  • Title

1

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

In Stock, only 1 left!

0

2

Gravely 120384

WASHER, LOCK 1/2 REG.
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

3

Gravely 005304

CLAMP, AXLE
(Superseded to 08576900)

$

$

Not available

4

Gravely 137253

PIN, COTTER .187X1.62
(Superseded to 06705800)

$2.99

$

Usually ships in 4-12 days

0

5

Gravely 131017

WASHER, FLAT .812X1.496X.134
(Superseded to 06426000)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 005327

WHEEL, DEPTH
(Superseded to 08577300)

$

$

Not available

7

Gravely 005311

AXLE, DEPTH WHEEL
(Superseded to 08577100)

$20.99

$

Usually ships in 4-12 days

0

8

Gravely 005325

SCREW, WHEEL BRACKET CLAMP
(Superseded to 07016100)

$21.99

$

Usually ships in 4-12 days

0

9

Gravely 120390

WASHER, FLAT .563X1.375X.109
(Superseded to 06401012)

$2.49

$

In Stock, only 1 left!

0

10

Gravely 022235

BOLT-U, 3/8-16
(Superseded to 07021300)

$

$

Not available

11

Gravely 022233

RING, SNAP TRUARC 5160-193
(Superseded to 05714000)

$

$

Not available

12

Gravely 022232

SUPPORT, TUBE
(Superseded to 08522000)

$9.49

$

Usually ships in 4-12 days

0

13

Gravely 022234

SWIVEL, WHEEL BRACKET
(Superseded to 08522100)

$

$

Not available

14

Gravely 413534

NUT, LOCK 3/8-16
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

15

Gravely 022236

BRACKET, WHEEL
(Superseded to 08522200)

$

$

Not available
