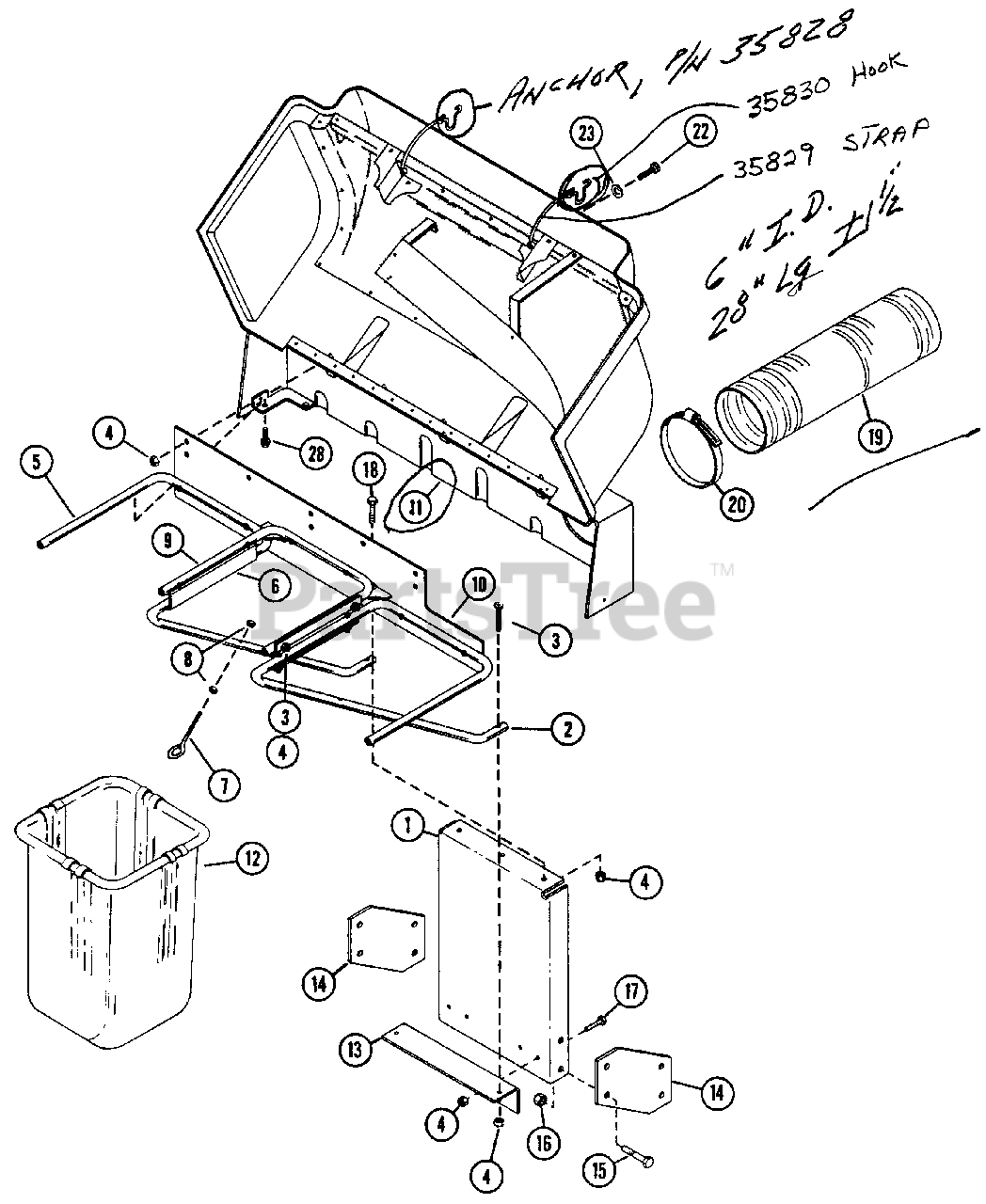

37007 - Gravely Grass Bagger 3-Basket for 4-Wheel Tractor THREE BASKET KIT Parts Diagram

Grass Bagger 3-Basket for 4-Wheel Tractor

THREE BASKET KIT Parts Diagram

  • Title
1

Gravely 038529

SUPPORT
(Superseded to 03327600)

$

$

Not available

2

Gravely 038321

RIGHT TUBE
(Superseded to 03324800)

$

$

Not available

3

Gravely 035809

SCREW, MACHINE 5/16-18X1.50
(Superseded to 06119100)

$

$

Not available

4

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 038322

LEFT TUBE
(Superseded to 03324900)

$

$

Not available

6

Gravely 038323

TUBE BRACKET
(Superseded to 02724700)

$

$

Not available

7

Gravely 038324

EYEBOLT
(Superseded to 02440100)

$10.99

$

Usually ships in 4-12 days

0

8

Gravely 424215

NUT, LOCK 1/4-20
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 038325

CENTER TUBE
(Superseded to 02724651)

$44.99

$

Usually ships in 4-12 days

0

10

Gravely 038534

MOUNTING BRACKET
(Superseded to 03325000)

$

$

Not available

11

Gravely 038535

COVER ASSEMBLY

$

$

Not available

12

Gravely 038328

GRASS BAGGER BASKET
(Superseded to 02724400)

$79.99

$

Usually ships in 4-12 days

0

13

Gravely 038530

BRACKET
(Superseded to 03327500)

$

$

Not available

14

Gravely 038531

RISER
(Superseded to 03327400)

$

$

Not available

15

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

16

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

17

Gravely 180077

BOLT, HEX 5/16-18X.75
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Gravely 180079

BOLT, HEX 5/16-18X1.00
(Superseded to 05901701)

$1.49

$

In Stock, Qty 20+

0

19

Gravely 038533

HOSE
(Superseded to 03327100)

$

$

Not available

20

Gravely 038532

HOSE CLAMP
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0

21

Gravely 180073

BOLT, HEX 5/16-18X.50
(Superseded to 05901904)

$1.49

$

In Stock, Qty 13

0

22

Gravely 038334

SCREW, MACHINE 5/16-18X.75 T/HD
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

23

Gravely 038335

WASHER, .339/.359X1.125X.063 PL
(Superseded to 06401139)

$2.49

$

In Stock, only 2 left!

0

Gravely 035828

ANCHOR
(Superseded to 02533000)

$

$

Not available

Gravely 035830

HOOK
(Superseded to 02738100)

$6.99

$

In Stock, Qty 5

0

Gravely 035829

STRAP
(Superseded to 07507500)

$14.99

$

Usually ships in 4-12 days

0
