37005 - Gravely 50" Grass Bagger Boot for 4-Wheel Tractor BOOT KIT Parts Diagram

50" Grass Bagger Boot for 4-Wheel Tractor

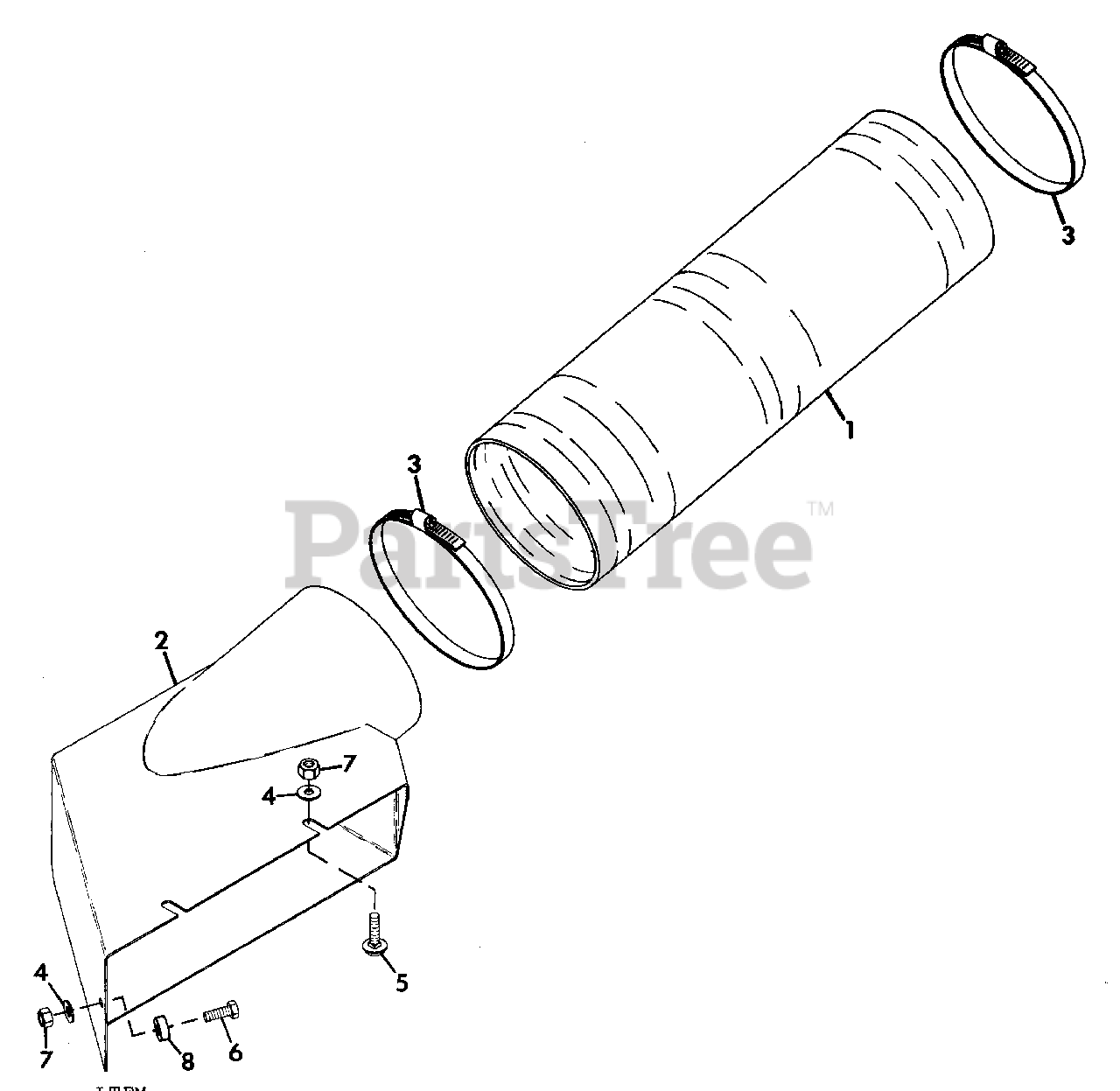

BOOT KIT Parts Diagram

  • Title

1

Gravely 036986

HOSE, MOWER TO BLOWER
(Superseded to 08706300)

$

$

Not available

2

Gravely 037841

BOOT, 40"
(Superseded to 08739853)

$

$

Not available

2

Gravely 037840

BOOT, 50"
(Superseded to 08925953)

$

$

Not available

3

Gravely 036996

CLAMP
(Superseded to 03022400)

$17.99

$

Usually ships in 4-12 days

0

4

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

5

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

6

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

6

Gravely 180124

BOLT, HEX 3/8-16X1.25
(Superseded to 05901724)

$1.49

$

In Stock, Qty 20+

0

7

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

8

Gravely 012657

BUSHING, REVERSE IDLER
(Superseded to 08536300)

$

$

Not available
