3700 - Poulan Chainsaw Rear Handle Isolator System (Old Style) Parts Diagram

Chainsaw

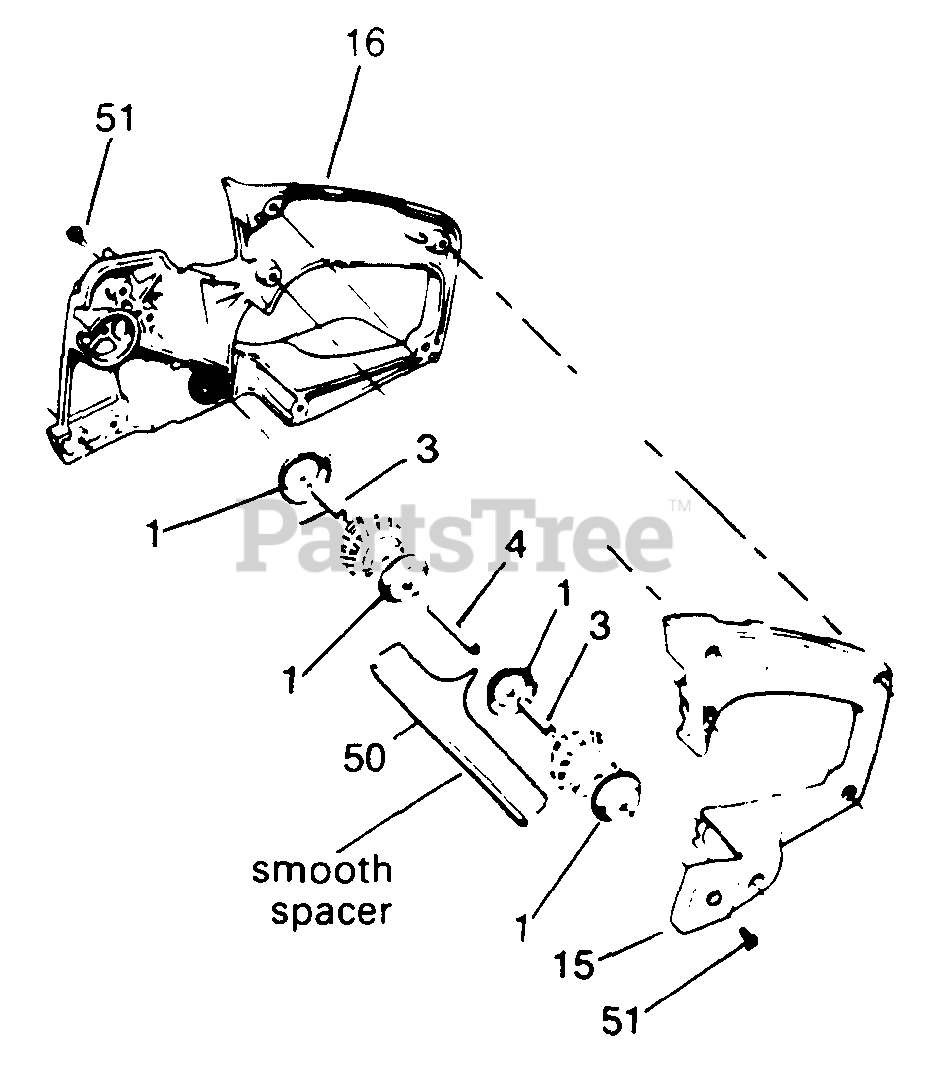

Rear Handle Isolator System (Old Style) Parts Diagram

  • Title

1

Poulan 530024376

Cup Isolator

Note: Old Style

$4.99

$

Usually ships in 3-10 days

0

3

Poulan 530015362

Spacer Isolator

Note: Old Style

$

$

Not available

4

Poulan 530015361

Spacer Isolator

Note: Old Style

$

$

Not available

15

Poulan 530011642

Rear Handle - Left

Note: Old Style

$

$

Not available

16

Poulan 530011643

Rear Handle - Right

Note: Old Style; See Drawing Note No. 4.

$

$

Not available

16

Poulan 530011827

Rear Handle - Right

Note: Old Style (#10 holes)

$

$

Not available

50

Poulan 530024377

Pin - Rear Isolator

Note: Old Style

$

$

Not available

51

Poulan 530015192

Screw - 10-24 x 3/8 Pan Head

Note: Old Style

$

$

Not available

7

Poulan 530015387

Screw - 10-24 x 9/16 Fil. Hd.

Note: Old Style (#10 holes)

$

$

Not available

6

Handle Brace

$

$

Not available

6

Poulan 530011646

Handle Brace Use on Guide Bar Powerhead

Note: Old Style (#10 holes)

$

$

Not available

6

Poulan 530011645

Handle Brace Use on Bow Guide Powerhead

Note: Old Style (#10 holes)

$

$

Not available
