3700 - Poulan Chainsaw Rear Handle Isolator System (New Style) Parts Diagram

Chainsaw

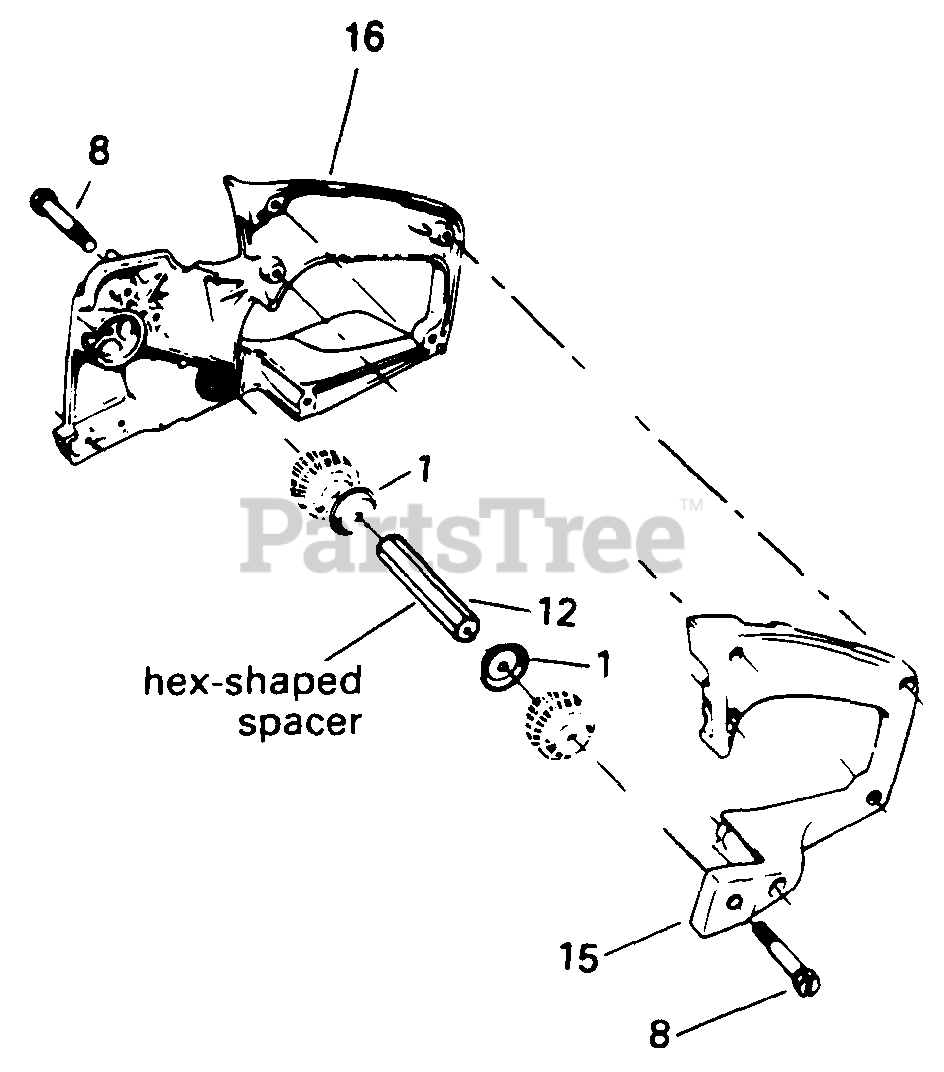

Rear Handle Isolator System (New Style) Parts Diagram

  • Title

1

Poulan 530024376

Cup Isolator

Note: New Style

$4.99

$

Usually ships in 3-10 days

0

8

Poulan 530015462

Shoulder Screw 1/4-20 x 3/4

Note: New Style

$

$

Not available

12

Poulan 530026258

Spacer - Center

Note: New Style

$

$

Not available

15

Poulan 530011826

Rear Handle - Left

Note: New Style

$

$

Not available

16

Poulan 530011827

Rear Handle - Right

Note: New Style; See Drawing Note No. 4.

$

$

Not available

16

Poulan 530012023

Rear Handle - Right

Note: New Style (1/4" holes)

$

$

Not available

7

Poulan 530015194

Screw - 1/4-20 x 3/4 Button Hd.

Note: New Style (1/4" holes)

$

$

Not available

6

Handle Brace

$

$

Not available

6

Poulan 530011965

Handle Brace Use on Guide Bar Powerhead

Note: New Style (1/4" holes)

$

$

Not available

6

Poulan 530011964

Handle Brace Use on Bow Guide Powerhead

Note: New Style (1/4" holes)

$

$

Not available
