370-SUA - MTD Engine Engine Assembly 370-SUA Parts Diagram

Engine

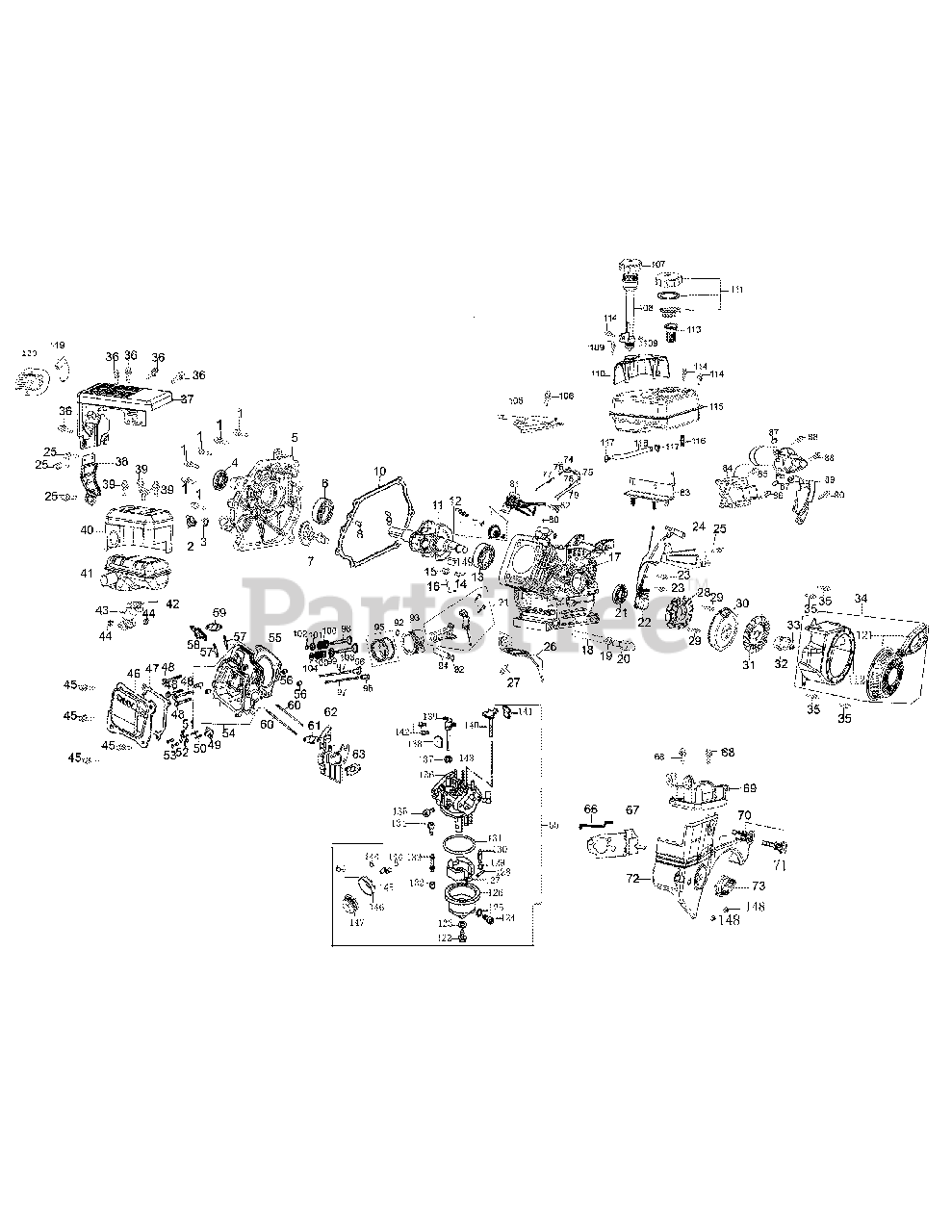

Engine Assembly 370-SUA Parts Diagram

  • Title

1

N/A

Bolt

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

1

N/A

Bolt

Note: Furnish 951-11098 Crankshaft Cover Kit

$

$

Not available

2

N/A

Oil Filler Plug

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

2

N/A

Oil Fill Plug

Note: Furnish 951-10669 Oil Fill Plug Assy

$

$

Not available

2

N/A

Oil Filler Plug

Note: Furnish 951-11098 Crankshaft Cover Kit

$

$

Not available

3

N/A

O-Ring - Oil Filler Plug

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

3

N/A

O-Ring

Note: Furnish 951-10669 Oil Fill Plug Assy

$

$

Not available

3

N/A

O-ring - Oil Filler Plug

Note: Furnish 951-11098 Crankshaft Cover Kit

$

$

Not available

4

N/A

Oil Seal

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

4

N/A

Oil Seal

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

4

N/A

Oil Seal

Note: Furnish 951-11098 Crankshaft Cover Kit

$

$

Not available

4

N/A

Oil Seal

Note: Furnish 951-11099 Crankshaft Kit

$

$

Not available

5

N/A

Crankcase Cover

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

5

N/A

Crankcase Cover

Note: Furnish 951-11098 Crankshaft Cover Kit

$

$

Not available

6

N/A

Radial Ball Bearing

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

6

N/A

Radial Ball Bearing

Note: Furnish 951-11098 Crankshaft Cover Kit

$

$

Not available

6

N/A

Radial Ball Bearing

Note: Furnish 951-11099 Crankshaft Kit

$

$

Not available

7

N/A

Camshaft Assembly

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

8

N/A

Dowel Pin

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

9

N/A

Dowel Pin

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

10

N/A

Crankcase Cover Gasket

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

10

N/A

Crankcase Cover Gasket

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

10

N/A

Case Cover Gasket

Note: Furnish 951-11098 Crankshaft Cover Kit

$

$

Not available

11

N/A

Crankshaft Complete

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

11

N/A

Crankshaft Assembly

Note: Furnish 951-11099 Crankshaft Kit

$

$

Not available

12

N/A

Governor Kit

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

13

N/A

Radial Ball Bearing

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

13

N/A

Bearing

Note: Furnish 951-11101 Crankcase Kit

$

$

Not available

13

N/A

Bearing

Note: Furnish 951-11099 Crankshaft Kit

$

$

Not available

14

N/A

Lock Pin

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

15

N/A

O-Ring

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

15

N/A

O-Ring - Governor Arm

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

15

N/A

O-ring - Governor Arm

Note: Furnish 951-11101 Crankcase Kit

$

$

Not available

16

N/A

Governor Arm

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

17

N/A

Crankcase Complete

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

17

N/A

Crankcase Complete

Note: Furnish 951-11101 Crankcase Kit

$

$

Not available

18

N/A

Oil Drain Pipe

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

18

N/A

Oil Drain Pipe

Note: Furnish 951-10641 Oil Drain Assembly

$

$

Not available

19

N/A

Oil Drain Washer

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

19

N/A

Oil Drain Washer

Note: Furnish 951-10661 Gasket Kit External

$

$

Not available

19

N/A

Oil Drain Plug Washer

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

20

N/A

Oil Drain Bolt

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

20

N/A

Drain Bolt

Note: Furnish 951-10641 Oil Drain Assembly

$

$

Not available

21

N/A

Oil Seal

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

21

N/A

Oil Seal

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

21

N/A

Bearing

Note: Furnish 951-11101 Crankcase Kit

$

$

Not available

21

N/A

Bearing

Note: Furnish 951-11099 Crankshaft Kit

$

$

Not available

22

MTD 951-10646

Ignition Coil
(Superseded to 951-10646A)

$105.99

$

In Stock, only 3 left!

0

24

MTD 951-11110

Air Flow Shield

$4.49

$

Usually ships in 3-6 days

0

26

MTD 951-11113

Air Shield

$9.49

$

Usually ships in 3-6 days

0

28

MTD 951-10719

Stator
(Superseded to 951-12050A)

$97.99

$

Usually ships in 3-6 days

0

30

MTD 951-10805

Flywheel

$133.99

$

Usually ships in 3-6 days

0

31

MTD 951-10909

Cooling Fan
(Superseded to 951-10934)

$23.99

$

In Stock, only 1 left!

0

32

MTD 951-10911

Starter Cup

$17.99

$

Usually ships in 3-6 days

0

35

MTD 951-11012

Recoil Mounting Bolts
(Superseded to 710-04968)

$6.99

$

In Stock, only 3 left!

0

37

MTD 951-10642A

Muffler Shroud
(Superseded to 951-10642B)

$

$

Not available

38

MTD 951-11111

Exhaust Pipe Shield

$12.99

$

Usually ships in 3-6 days

0

40

MTD 951-10643

Muffler Shield
(Superseded to 908-05022)

$22.99

$

Usually ships in 3-6 days

0

41

N/A

Muffler Assembly

Note: Furnish 951-10644 Muffler Assy Complete

$

$

Not available

42

N/A

Paper Gasket

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

43

N/A

Exhaust Pipe

Note: Furnish 951-10644 Muffler Assy Complete

$

$

Not available

46

MTD 951-11054

Valve Cover
(Superseded to 951-11054B)

Note: Furnish 951-11063 Valve Cover Kit

$15.99

$

Usually ships in 3-6 days

0

47

N/A

Valve Cover Gasket

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

47

N/A

Valve Cover Gasket

Note: Furnish 951-10661 Gasket Kit External

$

$

Not available

47

N/A

Valve Cover Gasket

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

47

N/A

Valve Cover Gasket

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

47

N/A

Valve Cover Gasket

Note: Furnish 951-11063 Valve Cover Kit

$

$

Not available

49

N/A

Push Rod Guide Plate

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

50

N/A

Pivot Bolt

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

51

N/A

Rocker Arm

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

52

N/A

Valve Adjusting Nut

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

53

N/A

Pivot Locking Nut

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

54

N/A

Cylinder Head

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

55

N/A

Cylinder Head Gasket

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

55

N/A

Cylinder Head Gasket

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

55

N/A

Cylinder Head Gasket

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

56

N/A

Dowel Pin

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

57

MTD 951-10657

Muffler Stud Assembly

$10.99

$

Usually ships in 3-6 days

0

58

MTD 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

59

MTD 951-10666

Muffler Gasket

$5.99

$

Usually ships in 3-6 days

0

59

MTD 951-10666

Muffler Gasket

Note: Furnish 951-10660 Gasket Kit Complete

$5.99

$

Usually ships in 3-6 days

0

59

MTD 951-10666

Muffler Gasket

Note: Furnish 951-10661 Gasket Kit External

$5.99

$

Usually ships in 3-6 days

0

59

MTD 951-10666

Muffler Gasket

Note: Furnish 951-10668 Cylinder Head Assy

$5.99

$

Usually ships in 3-6 days

0

59

MTD 951-10666

Muffler Gasket

Note: Furnish 951-10659 Short Block Assy

$5.99

$

Usually ships in 3-6 days

0

61

N/A

Carburetor Insulator Gasket

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

61

N/A

Carburetor Insulator Gasket

Note: Furnish 951-10661 Gasket Kit External

$

$

Not available

61

N/A

Carburetor Insulator Gasket

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

61

N/A

Carburetor Insulator Gasket

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

62

N/A

Carburetor Insulator

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

62

N/A

Carburetor Insulator

Note: Furnish 951-10661 Gasket Kit External

$

$

Not available

62

N/A

Carburetor Insulator

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

62

N/A

Carburetor Insulator

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

63

N/A

Carburetor Gasket

Note: Furnish 951-10660 Gasket Kit Complete

$

$

Not available

63

N/A

Carburetor Gasket

Note: Furnish 951-10661 Gasket Kit External

$

$

Not available

64

MTD 951-10639

Primer
(Superseded to 951-10639A)

$15.99

$

In Stock, Qty 20+

0

65

MTD 951-10638

Carburetor Assembly
(Superseded to 951-14026A)

$110.99

$

In Stock, Qty 20+

0

66

MTD 951-10640

Choke Push Rod

$10.99

$

In Stock, Qty 6

0

67

MTD 951-11112

Choke Control Bracket

$25.99

$

In Stock, Qty 5

0

69

MTD 951-10635

Air Filter Heating Pipe Cover

$16.99

$

In Stock, only 2 left!

0

70

MTD 951-10637

Ignition Switch

$14.99

$

In Stock, Qty 8

0

71

MTD 731-05632

Ignition Key
(Superseded to 951-10630)

$6.99

$

In Stock, Qty 6

0

72

MTD 951-10634

Engine Shroud
(Superseded to 951-10634A)

$32.99

$

Usually ships in 3-6 days

0

73

MTD 951-10636

Choke Knob
(Superseded to 951-11284)

$7.49

$

In Stock, Qty 5

0

77

MTD 951-10654

Governor Spring

$8.49

$

In Stock, Qty 20+

0

78

MTD 951-10664

Throttle Return Spring
(Superseded to 751P10664A)

$2.49

$

Usually ships in 3-6 days

0

79

MTD 951-10665

Governor Rod
(Superseded to 751P10665A)

$1.99

$

In Stock, Qty 20+

0

81

MTD 951-10758

Throttle Control Assembly

$23.99

$

Usually ships in 3-6 days

0

82

MTD 951-10757

Throttle Control Knob
(Superseded to 951-11224)

$7.99

$

In Stock, Qty 5

0

83

MTD 951-11114

Switch Mounting Housing Bracket

$17.99

$

Usually ships in 3-6 days

0

84

MTD 951-10645A

Electric Starter

$304.99

$

In Stock, only 1 left!

0

89

MTD 951-11109

Blower Housing Shield

$7.49

$

Usually ships in 3-6 days

0

91

N/A

Connecting Rod Assembly

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

92

N/A

Piston Pin Clip

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

93

N/A

Piston

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

94

N/A

Piston Pin

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

95

N/A

Piston Ring Assembly

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

96

N/A

Tappet

Note: Furnish 951-10659 Short Block Assy

$

$

Not available

97

MTD 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

98

N/A

Exhaust Valve

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

98

N/A

Exhaust Valve

Note: Furnish 951-10647 Valve Kit

$

$

Not available

99

N/A

Valve Seal

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

100

N/A

Valve Spring

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

101

N/A

Valve Spring Retainers - Exhaust

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

102

N/A

Exhaust Valve Adjuster

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

103

N/A

Intake Valve

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

103

N/A

Intake Valve

Note: Furnish 951-10647 Valve Kit

$

$

Not available

104

N/A

Valve Spring Retainer- Intake

Note: Furnish 951-10668 Cylinder Head Assy

$

$

Not available

105

MTD 951-11108

Governor Shield

$4.99

$

Usually ships in 3-6 days

0

107

MTD 951-10655

Dipstick
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

108

MTD 951-10656

Dipstick Tube
(Superseded to 631-05020AP)

$34.99

$

Usually ships in 3-6 days

0

110

MTD 951-10662

Cover - Engine/Dipstick

$

$

Not available

111

N/A

Fuel Cap Complete

Note: Furnish 951-10649 Fuel Cap Assy

$

$

Not available

112

MTD 951-10663A

Fan Cover
(Superseded to 951-12644)

$60.99

$

Usually ships in 3-6 days

0

113

MTD 951-10652

Fuel Filter

$9.49

$

In Stock, only 4 left!

0

115

MTD 951-10653A

Fuel Tank
(Superseded to 951-10653B)

$79.99

$

In Stock, Qty 12

0

116

MTD 951-10651

Fuel Tank Nipple

$15.99

$

In Stock, Qty 15

0

117

N/A

Fuel Line Clamp

Note: Furnish 951-10650 Fuel Line Kit

$

$

Not available

118

N/A

Fuel Line

Note: Furnish 951-10650 Fuel Line Kit

$

$

Not available

119

MTD 951-10769

Exhaust Deflector Pipe

$

$

Not available

120

MTD 951-10768

Exhaust Deflector Shield

$

$

Not available

121

MTD 951-10658

Recoil Starter Assembly
(Superseded to 951-14151)

$85.99

$

In Stock, Qty 20+

0

149

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

$2.49

$

In Stock, Qty 10

0

149

MTD 951-10307

Flywheel Key
(Superseded to 751P10307A)

Note: Furnish 951-11099 Crankshaft Kit

$2.49

$

In Stock, Qty 10

0

150

N/A

Governor Seal

Note: Furnish 951-11101 Crankcase Kit

$

$

Not available

MTD 731-05696

Starter Handle

Note: Not Shown

$16.99

$

In Stock, only 3 left!

0

MTD 951-10641

Oil Drain Assembly

Note: Not Shown - Incl. Ref # 18 & 20

$12.99

$

In Stock, only 2 left!

0

MTD 951-10644

Muffler Assembly Complete
(Superseded to 951-11282)

Note: Not Shown - Incl. Ref # 41 & 43

$

$

Not available

MTD 951-10647

Valve Kit
(Superseded to 951-10647A)

Note: Not Shown - Incl. Ref # 98 &103

$64.99

$

Usually ships in 3-6 days

0

MTD 951-10649

Fuel Cap Assembly
(Superseded to 951-12533)

Note: Not Shown - Incl. Ref # 111

$23.99

$

Usually ships in 3-6 days

0

MTD 951-10650

Fuel Line Kit

Note: Not Shown - Incl. Ref # 117 & 118

$28.99

$

In Stock, only 2 left!

0

MTD 951-10659

Short Block Assembly
(Superseded to 951-11060B)

Note: Not Shown - Incl. Ref # 17, 5, 93, 95, 94, 92, 91, 96, 7, 61, 11, 62, 59, 16, 14, 12, 10, 55, 20, 19, 9, 8, 56, 13, 1, 4, 15, 2, 3, 47, 18, 16, & 21

$415.99

$

Usually ships in 3-6 days

0

MTD 951-10660

Gasket Kit Complete
(Superseded to 951-10660A)

Note: Not Shown - Incl. Ref # 4, 10, 15, 21, 55, 59, 47, 61, 62, 63, 42, & 19

$52.99

$

Usually ships in 3-6 days

0

MTD 951-10661

Gasket Kit External
(Superseded to 951-10661B)

Note: Not Shown - Incl. Ref # 19, 59, 61, 62, 63, & 47

$32.99

$

In Stock, Qty 5

0

MTD 951-10668

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: Not Shown - Incl. Ref # 51, 103, 98, 100, 101, 52, 53, 50, 49, 47, 61, 62, 59, 55, 54, 102, 104, & 99

$170.99

$

In Stock, only 1 left!

0

MTD 951-10669

Oil Fill Plug Assembly

Note: Not Shown - Incl. Ref # 2 & 3

$6.49

$

Usually ships in 3-6 days

0

MTD 951-11021

Carburetor Repair Kit Major
(Superseded to 951-12788A)

Note: Not Shown

$54.99

$

In Stock, Qty 7

0

MTD 951-11063

Valve Cover Kit
(Superseded to 951-12626)

Note: Not Shown - Incl. Ref # 46 & 47

$28.99

$

Usually ships in 3-6 days

0

MTD 951-11098

Crankshaft Cover Kit
(Superseded to 951-11062B)

Note: Not Shown - Incl. Ref # 1, 2, 3, 4, 5, 6 & 10

$380.99

$

Usually ships in 3-6 days

0

MTD 951-11099

Crankshaft Kit

Note: Not Shown - Incl. Ref # 4, 6, 11, 13, 21, & 149

$

$

Not available

MTD 951-11101

Crankcase Kit
(Superseded to 951-11060B)

Note: Not Shown Incl. Ref # 13, 15, 17, & 21

$415.99

$

Usually ships in 3-6 days

0

Oil Pipe Reserve

Note: Not Shown - Furnish 951-10659 Short Block Assy

$

$

Not available

Packing ( Gasket )

Note: Not Shown - Furnish 951-10649 Fuel Cap Assy

$

$

Not available

Clip ( Gasket Retainer )

Note: Not Shown - Furnish 951-10649 Fuel Cap Assy

$

$

Not available

MTD 952Z370-SUA

Engine Complete
(Superseded to 952Z670-WUB)

Note: Not Shown

$887.99

$

Usually ships in 3-6 days

0
