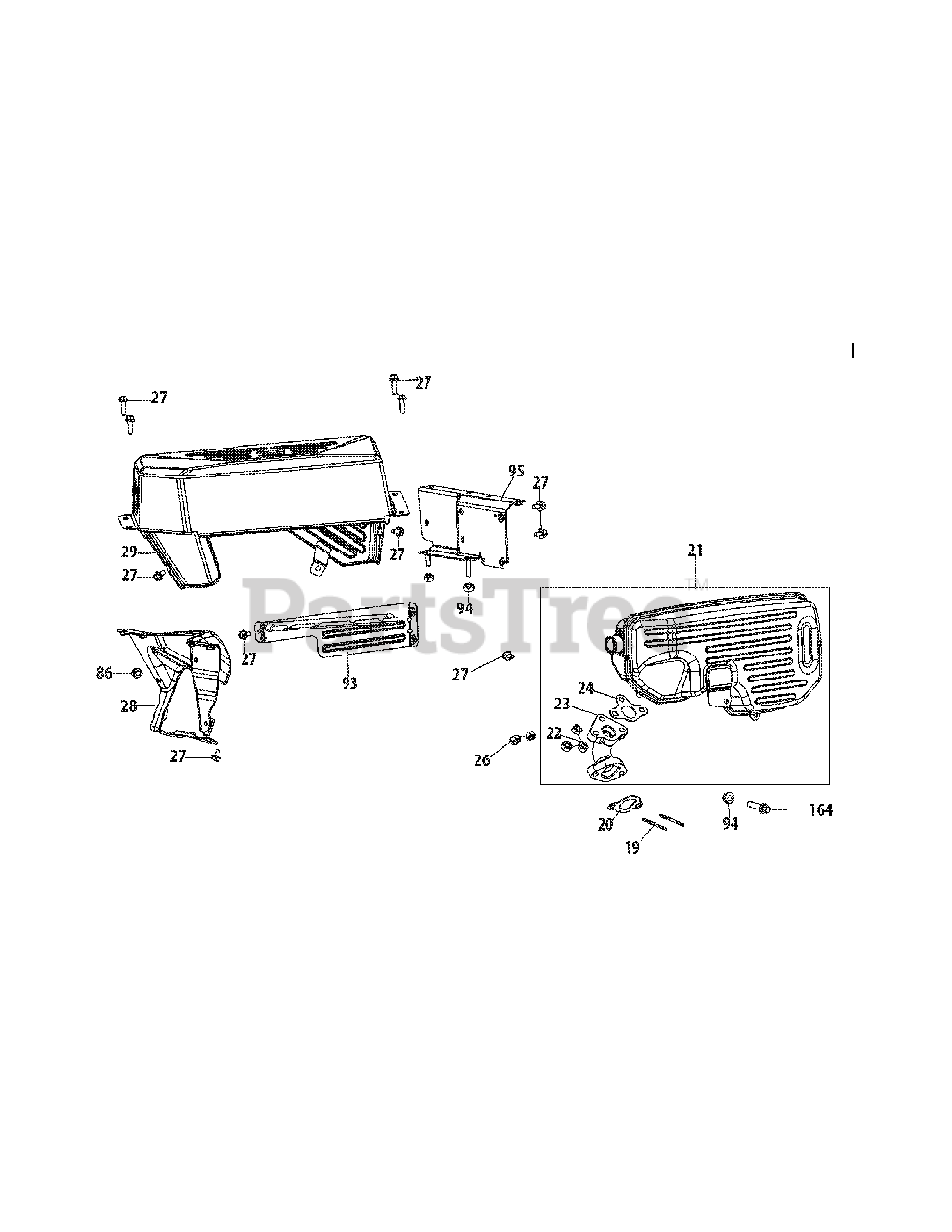

370-QU - MTD Engine 370-QU Muffler Parts Diagram

Engine

370-QU Muffler Parts Diagram

  • Title

19

MTD 710-05001

Stud, M8×36

$3.99

$

Usually ships in 3-6 days

0

20

MTD 951-11289

Gasket, Muffler
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

21

MTD 651-05263

Muffler
(Superseded to 951-05263)

$173.99

$

Usually ships in 3-6 days

0

22

MTD 712-05113

Nut, M8

$3.99

$

Usually ships in 3-6 days

0

23

MTD 751-14977

Exhaust Pipe
(Superseded to 951-14977)

$38.99

$

Usually ships in 3-6 days

0

24

MTD 921-04736

Gasket, Muffler

$5.99

$

Usually ships in 3-6 days

0

26

MTD 712-04214

Nut, M8

$4.49

$

In Stock, Qty 5

0

27

MTD 910-06277

Bolt, M6×12

$4.49

$

In Stock, Qty 9

0

28

MTD 951-14872

Front Bracket, Fuel Tank

$34.99

$

Usually ships in 3-6 days

0

29

MTD 708-05112A

Muffler Guard
(Superseded to 908-05112A)

$84.99

$

Usually ships in 3-6 days

0

86

MTD 910-06278

Bolt, M6×16

$4.49

$

Usually ships in 3-6 days

0

93

MTD 751-14997A

Fuel Tank Insulator
(Superseded to 951-14997A)

$11.99

$

Usually ships in 3-6 days

0

94

MTD 712-05015

Nut, M6

$6.99

$

In Stock, Qty 20+

0

95

MTD 951-14880

Fuel Tank Bracket

$15.99

$

Usually ships in 3-6 days

0

164

MTD 710-04918

Bolt, M6×20

$4.49

$

Usually ships in 3-6 days

0
