370-JU - Troy-Bilt Engine 370-JU Cylinder Head Parts Diagram

Engine

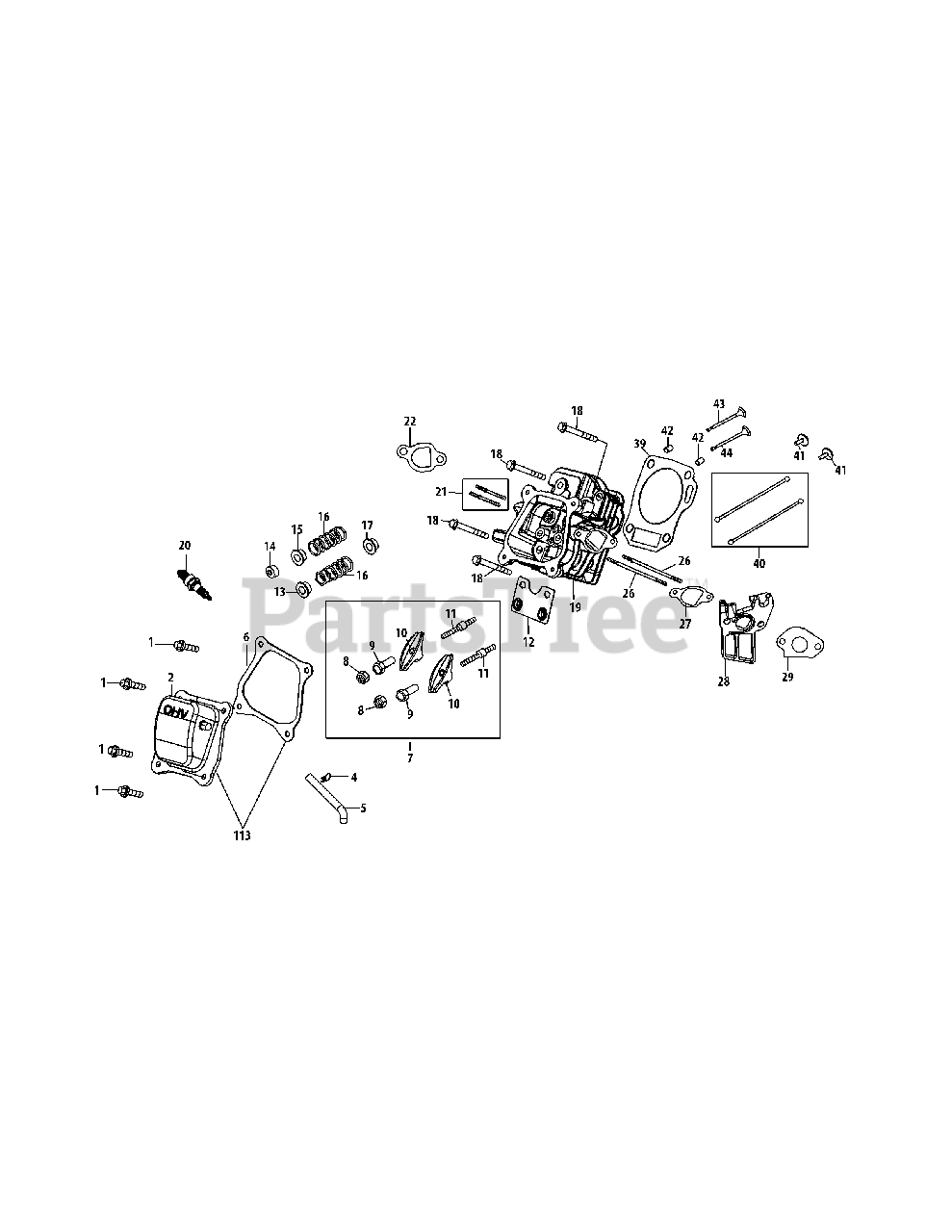

370-JU Cylinder Head Parts Diagram

  • Title

1

Troy-Bilt 710-04968

Bolt M6×16

$6.99

$

In Stock, only 3 left!

0

2

Troy-Bilt 951-11054

Valve Cover
(Superseded to 951-11054B)

$15.99

$

Usually ships in 3-6 days

0

4

Troy-Bilt 726-04101

Breather Hose Clamp

$4.49

$

Usually ships in 3-6 days

0

5

Troy-Bilt 731-07059

Breather Hose

$6.49

$

In Stock, only 2 left!

0

6

Troy-Bilt 951-11565

Valve Cover Gasket
(Superseded to 751P11565B)

$10.99

$

In Stock, Qty 10

0

7

Troy-Bilt 951-11892

Rocker Arm Assembly

$40.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 751-11124

Nut, Pivot Locking

$9.49

$

In Stock, only 2 left!

0

9

Troy-Bilt 751-11123

Adjusting Nut ,Valve

$10.99

$

In Stock, only 4 left!

0

10

Troy-Bilt 951-11893

Rocker Arm

$7.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 710-04902

Bolt, Pivot

$6.99

$

In Stock, only 4 left!

0

12

Troy-Bilt 951-11895

Push Rod Guide

$8.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 951-12000

Retainer, In.Valve Spring

$4.49

$

In Stock, only 1 left!

0

14

Troy-Bilt 951-12002

Adjuster, Exh Valve
(Superseded to 751P12002A)

$2.99

$

In Stock, Qty 12

0

15

Troy-Bilt 951-12003

Retainer, Ex.Valve Spring

$4.49

$

In Stock, only 1 left!

0

16

Troy-Bilt 951-12004

Valve Spring
(Superseded to 751P12004A)

$1.99

$

In Stock, Qty 5

0

17

Troy-Bilt 951-11894

Intake Valve Seal

$10.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-04933

Bolt M8×55

$3.99

$

In Stock, Qty 10

0

19

Troy-Bilt 951-10668A

Cylinder Head Assembly
(Superseded to 951-10722B)

Note: (Incl. Ref No.6,8-18,19,22,27,28,39,44 & 73)

$170.99

$

In Stock, only 1 left!

0

20

Troy-Bilt 951-10292

Spark Plug
(Superseded to 951-10292A)

$6.99

$

In Stock, Qty 20+

0

21

Troy-Bilt 710-05276

Muffler Stud M8×36
(Superseded to 710-04911)

$4.49

$

Usually ships in 3-6 days

0

21

Troy-Bilt 951-12027

Muffler Stud Assy
(Superseded to 951-14190)

$9.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 951-11289

Muffler Gasket
(Superseded to 751P11289A)

$2.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 710-05101

Carb Stud M6×110

$4.49

$

In Stock, only 4 left!

0

27

Troy-Bilt 951-11567

Carburetor Insulator Gasket
(Superseded to 751P11567B)

$1.99

$

In Stock, Qty 20+

0

28

Troy-Bilt 951-11568

Carburetor Insulator Plate
(Superseded to 751P11568A)

$3.49

$

In Stock, Qty 18

0

29

Troy-Bilt 951-11569

Carburetor Gasket
(Superseded to 951-11569A)

$5.99

$

In Stock, Qty 20+

0

39

Troy-Bilt 951-11572

Gasket, Cylinder Head

$11.99

$

In Stock, Qty 17

0

40

Troy-Bilt 951-10648

Push Rod Kit

$17.99

$

In Stock, only 3 left!

0

41

Troy-Bilt 951-11899

Tappet

$8.49

$

In Stock, only 4 left!

0

42

Troy-Bilt 715-04090

Dowel Pin 10×16
(Superseded to 715-04108)

$4.49

$

In Stock, only 1 left!

0

43

Troy-Bilt 951-10647

Valve Kit
(Superseded to 951-10647A)

$64.99

$

Usually ships in 3-6 days

0

113

Troy-Bilt 951-11063

Valve Cover Kit
(Superseded to 951-12626)

$28.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-12026

Gasket Kit - External
(Superseded to 951-12026A)

Note: (Incl. Ref No. 6,22,27-29,34 & 71) Not shown

$31.99

$

Usually ships in 3-6 days

0

Troy-Bilt 951-11059A

Gasket Kit Complete

Note: (Incl. Ref No. 6,22,27-29,34,39,53,54,63,69,71 & 73) Not shown

$52.99

$

In Stock, only 1 left!

0

Troy-Bilt 751-12101

Short Block
(Superseded to 951-12101)

Note: (Incl. Ref No. 6,22,27,28,39,41,42,45-48,51-66,69-73) Not shown

$

$

Not available

Troy-Bilt 952Z370-JU

Complete Engine
(Superseded to 952Z370-JUA)

Note: Not shown

$849.99

$

Usually ships in 3-6 days

0
