37-4810 - Toro Electric Start Kit MOTOR ASSEMBLY Parts Diagram

Electric Start Kit

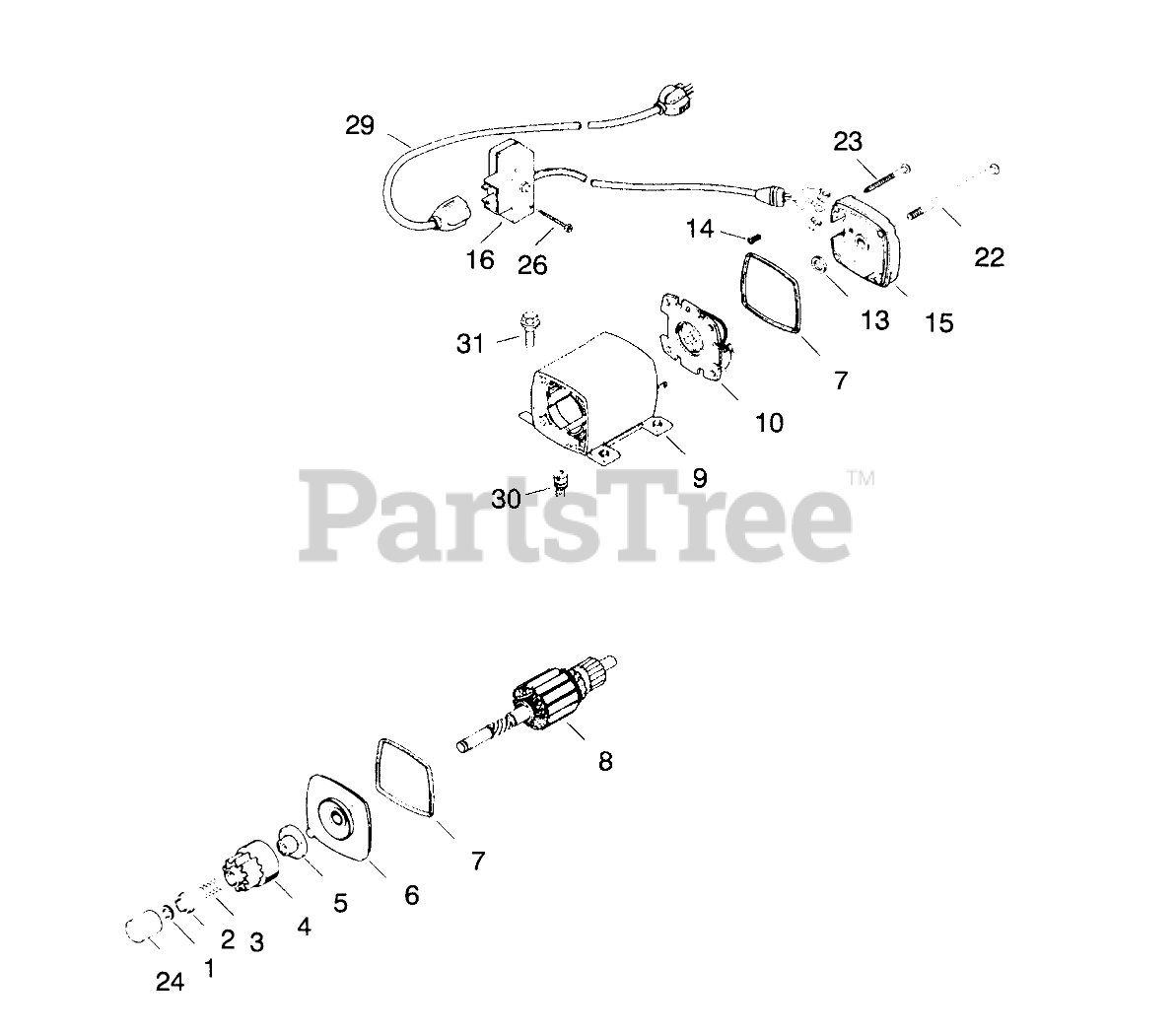

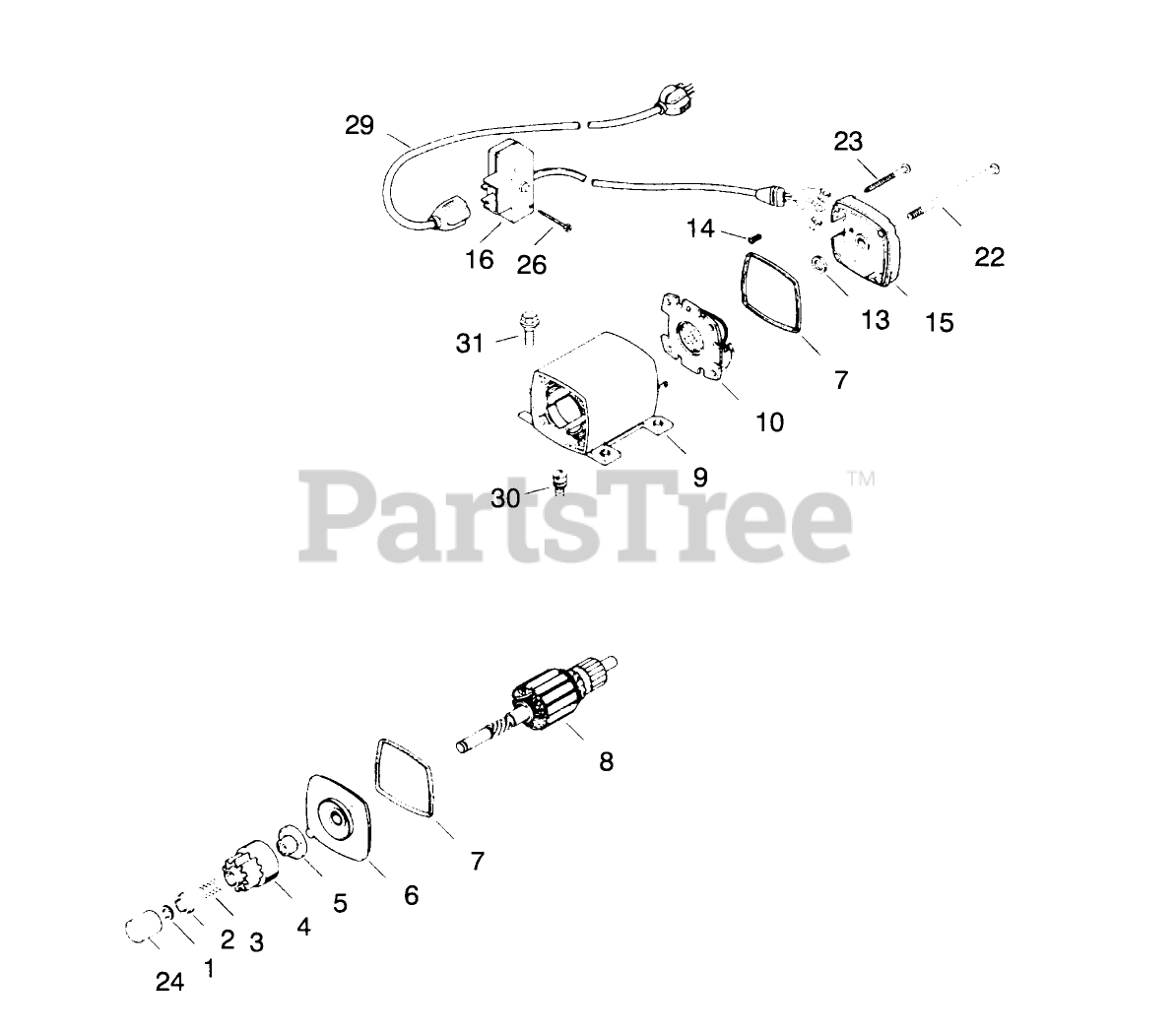

MOTOR ASSEMBLY Parts Diagram

  • Title

1

Tecumseh 33842

Ring-Retainer

Note: Obtain parts from Tecumseh Authorized Dealer

$3.99

$

In Stock, Qty 5

0

2

Tecumseh 33430

Retainer-Spring
(Superseded to 33843)

Note: Obtain parts from Tecumseh Authorized Dealer

$7.99

$

In Stock, only 1 left!

0

3

Tecumseh 33431

Spring-Anti Drift

Note: Obtain parts from Tecumseh Authorized Dealer

$3.99

$

Usually ships in 3-12 days

0

4

Tecumseh 33432

Gear

Note: Obtain parts from Tecumseh Authorized Dealer

$40.99

$

Usually ships in 3-12 days

0

5

Tecumseh 33433

Nut-Engaging
(Superseded to 33433A)

Note: Obtain parts from Tecumseh Authorized Dealer

$19.99

$

Usually ships in 3-12 days

0

6

Tecumseh 35449

Cap Assembly-Cap End (Incl. Ref. #7)

Note: Obtain parts from Tecumseh Authorized Dealer

$36.99

$

Usually ships in 3-12 days

0

7

Tecumseh 35450

O-Ring

Note: Obtain parts from Tecumseh Authorized Dealer

$3.99

$

Usually ships in 3-12 days

0

8

Toro 335541A

Armature

Note: Obtain parts from Tecumseh Authorized Dealer

$

$

Currently unavailable

9

Tecumseh 35451

Housing Assy.
(Superseded to 33329E)

Note: Obtain parts from Tecumseh Authorized Dealer

$

$

Not available

10

Tecumseh 35452

Card ASM
(Superseded to 35452A)

Note: Obtain parts from Tecumseh Authorized Dealer

$58.99

$

In Stock, only 1 left!

0

13

Tecumseh 590500

Washer-Thrust

Note: Obtain parts from Tecumseh Authorized Dealer

$1.99

$

In Stock, only 1 left!

0

14

Tecumseh 33441

Screw-Ground

Note: Obtain parts from Tecumseh Authorized Dealer

$

$

Not available

15

Tecumseh 35453

Cap Assembly Commutator End (Incl. Ref. #7)

Note: Obtain parts from Tecumseh Authorized Dealer

$41.99

$

Usually ships in 3-12 days

0

16

Tecumseh 35454

Switch Box ASM

Note: Obtain parts from Tecumseh Authorized Dealer

$

$

Not available

22

Tecumseh 35455

Bolt-Case

Note: Obtain parts from Tecumseh Authorized Dealer

$

$

Not available

23

Tecumseh 35456

Screw-Ground

Note: Obtain parts from Tecumseh Authorized Dealer

$1.99

$

In Stock, only 3 left!

0

24

Tecumseh 33451

Cover-Dust

Note: Obtain parts from Tecumseh Authorized Dealer

$3.49

$

In Stock, only 4 left!

0

26

Tecumseh 650819

Screw

Note: Obtain parts from Tecumseh Authorized Dealer

$1.99

$

Usually ships in 3-12 days

0

29

Tecumseh 32450A

Cord-Extension
(Superseded to 32450B)

Note: Obtain parts from Tecumseh Authorized Dealer

$

$

Not available

30

Tecumseh 30063

Screw

Note: Obtain parts from Tecumseh Authorized Dealer

$1.99

$

In Stock, Qty 20+

0

31

Tecumseh 650820

Screw (1/4-20x1/2)

Note: Obtain parts from Tecumseh Authorized Dealer

$3.99

$

In Stock, Qty 15

0
