37-07BR01 - Toro 30" Rear Bagger (1988) 200-SERIES TWIN REAR GRASS BAGGER-37 IN./94 CM MOWER (VEHICLE IDENTIFICATION NUMBER 37-07BL01) Parts Diagram

30" Rear Bagger

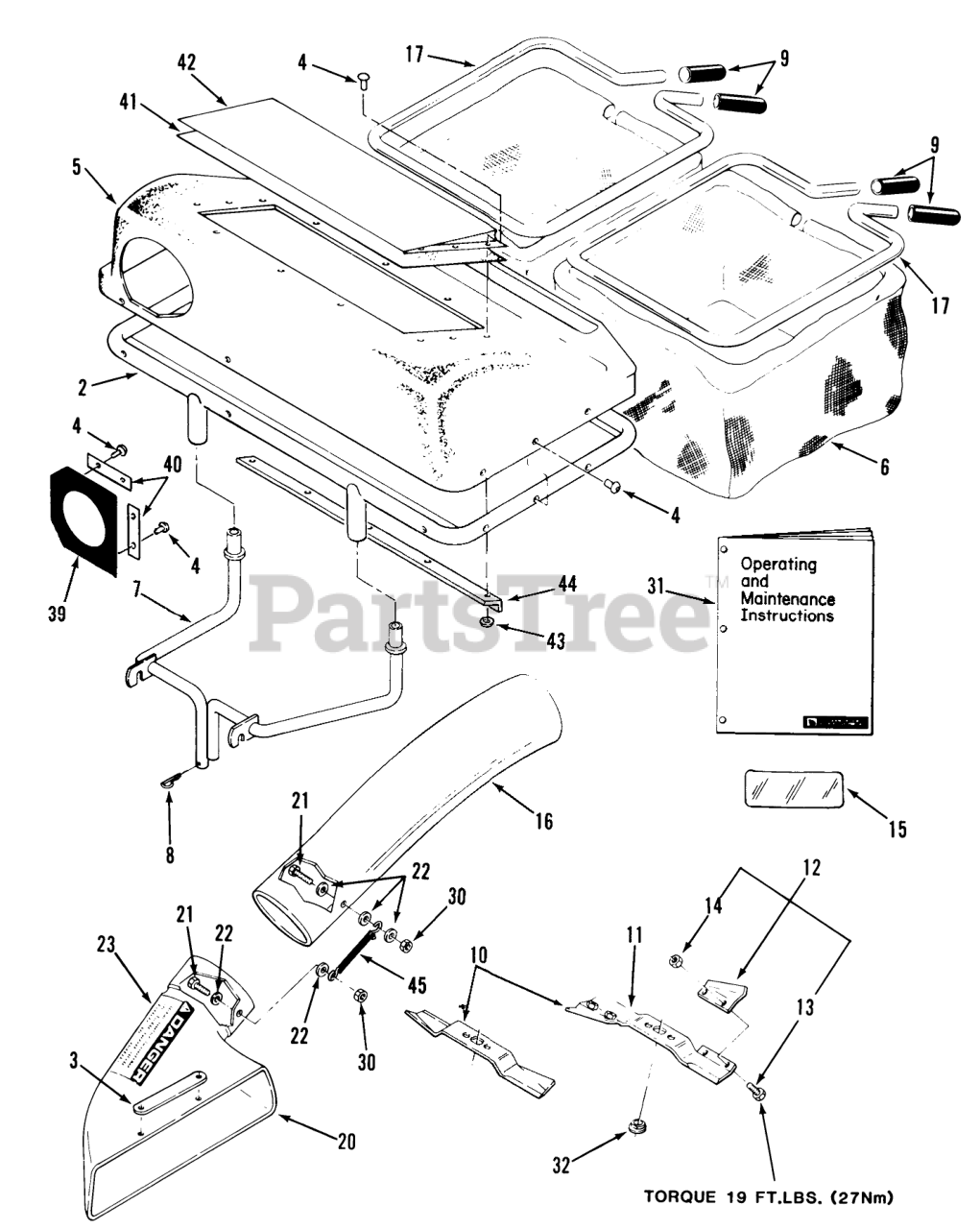

200-SERIES TWIN REAR GRASS BAGGER-37 IN./94 CM MOWER (VEHICLE IDENTIFICATION NUMBER 37-07BL01) Parts Diagram

  • Title

2

Toro 113428

Frame

$

$

Not available

3

Toro 113840

PLATE-ELBOW B

Note: Indicates Part of Loose Parts Package 807169.

$

$

Not available

4

Toro 114439

RIVET-BLIND

$1.49

$

In Stock, Qty 20+

0

5

Toro 114253

TOP-BAG'R (37")

$

$

Not available

6

Toro 113434

BAG-BLACK(37"TWIN)

$

$

Not available

7

Toro 111599

ASY-QUICK ATTACH B

$

$

Not available

8

Toro 933506

Hairpin
(Superseded to 9335064)

Note: Indicates Part of Loose Parts Package 807169.

$2.49

$

In Stock, Qty 11

0

9

Toro 6528

GRIP

$7.99

$

Usually ships in 3-6 days

0

10

Toro 112398

Blade Kit (includes LH blade, RH blade with tabs, hardware and spacer)

$

$

Not available

11

Toro 108846

High Lift Blade (includes item 12) RH

$

$

Not available

12

Toro 105194

Lift Tab Kit (includes items 13 & 14)

$107.99

$

Usually ships in 3-6 days

0

13

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

14

Toro 108687

NUT-LOCK 5/16-18

$1.49

$

Usually ships in 3-6 days

0

15

Toro 112403

DECAL-OVERLAY

$7.49

$

Usually ships in 3-6 days

0

16

Toro 114236

Tube (includes items 21, 22 & 30)

$

$

Not available

17

Toro 113432

FRAME BAG B
(Superseded to 113432-03)

$

$

Not available

20

Toro 114238

Elbow (includes items 21, 22, 23 & 30)

$

$

Not available

21

Toro 908005

Bolt
(Superseded to 321-6)

$0.99

$

In Stock, Qty 20+

0

22

Toro 920007

USE 920007P WASHER
(Superseded to 3256-22)

$0.99

$

In Stock, Qty 20+

0

23

Toro 113914

DECAL-DANGER

$

$

Not available

30

Toro 915661

Nut
(Superseded to 3296-42)

$0.99

$

In Stock, Qty 20+

0

31

Toro 810528R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 807169.

$

$

Currently unavailable

32

Toro 109916

SPACER BLADE

Note: Indicates Part of Loose Parts Package 807169.

$56.99

$

Usually ships in 3-6 days

0

39

Toro 114383

SEAL-CHUTE

$

$

Not available

40

Toro 114382

STRAP-SEAL

$

$

Not available

41

Toro 114361

Top Screen

$

$

Not available

42

Toro 114362

Screen Cover

$

$

Not available

43

Toro 920270

Washer
(Superseded to 9202704)

$1.49

$

In Stock, Qty 8

0

44

Toro 114381

Top Stiffener

$

$

Not available

45

Toro 111340

STRAP

$

$

Not available
