37-06BR01 - Toro 30" Rear Bagger (1987) A & 100-SERIES TWIN REAR GRASS BAGGER-30 IN./76 CM MOWER (VEHICLE IDENTIFICATION NUMBER 37-06BR01) Parts Diagram

30" Rear Bagger

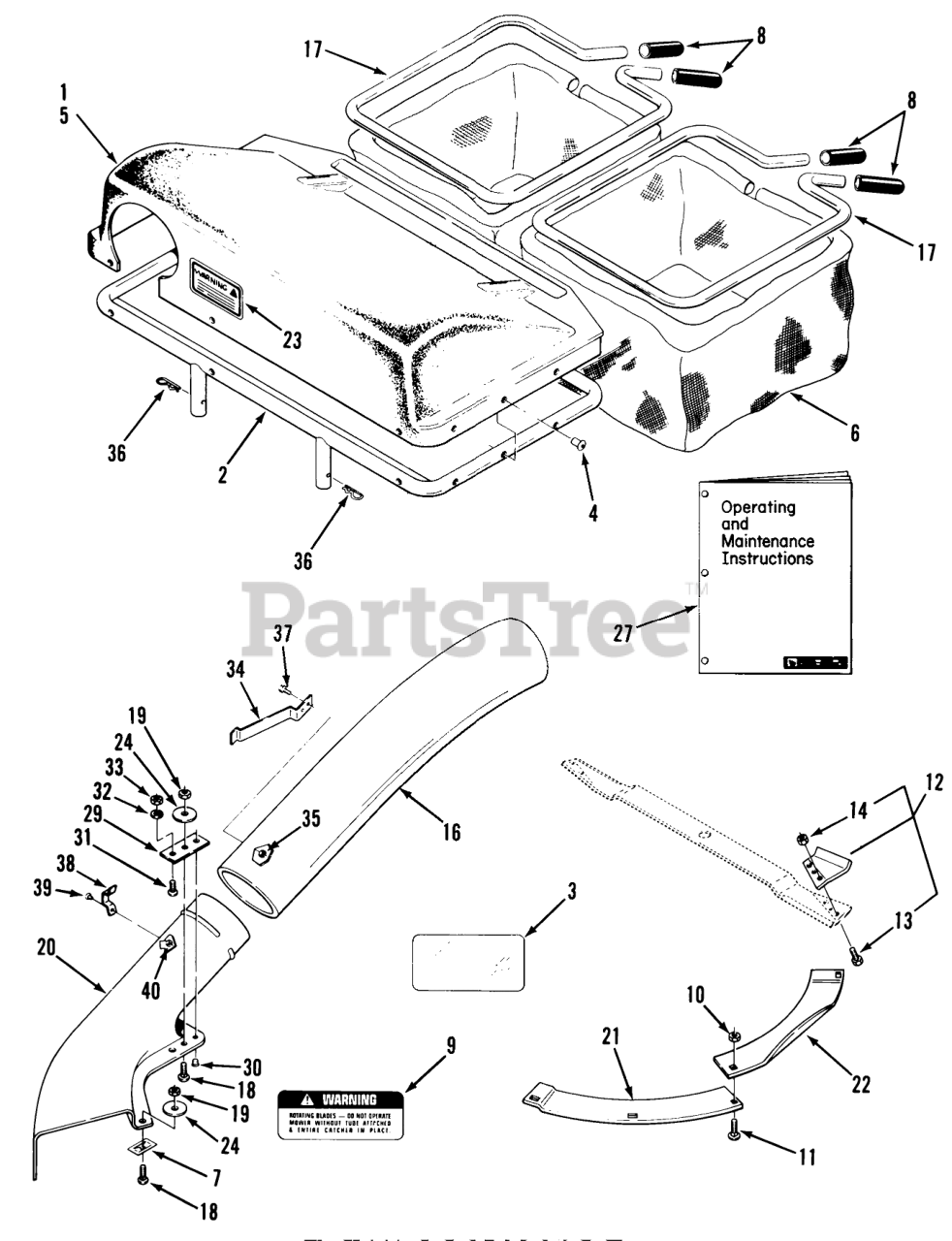

A & 100-SERIES TWIN REAR GRASS BAGGER-30 IN./76 CM MOWER (VEHICLE IDENTIFICATION NUMBER 37-06BR01) Parts Diagram

  • Title

1

Toro 112992

Top Assembly (Includes Items 2, 4 & 5)

$

$

Not available

2

Toro 112993

Frame

$

$

Not available

3

Toro 112403

DECAL-OVERLAY

$8.49

$

Usually ships in 3-6 days

0

4

Toro 923802

RIVET

$

$

Not available

5

Toro 113387

Top

$

$

Not available

6

Toro 113363

Bag
(Superseded to 114422)

$

$

Not available

7

Toro 106535

SPEED NUT 1/4-20

Note: Indicates Part of Loose Parts Package 807135.

$

$

Not available

8

Toro 6528

GRIP

$9.49

$

Usually ships in 3-6 days

0

9

Toro 111681

Decal-Warning
(Superseded to 113-914)

$3.23

$

Usually ships in 3-6 days

0

10

Toro 915112

Nut
(Superseded to 3217-6)

Note: Indicates Part of Loose Parts Package 807135.

$1.49

$

In Stock, Qty 12

0

11

Toro 900037

Bolt
(Superseded to 3230-1)

Note: Indicates Part of Loose Parts Package 807135.

$1.99

$

In Stock, Qty 20+

0

12

Toro 110974

Lift Tab Kit (Includes 13 & 14)

Note: Indicates Part of Loose Parts Package 807135.

$78.99

$

Usually ships in 3-6 days

0

13

Toro 108686

BOLT 5/16-18X5/8

Note: Indicates Part of Loose Parts Package 807135.

$8.99

$

Usually ships in 3-6 days

0

14

Toro 108687

NUT-LOCK 5/16-18

Note: Indicates Part of Loose Parts Package 807135.

$1.49

$

Usually ships in 3-6 days

0

16

Toro 113003

TUBE-BAGGER

$

$

Not available

17

Toro 113364

Bag Frame

$

$

Not available

18

Toro 900015

Bolt-Carriage
(Superseded to 3229-1)

Note: Indicates Part of Loose Parts Package 807135.

$3.99

$

In Stock, Qty 20+

0

19

Toro 915661

Nut
(Superseded to 3296-42)

Note: Indicates Part of Loose Parts Package 807135.

$0.99

$

In Stock, Qty 12

0

20

Toro 112999

Elbow Assy (Includes Items 29-33, 38, 39 & 40)

$

$

Not available

21

Toro 110155

PLATE MOWER RING B (NS)
(Superseded to 110155-03)

$53.99

$

In Stock, only 1 left!

0

22

Toro 110156

PLATE MOWER B

$15.99

$

In Stock, only 1 left!

0

23

Toro 108627

DECAL-WARNING

$

$

Not available

24

Toro 103995

WASHER

Note: Indicates Part of Loose Parts Package 807135.

$9.49

$

In Stock, only 2 left!

0

27

Toro 810490R1

Operating and Maintenance Instructions

Note: Indicates Part of Loose Parts Package 807135.

$

$

Currently unavailable

29

Toro 110477

PLATE

$

$

Not available

30

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

31

Toro 910796

Screw
(Superseded to 9107964)

$1.49

$

Usually ships in 3-6 days

0

32

Toro 920079

Lockwasher
(Superseded to 3253-17)

$0.99

$

In Stock, Qty 6

0

33

Toro 915538

Hex Nut
(Superseded to 3217-26)

$1.99

$

In Stock, only 2 left!

0

34

Toro 109625

SPRING-TUBE

Note: Indicates Part of Loose Parts Package 807135.

$

$

Not available

35

Toro 915740

Nut
(Superseded to 3296-2)

Note: Indicates Part of Loose Parts Package 807135.

$2.49

$

In Stock, Qty 20+

0

36

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.49

$

In Stock, Qty 5

0

37

Toro 910792

Screw
(Superseded to 910790)

Note: Indicates Part of Loose Parts Package 807135.

$0.99

$

In Stock, only 2 left!

0

38

Toro 109628

BRACKET

$9.99

$

Usually ships in 3-6 days

0

39

Toro 923732

Poprivet 5/32 x .379

$

$

Currently unavailable

40

Toro 920003

WASHER

$

$

Not available
