37-06BA04 - Toro 30" Bagger, 100 Series (SN: 039000001 - 039999999) (1993) A & 100-SERIES REAR GRASS BAGGER-30 IN. Parts Diagram

30" Bagger, 100 Series

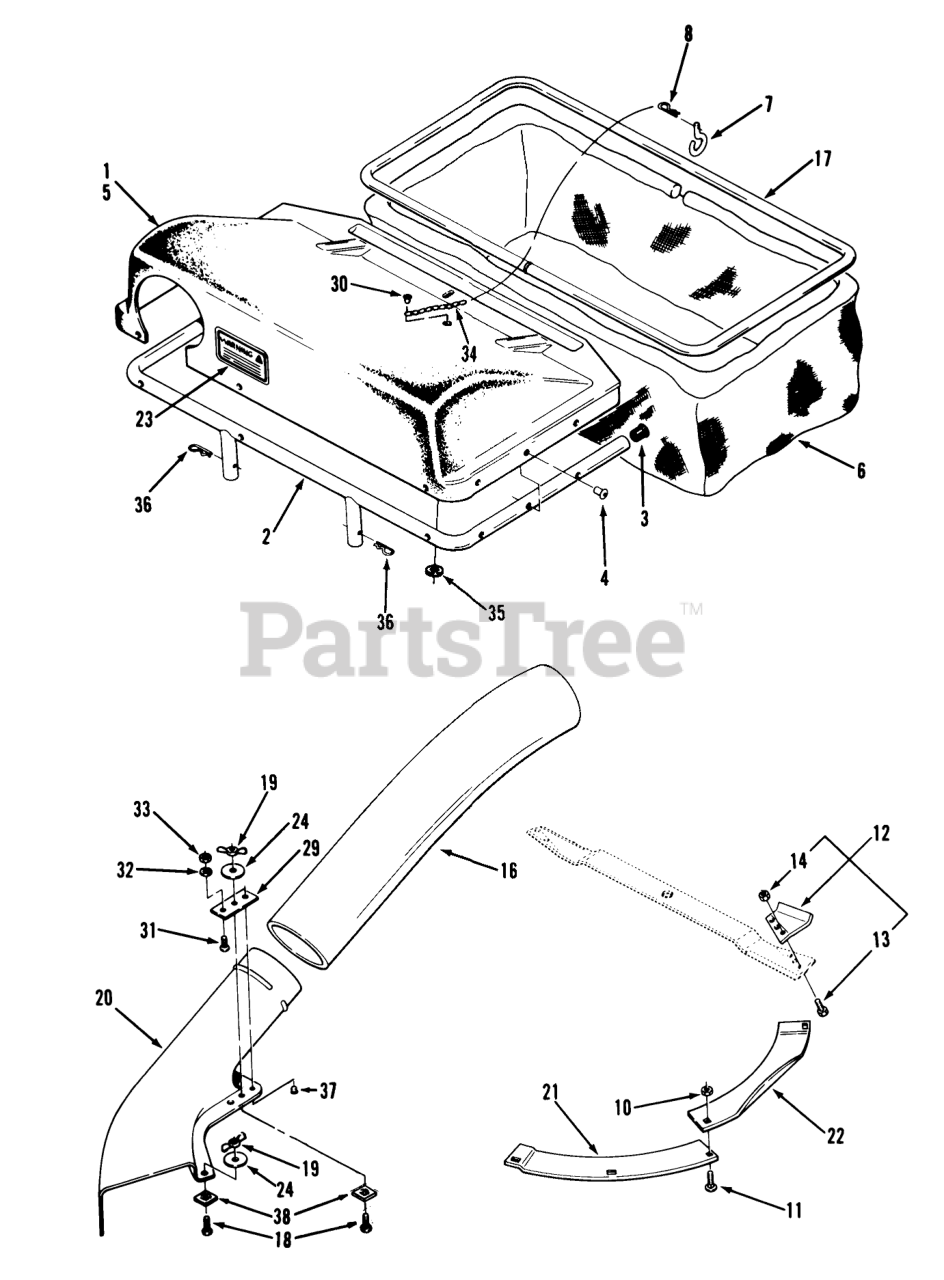

A & 100-SERIES REAR GRASS BAGGER-30 IN. Parts Diagram

  • Title
1

Toro 111092

Top Assembly (Includes Items #2-5, 30, 34 & 35)

$941.99

$

Usually ships in 3-6 days

0

2

Toro 111094

Frame

$

$

Not available

3

$

$

Not available

4

Toro 3296-21

NUT-HEX

$0.99

$

Usually ships in 3-6 days

0

5

Toro 111093

TOP BAGGER

$681.99

$

Usually ships in 3-6 days

0

6

Toro 110153

Bag-White
(Superseded to 112176)

$

$

Not available

Toro 112176

BAG-(BLACK)

$

$

Not available

7

Toro 111091

LATCH PIN

$

$

Not available

8

Toro 933505

Hairpin Cotter
(Superseded to 9335054)

$1.99

$

In Stock, Qty 20+

0

9

Toro 549220

Decal-Danger

$

$

Currently unavailable

10

Toro 3217-6

NUT-HEX

$1.49

$

In Stock, Qty 12

0

11

Toro 3230-1

BOLT-CARR

$1.99

$

In Stock, Qty 20+

0

12

Toro 110974

Lift Tab Kit (Includes 13 & 14)

$78.99

$

Usually ships in 3-6 days

0

13

Toro 108686

BOLT 5/16-18X5/8

$8.99

$

Usually ships in 3-6 days

0

14

Toro 108687

NUT-LOCK 5/16-18

$1.49

$

Usually ships in 3-6 days

0

16

Toro 110150

TUBE COLLECTOR

$

$

Not available

17

Toro 110179

FRAME BAG B

$

$

Not available

18

Toro 3229-25

SCREW-CARR
(Superseded to 3229-1)

$3.99

$

In Stock, Qty 20+

0

19

Toro 32103-19

WING NUT

$1.99

$

In Stock, only 2 left!

0

20

Toro 78-3360

Elbow Assembly (Includes Items 29-33)

$319.99

$

Usually ships in 3-6 days

0

21

Toro 110155

PLATE MOWER RING B (NS)
(Superseded to 110155-03)

$53.99

$

In Stock, only 1 left!

0

22

Toro 110156

PLATE MOWER B

$15.99

$

In Stock, only 1 left!

0

23

Toro 108627

DECAL-WARNING

$

$

Not available

24

Toro 103995

WASHER

$9.49

$

In Stock, only 2 left!

0

29

Toro 110477

PLATE

$

$

Not available

30

Toro 923786

RIVET
(Superseded to 3269-24)

$2.99

$

In Stock, Qty 12

0

31

Toro 910796

Screw
(Superseded to 9107964)

$1.49

$

Usually ships in 3-6 days

0

32

Toro 3253-17

WASHER-LOCK

$0.99

$

In Stock, Qty 6

0

33

Toro 3217-26

NUT-HEX

$1.99

$

In Stock, only 2 left!

0

34

Toro 111097

CHAIN MAKE FRM111098

$

$

Not available

35

Toro 920266

Washer

$

$

Not available

36

Toro 933507

Pin-Cotter
(Superseded to 9335074)

$5.49

$

In Stock, Qty 5

0

37

Toro 923785

RIVET -4

$1.49

$

Usually ships in 3-6 days

0

38

Toro 106535

SPEED NUT 1/4-20

$

$

Not available
