36929 - Gravely 50" Deck for Pro-Walk Mower MOWER FRAME Parts Diagram

50" Deck for Pro-Walk Mower

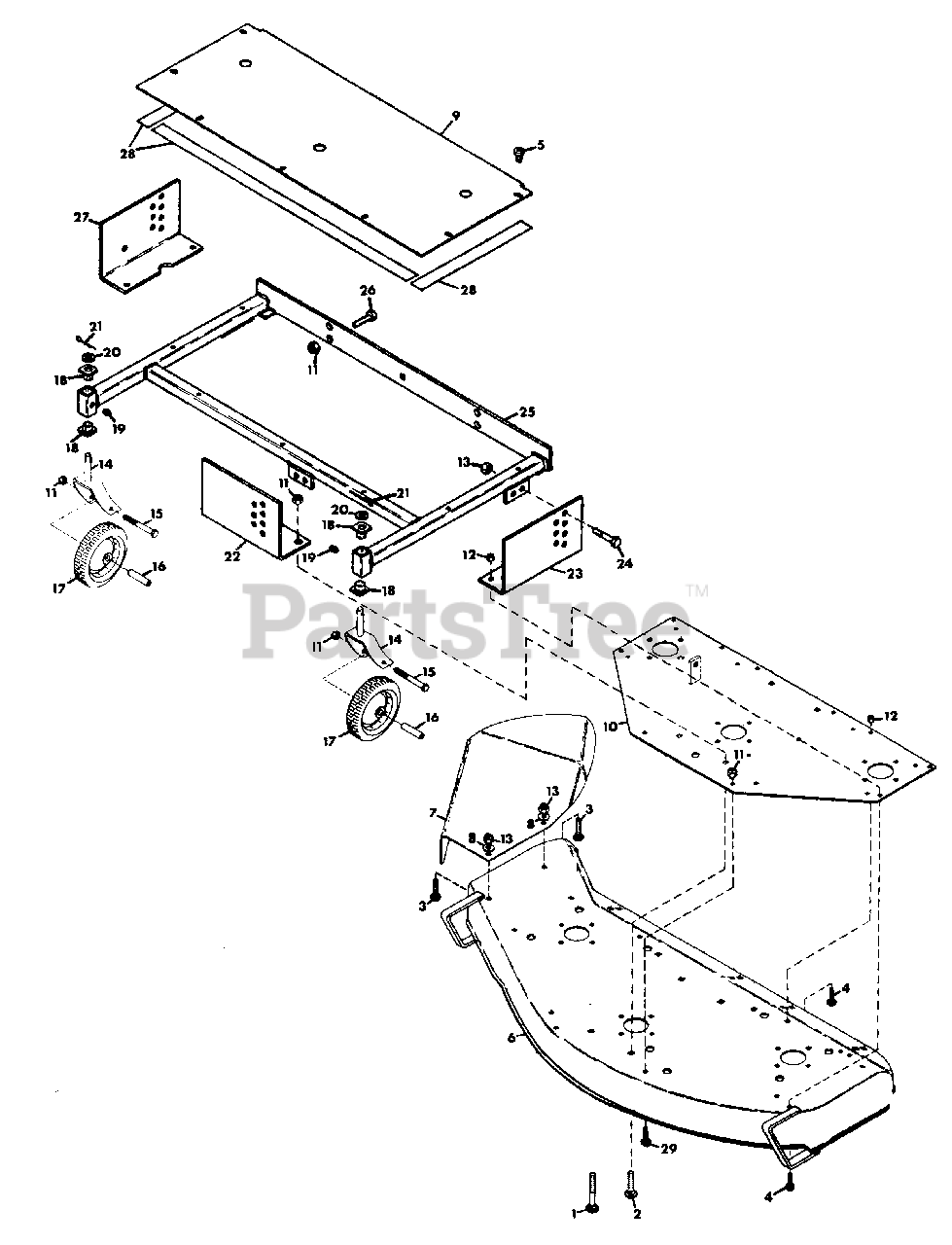

MOWER FRAME Parts Diagram

  • Title

1

Gravely 126803

BOLT, 1/2-13X3.50 RD HD SQ NK
(Superseded to 06218500)

$5.99

$

In Stock, only 1 left!

0

2

Gravely 126475

BOLT, 1/2-13X1.00 RD HD SQ NK
(Superseded to 06224600)

$3.99

$

In Stock, only 3 left!

0

3

Gravely 126227

BOLT, CARRIAGE 3/8-16X.75
(Superseded to 06200312)

$1.49

$

In Stock, only 4 left!

0

4

Gravely 126358

BOLT, CARRIAGE 5/16-18X1.00
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0

5

Gravely 167257

SCREW, 1/4-20X.50
(Superseded to 07410400)

$2.49

$

In Stock, Qty 13

0

6

Gravely 035181

WELDMENT, 50" DECK
(Superseded to 58810100)

$775.99

$

Usually ships in 4-12 days

0

7

Gravely 019985

SHIELD, SAFETY EXT. 50" MOWER

$

$

Not available

8

Gravely 120394

WASHER, FLAT .406X.812X.065
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

9

Gravely 034946

GUARD, 50" MOWER BELT
(Superseded to 20614800)

$

$

Not available

10

Gravely 035179

WELDMENT, SUPPORT PLATE
(Superseded to 21252200)

$225.99

$

Usually ships in 4-12 days

0

11

Gravely 435507

NUT, LOCK 1/2-13
(Superseded to 06500830)

$2.49

$

In Stock, only 3 left!

0

12

Gravely 419455

NUT, LOCK 5/16-18
(Superseded to 06500820)

$0.99

$

In Stock, Qty 20+

0

13

Gravely 456004

NUT, LOCK 3/8-16
(Superseded to 06500831)

$2.49

$

In Stock, only 3 left!

0

14

Gravely 034278

WELDMENT, CASTER FORK
(Superseded to 21224000)

$

$

Not available

15

Gravely 433163

BOLT, HEX 1/2-13X5
(Superseded to 05901905)

$4.99

$

In Stock, Qty 20+

0

16

Gravely 011950

BUSHING, WHEEL
(Superseded to 09023500)

$25.99

$

Usually ships in 4-12 days

0

17

Gravely 023696

WHEEL, GAUGE
(Superseded to 07128100)

$

$

Not available

18

Gravely 025148

BEARING, FLANGED
(Superseded to 05519300)

$6.99

$

In Stock, only 3 left!

0

19

Gravely 411027

FITTING, LUBE 1/4-28
(Superseded to 07012600)

$

$

Not available

20

Gravely 423315

WASHER, FLAT .812X1.375X.100
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

21

Gravely 103409

PIN, COTTER .187X1.50
(Superseded to 06712800)

$1.99

$

In Stock, only 2 left!

0

22

Gravely 034932

BRACKET, FRONT SUPPORT
(Superseded to 20614000)

$31.99

$

Usually ships in 4-12 days

0

23

Gravely 034933

BRACKET, SIDE SUPPORT L.H.
(Superseded to 20614100)

$

$

Not available

24

Gravely 180122

BOLT, HEX 3/8-16X1.00
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

25

Gravely 034940

WELDMENT, FRAME SUPPORT
(Superseded to 20614300)

$138.99

$

Usually ships in 4-12 days

0

26

Gravely 180177

BOLT, HEX 1/2-13X1.50
(Superseded to 05901631)

$3.99

$

Usually ships in 4-12 days

0

27

Gravely 034934

BRACKET, SIDE SUPPORT R.H.

$

$

Not available

28

Gravely 035043

TAPE, VINYL FOAM(75' ROLL)
(Superseded to 00921700)

Note: (75' ROLL)

$

$

Not available

29

Gravely 180175

BOLT, HEX 1/2-13X1.25
(Superseded to 05901637)

$3.49

$

In Stock, only 1 left!

0

NS

Gravely 024608

DECAL, GRAVELY LOGO
(Superseded to 02460800)

$28.99

$

Usually ships in 4-12 days

0

NS

Gravely 034926

DECAL, DANGER HAND
(Superseded to 20613900)

$

$

Not available

NS

Gravely 034927

DECAL, DANGER FOOT

$

$

Not available

NS

Gravely 034928

DECAL, WARNING EYE

$

$

Not available
