3660 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Kohler Head / Valve / Breather Parts Diagram

60" Zero-Turn Mower

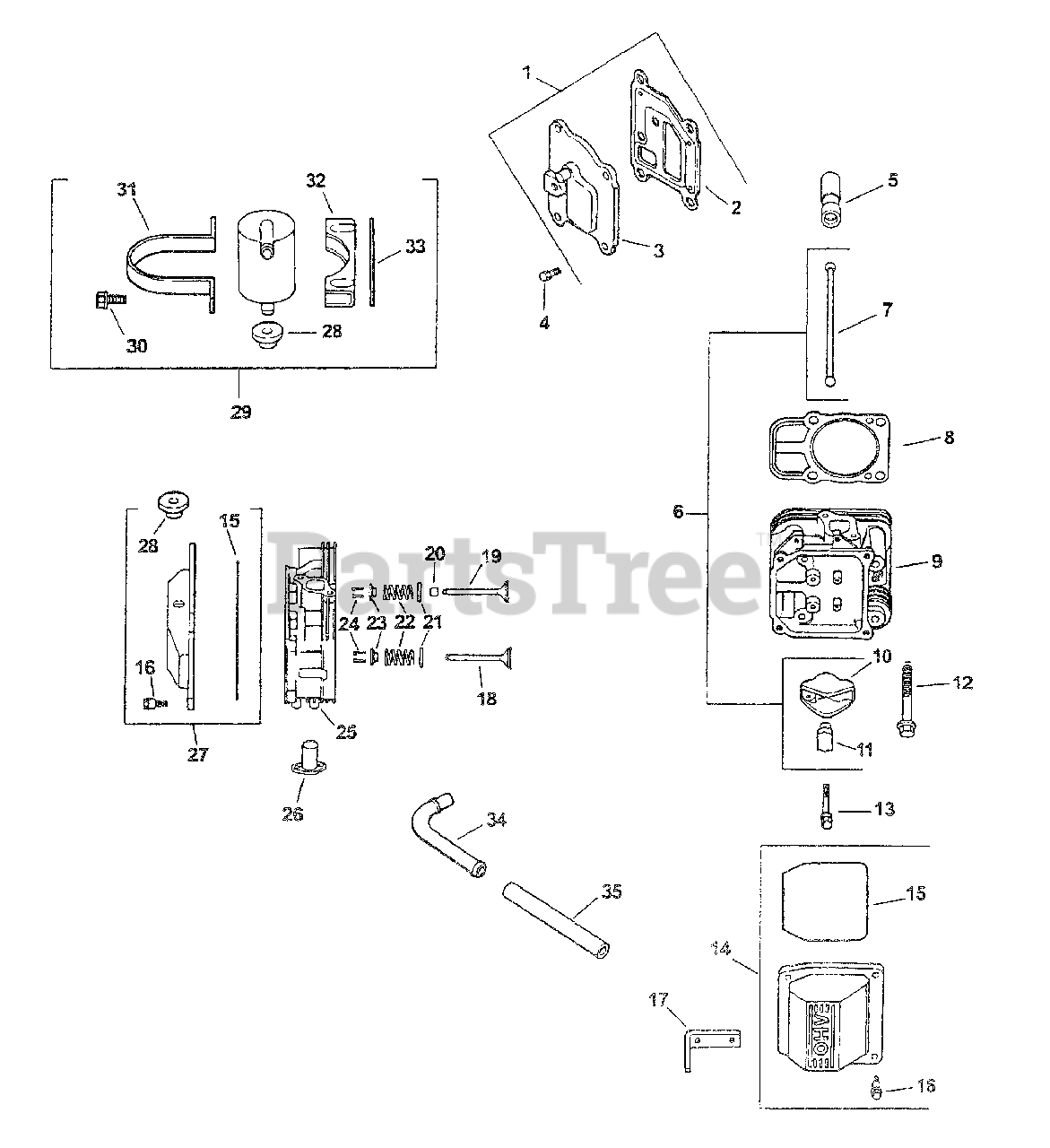

Kohler Head / Valve / Breather Parts Diagram

  • Title

1

Cub Cadet KH-24-033-03

Kit, Breather Cover w/Gaskets

$

$

Not available

2

Cub Cadet KH-24-041-23

Gasket, Breather
(Superseded to KH-24-041-67-S)

$13.99

$

In Stock, Qty 9

0

3

Cub Cadet KH-24-096-59

Cover, Breather
(Superseded to KH-24-033-01)

$

$

Not available

4

Cub Cadet KH-M-645020-S

Screw, Hex Flange
(Superseded to KH-25-086-396-S)

$2.49

$

In Stock, only 1 left!

0

5

Cub Cadet KH-25-351-01

Lifter, Valve
(Superseded to KH-25-351-11-S)

$23.99

$

In Stock, only 4 left!

0

6

Cub Cadet KH-24-755-66

Kit, Valve Train

$

$

Not available

7

Cub Cadet KH-24-411-05

Rod, Push

$

$

Not available

8

Cub Cadet KH-24-041-37-S

Gasket, Cylinder Head
(Superseded to KH-24-841-04-S)

$45.99

$

In Stock, Qty 20+

0

9

Cub Cadet KH-24-318-18-S

Head Assembly, #2 Cylinder
(Superseded to KH-24-318-116-S)

$

$

Not available

10

Cub Cadet KH-25-186-01

Arm, Rocker

$

$

Not available

11

Cub Cadet KH-24-599-01

Pivot, Rocker Arm
(Superseded to KH-24-599-02-S)

$2.49

$

In Stock, Qty 8

0

12

Cub Cadet KH-24-086-44-S

Screw, Hex Flange

$

$

Not available

13

Cub Cadet KH-M-0640034

Screw, Hex Flange

$

$

Not available

14

Cub Cadet KH-24-755-74

Kit, Valve Cover - Plain
(Superseded to KH-24-755-141-S)

$35.99

$

In Stock, only 2 left!

0

15

Cub Cadet KH-24-153-16

O-Ring
(Superseded to KH-24-153-23-S)

$18.99

$

In Stock, only 1 left!

0

16

Cub Cadet KH-24-086-32

Screw, Shoulder

$

$

Not available

17

Cub Cadet KH-24-445-01

Strap, Lifting
(Superseded to KH-25-445-03-S)

$

$

Not available

18

Cub Cadet KH-24-016-01

Valve, Exhaust
(Superseded to KH-32-016-01-S)

Note: (Std.)

$15.99

$

In Stock, only 4 left!

0

Cub Cadet KH-24-016-02

Valve, Exhaust (.25)

$

$

Not available

19

Cub Cadet KH-24-017-01

Valve, Intake

Note: (Std.)

$

$

Not available

Cub Cadet KH-24-017-02

Valve, Intake (.25)

$

$

Not available

20

Cub Cadet KH-24-032-05

Seal, Valve Stem
(Superseded to KH-25-032-14-S)

$11.99

$

In Stock, Qty 8

0

21

Cub Cadet KH-235011-S

Retainer, Spring

$6.49

$

In Stock, only 2 left!

0

22

Cub Cadet KH-24-089-02

Spring, Valve

$

$

Not available

23

Cub Cadet KH-12-173-01

Cap, Valve Spring
(Superseded to KH-25-173-28-S)

$8.49

$

In Stock, Qty 5

0

24

Cub Cadet KH-12-755-03

Kit, Retainer

$5.99

$

In Stock, only 2 left!

0

25

Cub Cadet KH-24-318-17-S

Head Assembly, #1 Cylinder
(Superseded to KH-24-318-196-S)

$212.99

$

Usually ships in 3-6 days

0

26

Cub Cadet KH-24-605-01-S

Liner, Exhaust Port
(Superseded to KH-24-605-07-S)

$17.99

$

In Stock, only 2 left!

0

27

Cub Cadet KH-24-755-76

Kit, Valve Cover - Breather
(Superseded to KH-24-755-142-S)

$38.99

$

In Stock, only 1 left!

0

28

Cub Cadet KH-25-313-02

Grommet, Rubber
(Superseded to KH-25-313-03-S)

$11.99

$

In Stock, only 3 left!

0

29

Cub Cadet KH-24-755-57-S

Kit, Breather Separator
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

30

Cub Cadet KH-M-545016-S

Screw, Hex Flange
(Superseded to KH-25-086-398-S)

$3.99

$

Usually ships in 2-5 days

0

31

Cub Cadet KH-24-445-02

Strap, Breather
(Superseded to KH-24-755-241-S)

$90.99

$

In Stock, Qty 7

0

32

Cub Cadet KH-24-126-44

Bracket, Breather Separator

$

$

Not available

33

Cub Cadet KH-24-112-12

Spacer

$

$

Not available

34

Cub Cadet KH-24-294-01

Fitting

$

$

Not available

35

Cub Cadet KH-24-326-03

Hose, Flexible
(Superseded to KH-24-326-63-S)

$6.99

$

In Stock, only 2 left!

0
