3660 (53AB5B8J100) - Cub Cadet 60" Zero-Turn Mower Kohler Fuel System Parts Diagram

60" Zero-Turn Mower

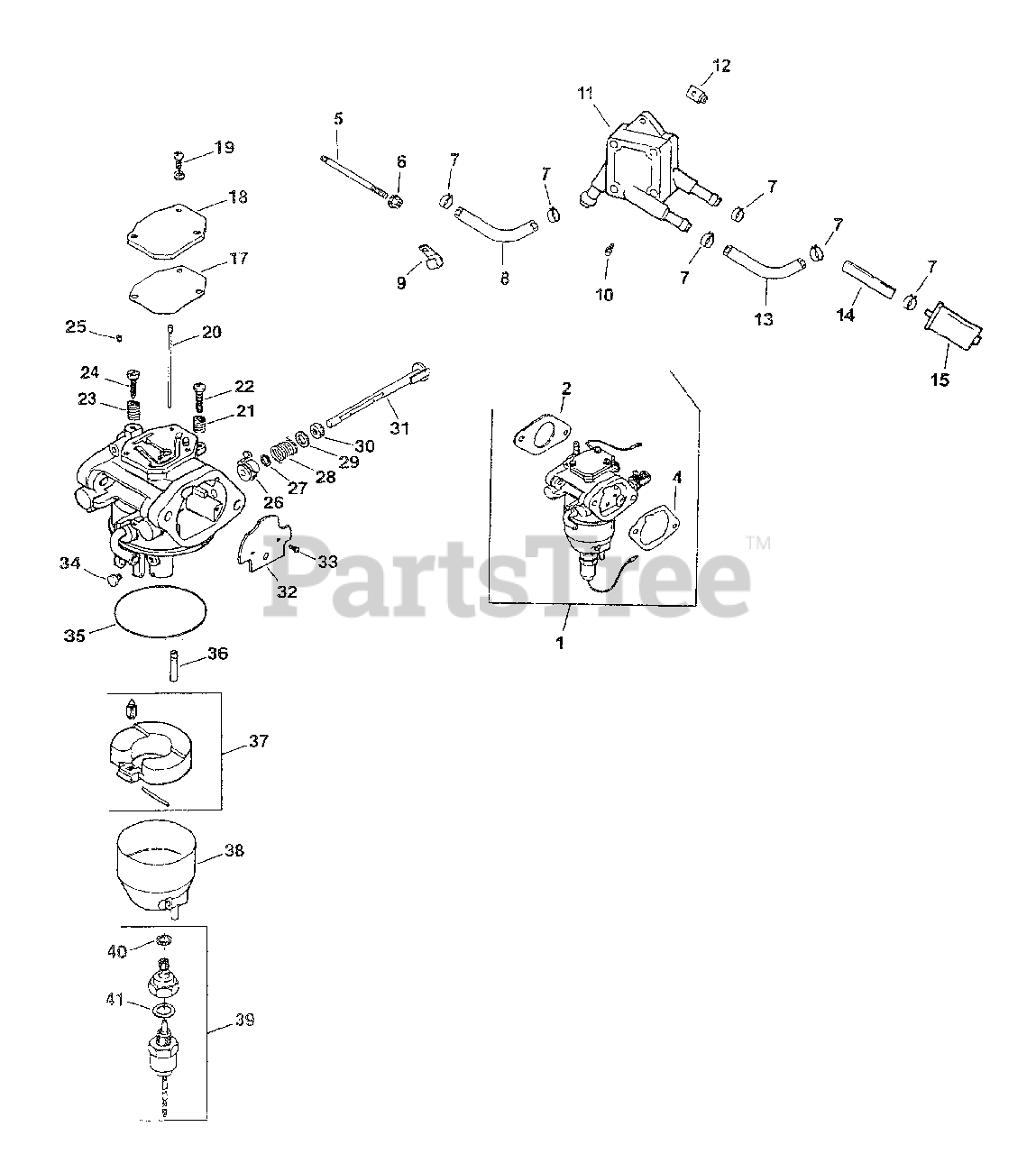

Kohler Fuel System Parts Diagram

  • Title

1

Cub Cadet KH-24-853-26-S

Kit, Carburetor w/Gaskets

$827.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KH-24-041-15

Gasket, Carburetor

$

$

Not available

4

Cub Cadet KH-24-041-14

Gasket, Air Cleaner Base

$

$

Not available

5

Cub Cadet KH-M-629128-S

Stud

$13.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KH-M-641060-S

Nut, Hex Flange

$4.49

$

In Stock, Qty 8

0

7

Cub Cadet KH-X-426-9

Clamp, Hose
(Superseded to KH-25-237-31-S)

$4.99

$

In Stock, only 3 left!

0

8

Cub Cadet KH-24-353-03

Line, Fuel 10-1/2"
(Superseded to KH-24-353-12)

$

$

Not available

9

Cub Cadet KH-47-154-01

Clip, Cable
(Superseded to KH-47-154-01-S)

$5.49

$

In Stock, only 4 left!

0

10

Cub Cadet KH-24-086-12

Screw, Hex Cap

$

$

Not available

11

Cub Cadet KH-24-393-16

Pump, Fuel-Pulse

$

$

Not available

12

Cub Cadet KH-24-100-01

Nut, Plastic
(Superseded to KH-25-100-37-S)

$2.49

$

In Stock, Qty 7

0

13

Cub Cadet KH-24-353-11

Line, Fuel 11-1/2"

$

$

Not available

14

Cub Cadet KH-25-353-15

Line, Fuel 3-1/2"
(Superseded to KH-25-111-81-S)

$17.99

$

In Stock, only 4 left!

0

15

Cub Cadet KH-24-050-02-S

Filter, Fuel
(Superseded to 2405013S1C)

$12.99

$

In Stock, Qty 20+

0

17

Gasket, Passage Cover

Note: Available In Carburetor Repair Kit Only.

$

$

Not available

18

Cub Cadet KH-24-096-13

Cover, Passage

$

$

Not available

19

Cub Cadet KH-24-086-21

Screw, Sems Pan Head

$

$

Not available

20

Jet, Slow

Note: Not Available Separatley, Purchase Carburetor.

$

$

Not available

21

Spring, Idle Adjusting Screw

Note: Available In Carburetor Repair Kit Only.

$

$

Not available

22

Screw, Idle Adjusting

Note: Available In Carburetor Repair Kit Only.

$

$

Not available

23

Cub Cadet KH-24-089-24-S

Spring, Throttle Adjusting Screw

$

$

Not available

24

Screw, Throttle Adjusting

Note: Available In Carburetor Repair Kit Only.

$

$

Not available

25

Cub Cadet KH-24-337-27

Jet, Air Bleed

$

$

Not available

26

Cub Cadet KH-24-090-10-S

Lever, Choke
(Superseded to KH-24-757-19)

$

$

Not available

27

Cub Cadet KH-24-141-04-S

Ring, Choke Lever

$

$

Not available

28

Cub Cadet KH-24-089-22-S

Spring, Choke Return

$

$

Not available

29

Cub Cadet KH-24-241-01

Collar, Choke

$

$

Not available

30

Cub Cadet KH-24-468-05-S

Washer, Felt

$

$

Not available

31

Cub Cadet KH-24-144-15

Shaft, Choke

$

$

Not available

32

Cub Cadet KH-24-146-13

Plate, Choke

$

$

Not available

33

Screw, Sems Pan Head

Note: Available In Carburetor Repair Kit Only.

$

$

Not available

34

Jet, Main

Note: Not Available Separatley, Purchase Carburetor.

$

$

Not available

35

Gasket, Float Chamber

Note: Available In Carburetor Repair Kit Only.

$

$

Not available

36

Nozzle, Main

Note: Not Available Separatley, Purchase Carburetor.

$

$

Not available

37

Kit, Float

Note: Available In Carburetor Repair Kit Only.

$

$

Not available

38

Cub Cadet KH-24-234-01-S

Chamber, Float

$42.99

$

Usually ships in 2-5 days

0

39

Cub Cadet KH-24-757-22

Kit, Solenoid Valve

$

$

Not available

40

Cub Cadet KH-24-041-21-S

Gasket, Chamber Screw

$

$

Not available

41

Cub Cadet KH-24-041-22

Gasket, Solenoid

$

$

Currently unavailable

Cub Cadet KH-24-757-20

Kit, Carburetor Gaskets

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-757-18-S

Kit, Carburetor Overhaul

Note: Not Shown

$79.99

$

In Stock, only 2 left!

0

Cub Cadet KH-24-757-19

Kit, Choke Repair

Note: Not Shown

$

$

Not available

Cub Cadet KH-24-757-21-S

Kit, Accelerator Pump

Note: Not Shown

$120.99

$

In Stock, only 1 left!

0
