365Z (B 2652 CE) (5900946) - Snapper 52" Zero-Turn Mower, 26hp Evap Canister Group Parts Diagram

52" Zero-Turn Mower, 26hp

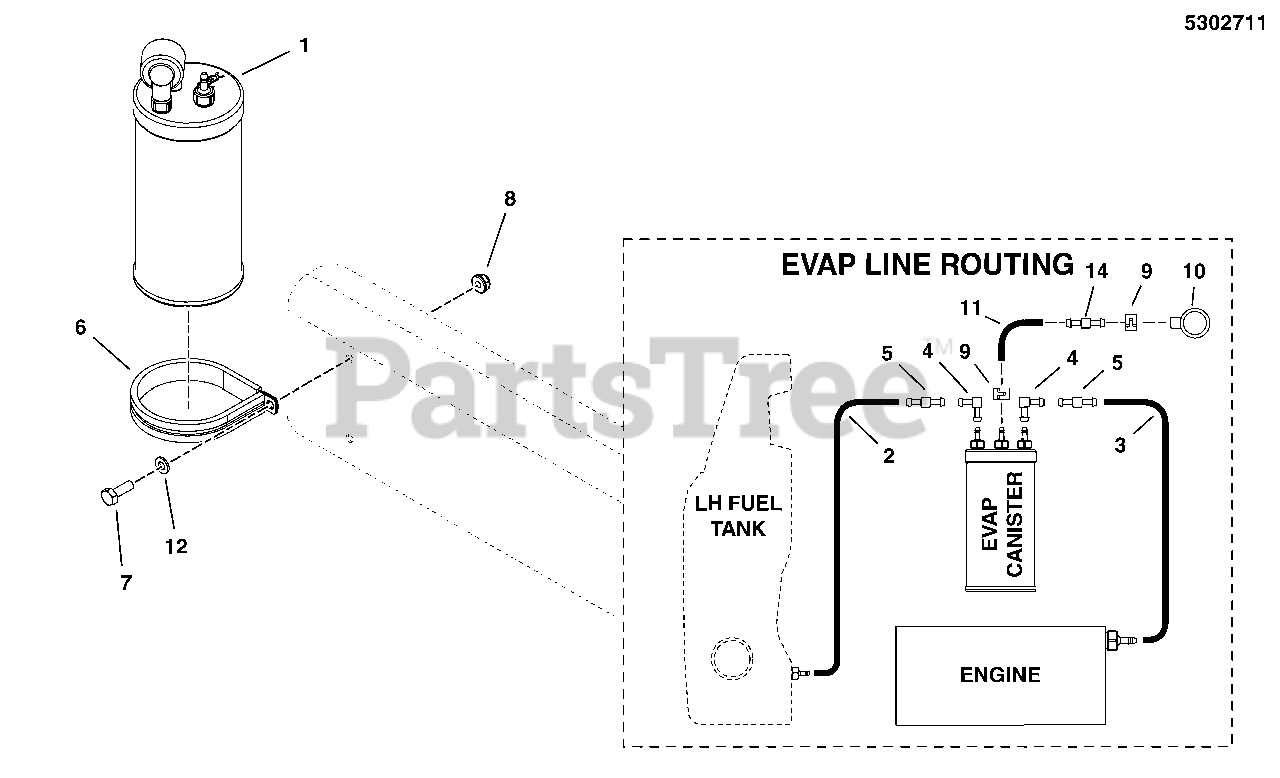

Evap Canister Group Parts Diagram

  • Title

1

Snapper 313036

CNSTR, CARB, 6 GAL
(Superseded to 313036GS)

$217.99

$

Usually ships in 2-12 days

0

2

Snapper 7700552X27

HOSE, VAPOR, 5MM ID, 27.00 LG
(Superseded to 7700552X32YP)

$9.99

$

In Stock, only 1 left!

0

3

Snapper 7700552X11P5

HOSE, VAPOR, 5MM ID, 11.50 LG
(Superseded to 7700552X11P5YP)

$7.49

$

Usually ships in 2-12 days

0

4

Snapper 5103082

FITTING, 90 DEG, 3/16X3/16, SANTOPRENE
(Superseded to 5103082YP)

$10.99

$

Usually ships in 2-12 days

0

5

Snapper 5103084

FITTING, STRAIGHT, 3/16X3/16, PLASTIC
(Superseded to 5103084YP)

$10.99

$

In Stock, only 2 left!

0

6

Snapper 5103055

CLAMP, 3" ID, CUSHIONED, STAINLESS
(Superseded to 5103055YP)

$7.99

$

Usually ships in 2-12 days

0

7

Snapper 5025010X6

BOLT, 1/4-20 X 3/4 GD5 YZ
(Superseded to 5025010X6SM)

$3.99

$

In Stock, Qty 20+

0

8

Snapper 5025391

NUT, 1/4-20 HEX NYLOCK FLANGE
(Superseded to 5025391FS)

$3.99

$

In Stock, Qty 20+

0

9

Snapper 5023268

CLAMP, HOSE
(Superseded to 5023268SM)

$3.49

$

Usually ships in 2-12 days

0

10

Snapper 1752800

DUST FILTER, Cannister
(Superseded to 1752800YP)

$15.99

$

In Stock, only 1 left!

0

11

Snapper 5103092

HOSE, FORMED, EVAP CANISTER
(Superseded to 5103092YP)

$33.99

$

In Stock, only 3 left!

0

12

Snapper 5025154

WASHER, 1/4 SAE
(Superseded to 84007033)

$4.49

$

Usually ships in 2-12 days

0

13

DECAL, EPA CERT, ZTRS (Not Shown)

Note: (Located on frame near Serial Tag)

$

$

Not available

14

Snapper 5103080

FITTING, STRAIGHT, 10MMX10MM, PLASTIC
(Superseded to 5103080YP)

$3.49

$

Usually ships in 2-12 days

0
