365Z (B 2652 CE) (5900946) - Snapper 52" Zero-Turn Mower, 26hp 52" Mower Deck - Rollers & Casters Group Parts Diagram

52" Zero-Turn Mower, 26hp

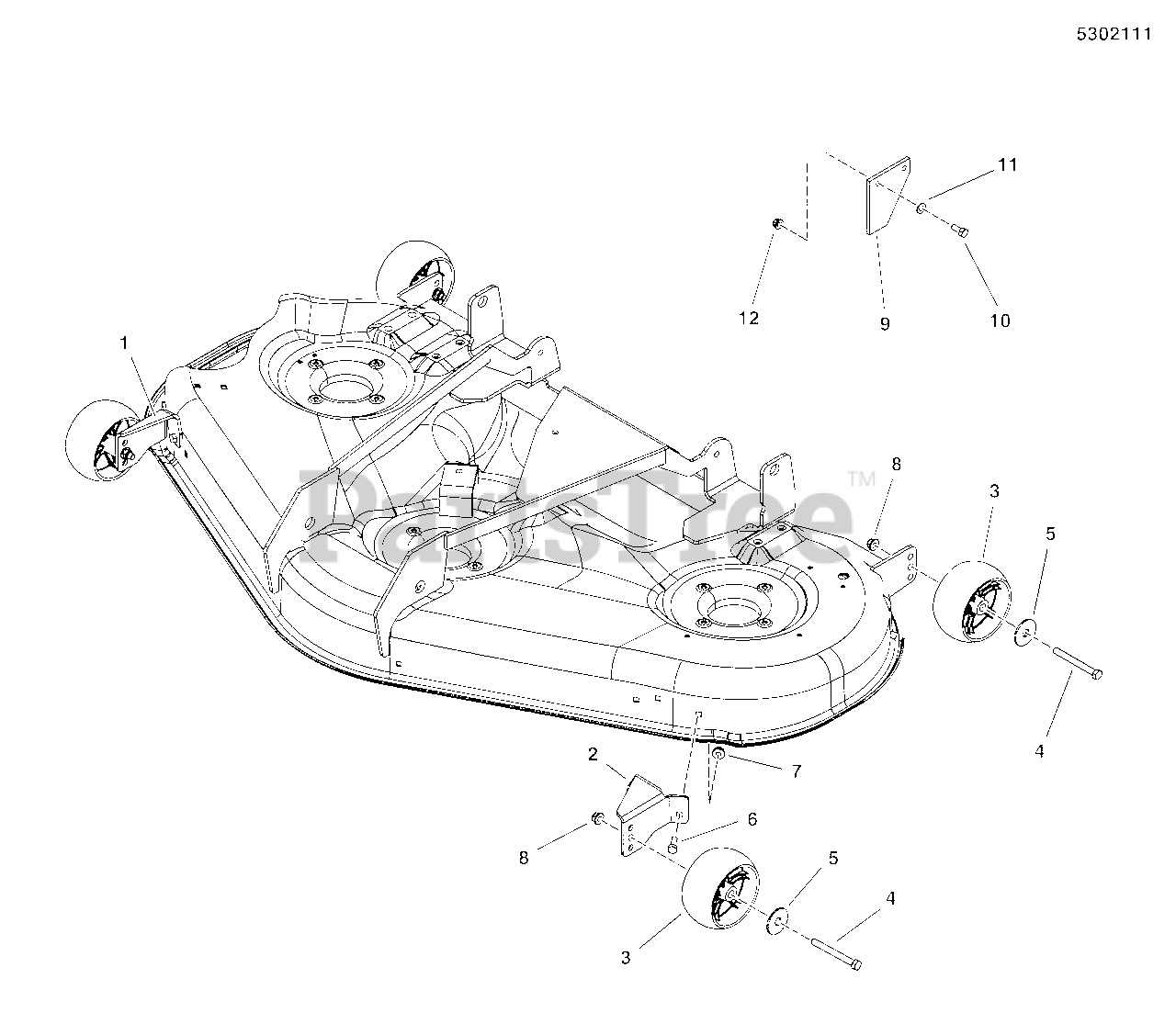

52" Mower Deck - Rollers & Casters Group Parts Diagram

  • Title
1

Snapper 1736074BZ

BRKT, GAUGE WHEEL, RH
(Superseded to 1736074BMYP)

$15.99

$

In Stock, only 1 left!

0

2

Snapper 1736075BZ

BRKT, GAUGE WHEEL, LH
(Superseded to 1736075BMYP)

$14.99

$

In Stock, Qty 14

0

3

Snapper 1736896

WHEEL, GAUGE BLACK POLY 5" DIA
(Superseded to 1736896YP)

$16.99

$

In Stock, only 4 left!

0

4

Snapper 1736539

BOLT, SHLDR 3/8-16X3.41 .750 THRD YELLOW
(Superseded to 1736539YP)

$8.99

$

Usually ships in 2-12 days

0

5

Snapper 1960170

WASHER, 0.500(0.51IDX1.00ODX.10THK) BLK
(Superseded to 703853)

$4.99

$

In Stock, Qty 20+

0

6

Snapper 1931334

BOLT, RD HD SH SQ NK 5/16-18X0.875 G5 BLK
(Superseded to 704065)

$4.49

$

In Stock, Qty 6

0

7

Snapper 1960687

NUT, HEX FLANGE 3/8-16 ESNA BLK
(Superseded to 703158)

$3.49

$

Usually ships in 2-12 days

0

8

Snapper 5025394

NUT, 3/8-16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

9

Snapper 5408316D

PLATE, DECK STOP

Note: (Was 5405683D)

$

$

Not available

10

Snapper 5025011X6

BOLT, 5/16-18 X 3/4 GD5
(Superseded to 5025011X6SM)

$3.99

$

In Stock, Qty 20+

0

11

Snapper 5025155

WASHER, 5/16" SAE

$

$

Currently unavailable

12

Snapper 5025392

NUT, 5/16-18 HEX NYLOCK FLANGE
(Superseded to 5025392FS)

$3.49

$

Usually ships in 2-12 days

0
