365Z (B 2552 CE) (5901278) - Snapper 52" Zero-Turn Mower, 25hp 52" Mower Deck - Pulleys, Belt & Idler Arm Group Parts Diagram

52" Zero-Turn Mower, 25hp

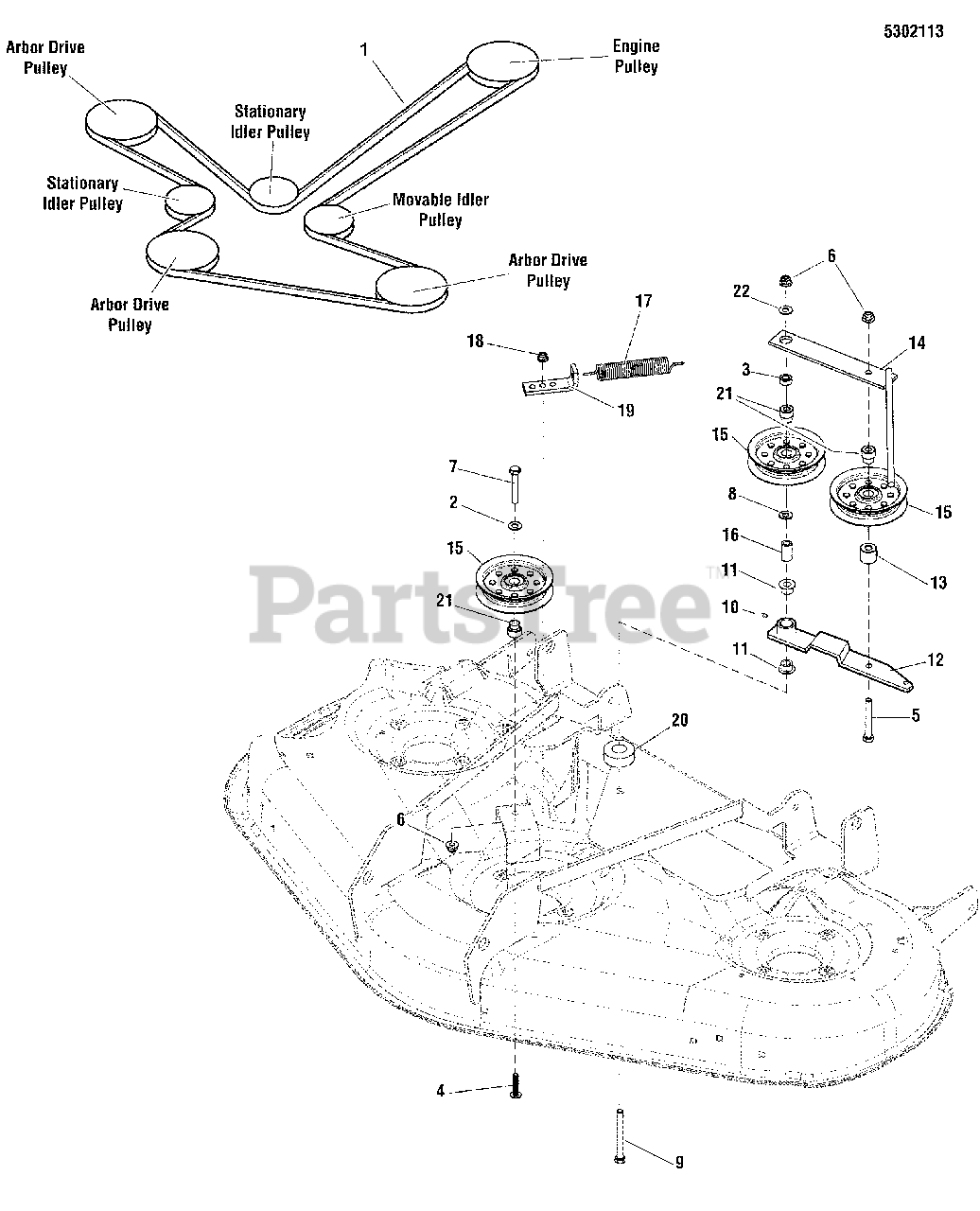

52" Mower Deck - Pulleys, Belt & Idler Arm Group Parts Diagram

  • Title

1

Snapper 5102460YP

BELT HA-SEC 158.00

$146.99

$

Usually ships in 2-12 days

0

2

Snapper 5025401

WASHER, 3/8" USS
(Superseded to 5025401YP)

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 5044933

SPACER, .39 X .75 X .38, PM, CZ
(Superseded to 5044933SM)

$4.99

$

In Stock, only 2 left!

0

4

Snapper 1960373

SCREW-HEX WSHR HD TAPTT5/16-18X1.000BLK
(Superseded to 704146)

$3.99

$

In Stock, Qty 20+

0

5

Snapper 5025013X22

BOLT, 3/8-16 X 2-3/4" GD5 CZ
(Superseded to 5025013X22SM)

$4.49

$

In Stock, only 3 left!

0

6

Snapper 5025394

NUT, 3/8 - 16 HEX NYLOCK FLANGE
(Superseded to 5025394SM)

$4.49

$

In Stock, Qty 20+

0

7

Snapper 5025013X16

BOLT, 3/8-16 X 2, GD5, CZ
(Superseded to 80003522)

$4.49

$

In Stock, only 1 left!

0

8

Snapper 5025156

WASHER, 3/8 SAE
(Superseded to 5025156FS)

$3.49

$

Usually ships in 2-12 days

0

9

Snapper 5025013X32

BOLT, 3/8-16 X 4" GD5 CZ
(Superseded to 5025013X32SM)

$3.99

$

In Stock, Qty 11

0

10

Snapper 5020095

GREASE FITTING, 1/4-28 Straight
(Superseded to 5020095SM)

$3.99

$

In Stock, only 2 left!

0

11

Snapper 1676148

BUSHING-0.628IDX0.751ODX0.400LG PWDR MTL
(Superseded to 1676148SM)

$5.99

$

In Stock, Qty 20+

0

12

Snapper 5402228D

WELD, DECK IDLER ARM, CONSZ - RED
(Superseded to 5400398DYP)

$88.99

$

Usually ships in 2-12 days

0

13

Snapper 5047125

SPACER, .39 X 1.00 X .88, CZ
(Superseded to 5047125SM)

$7.99

$

In Stock, only 2 left!

0

14

Snapper 5403492D

WELD, MOUNT, IDLER TENSION - RED
(Superseded to 5403492DYP)

$36.99

$

In Stock, only 1 left!

0

15

Snapper 5021002

PULLEY, Backside Idler
(Superseded to 5021002SM)

$40.99

$

In Stock, only 3 left!

0

16

Snapper 1674669

SPACER-0.39 IDX0.625ODX1.15 LG CASE HARD
(Superseded to 1674669SM)

$11.99

$

In Stock, Qty 20+

0

17

Snapper 1715435

SPRING, EXTENSION, 1.00
(Superseded to 1715435SM)

$9.49

$

In Stock, Qty 20+

0

18

Snapper 1931277

NUT, Hex Flange Whiz Lock, 5/16-18 all Black
(Superseded to 703409)

$5.49

$

In Stock, Qty 20+

0

19

Snapper 5405675D

BRACKET, SPRING ANCHOR - RED
(Superseded to 5405675DYP)

$13.99

$

Usually ships in 2-12 days

0

20

Snapper 5101465

SPACER, .39 X 1.75 X .63, YZ
(Superseded to 5101465YP)

$19.99

$

Usually ships in 2-12 days

0

21

Snapper 5049184

SPACER, HYDRO PULLEY
(Superseded to 5049184SM)

$5.49

$

In Stock, Qty 6

0

22

Snapper 5025337

WASHER, 5/16" USS
(Superseded to 5025337FS)

$3.99

$

Usually ships in 2-12 days

0
