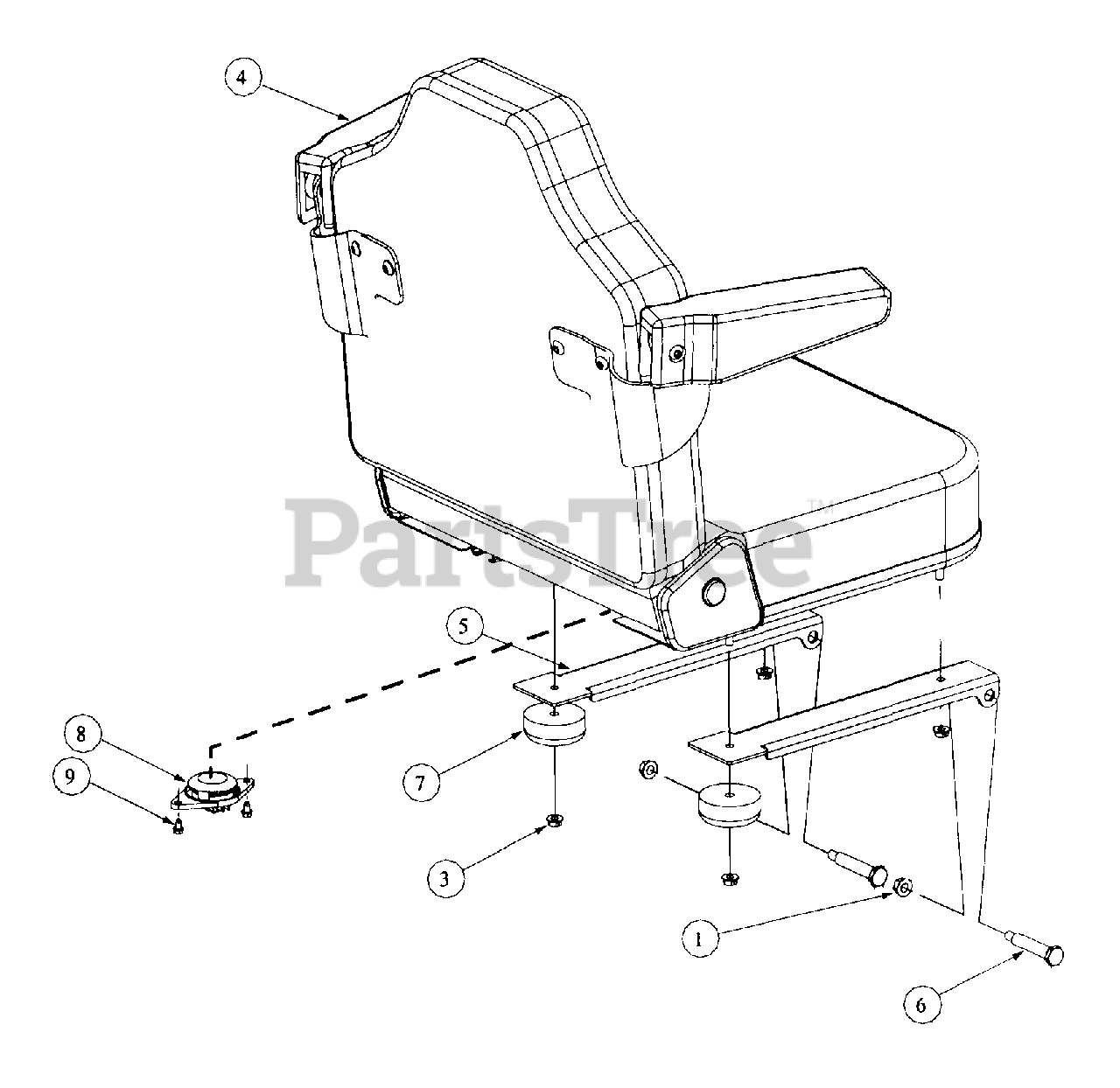

3654 (53AB5B8K100) - Cub Cadet 54" Zero-Turn Mower Seat Assembly Parts Diagram

54" Zero-Turn Mower

Seat Assembly Parts Diagram

  • Title

1

Cub Cadet 00022560

Nut, Hex 3/8-16 Flange Lock
(Superseded to 712-05007)

$4.49

$

In Stock, Qty 20+

0

3

Cub Cadet 01000635

Lock Nut, Hex Flange, 5/16-18
(Superseded to 712-3004A)

$3.99

$

In Stock, Qty 20+

0

4

Cub Cadet 01004834

Adjustable Seat
(Superseded to 02001962)

$723.99

$

Usually ships in 3-6 days

0

5

Cub Cadet 01004929

Mounting Bracket, Seat

$

$

Not available

6

Cub Cadet 01002634

Shoulder Screw, .50x2.345, 3/8-16

$25.99

$

Usually ships in 3-6 days

0

7

Cub Cadet 01002753

Grommet, 2.5 OD x 1.0 Long
(Superseded to 735-04286)

$8.99

$

In Stock, Qty 12

0

8

Cub Cadet 01003277

Seat Switch

$39.99

$

In Stock, only 1 left!

0

9

Cub Cadet 01000628

Screw, TT, 1/4-20, .500, Hex
(Superseded to 710-0599)

$4.49

$

In Stock, Qty 20+

0
