3654 (53AB5B8K100) - Cub Cadet 54" Zero-Turn Mower Kawasaki Valve/Camshaft Parts Diagram

54" Zero-Turn Mower

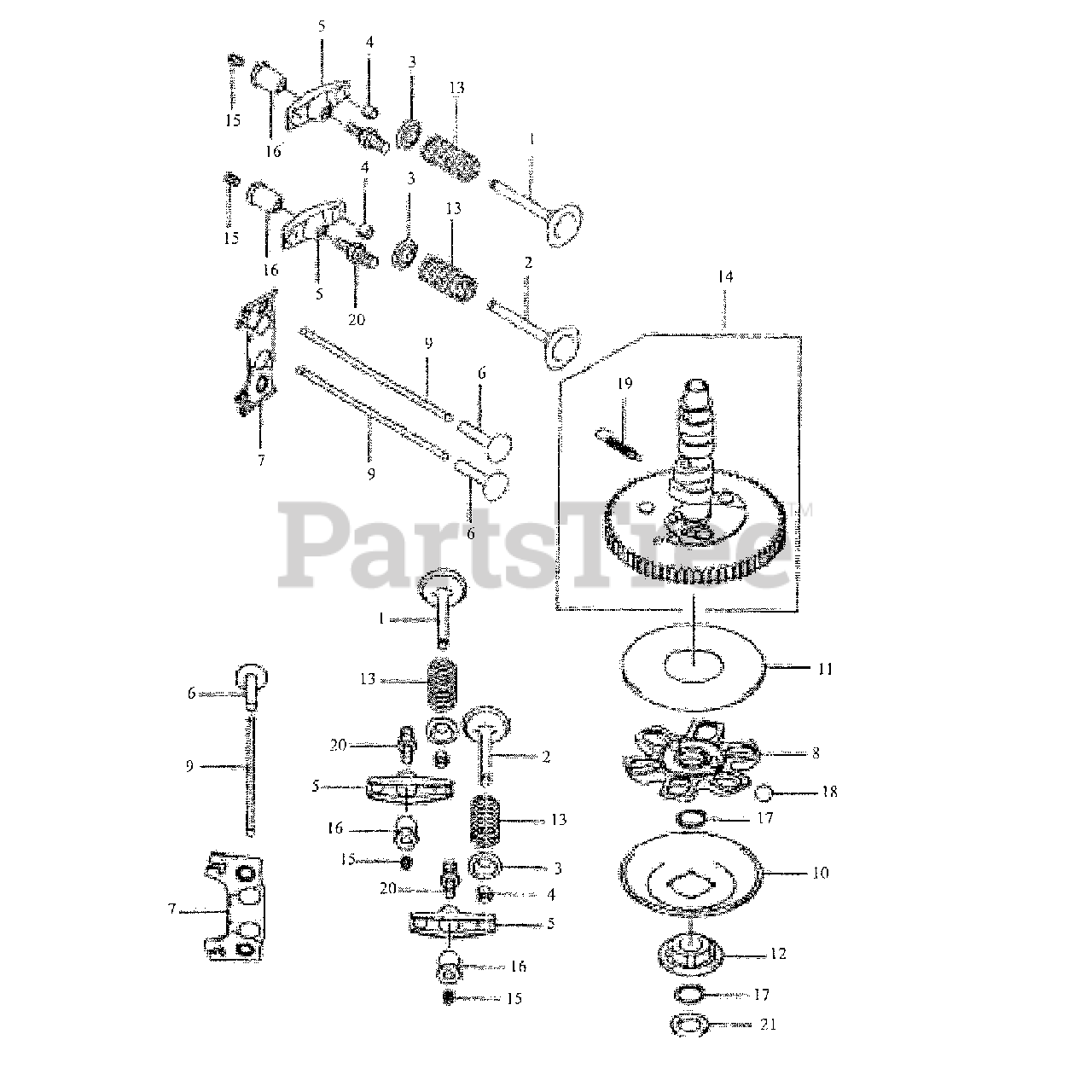

Kawasaki Valve/Camshaft Parts Diagram

  • Title

1

Cub Cadet KM-12004-7002

Valve-Intake

$18.99

$

In Stock, Qty 20+

0

2

Cub Cadet KM-12005-7002

Valve-Exhaust
(Superseded to KM-12005-7004)

$43.99

$

In Stock, Qty 20+

0

3

Cub Cadet KM-12009-7001

Retainer, Valve Spring

$2.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-12011-2056

Collet

$2.99

$

In Stock, Qty 20+

0

5

Cub Cadet KM-12016-7003

Arm-Rocker
(Superseded to KM-12016-7007)

$7.99

$

In Stock, Qty 20+

0

6

Cub Cadet KM-12032-7001

Tappet

$8.99

$

In Stock, Qty 20+

0

7

Cub Cadet KM-13070-7003

Guide, Push Rod
(Superseded to KM-13070-7007)

$4.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-13070-7004

Guide

$5.99

$

In Stock, Qty 20+

0

9

Cub Cadet KM-13116-7002

Rod-Push

$4.99

$

In Stock, Qty 20+

0

10

Cub Cadet KM-13270-7002

Plate
(Superseded to KM-13271-7021)

$5.49

$

In Stock, Qty 18

0

11

Cub Cadet KM-13271-7007

Plate

$5.49

$

In Stock, Qty 10

0

12

Cub Cadet KM-42036-7001

Sleeve
(Superseded to KM-42036-7010)

$5.99

$

In Stock, Qty 18

0

13

Cub Cadet KM-49078-7002

Spring-Engine Valve

$6.99

$

In Stock, Qty 20+

0

14

Cub Cadet KM-49118-7003

Camshaft-Complete

$

$

Not available

15

Cub Cadet KM-92009-2341

Screw

$2.49

$

In Stock, Qty 20+

0

16

Cub Cadet KM-92015-2253

Nut

$4.49

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92033-7001

Ring-Snap
(Superseded to KM-92033-0778)

$0.99

$

In Stock, Qty 5

0

18

Cub Cadet KM-92140-7002

Ball
(Superseded to KM-92140-7005)

$2.49

$

Usually ships in 3-6 days

0

19

Cub Cadet KM-92145-7001

Spring
(Superseded to KM-92145-1653)

$1.49

$

In Stock, Qty 20+

0

20

Cub Cadet KM-92151-7001

Bolt
(Superseded to KM-92153-7019)

$2.49

$

Usually ships in 2-5 days

0

21

Cub Cadet KM-92200-7001

Washer

$1.99

$

In Stock, Qty 11

0
