3654 (53AB5B8K100) - Cub Cadet 54" Zero-Turn Mower Kawasaki Carburetor Parts Diagram

54" Zero-Turn Mower

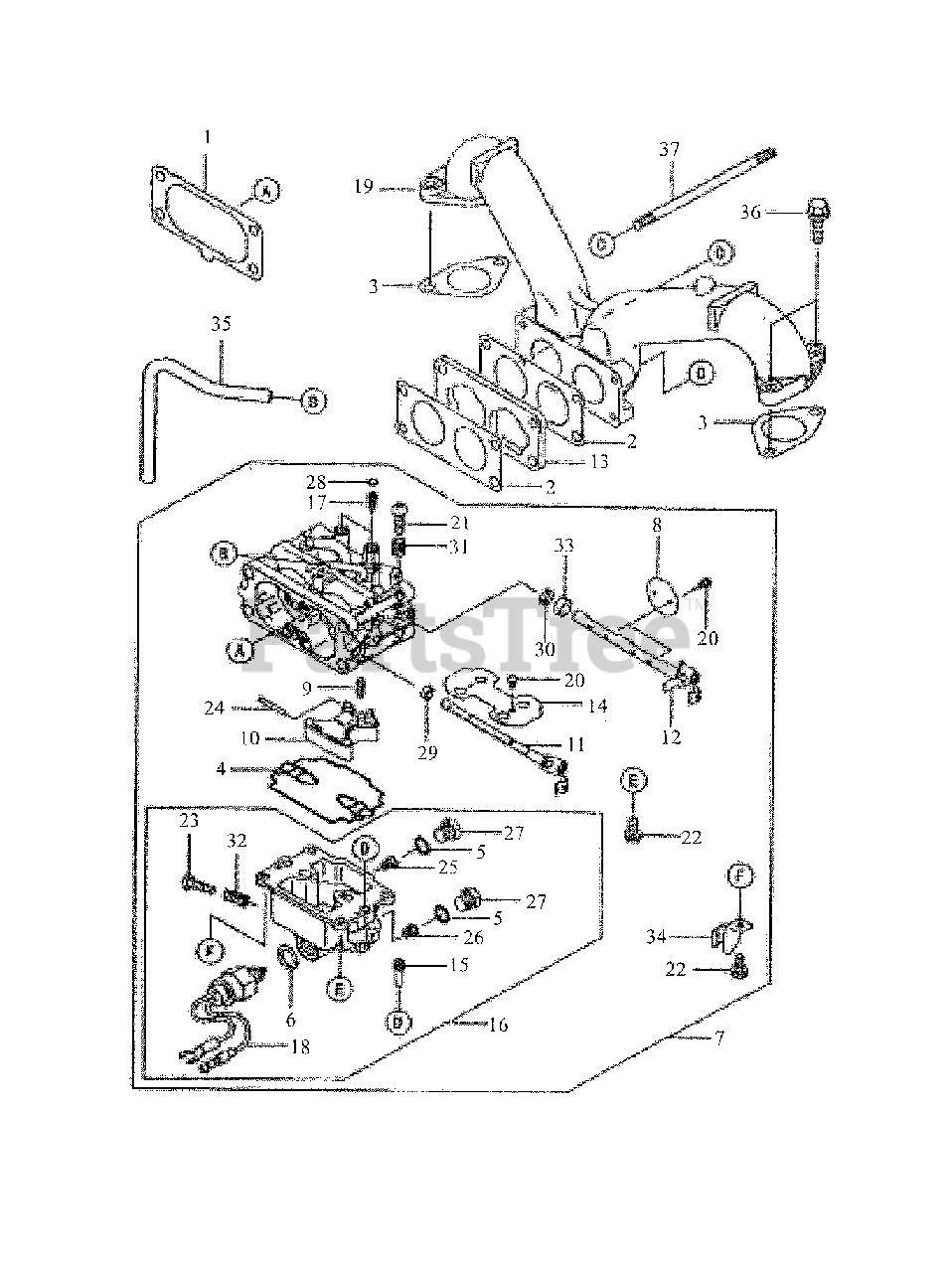

Kawasaki Carburetor Parts Diagram

  • Title

1

Cub Cadet KM-11060-7009

Gasket, Air Filter

$2.49

$

In Stock, only 3 left!

0

2

Cub Cadet KM-11060-7010

Gasket, Carburetor

$2.49

$

In Stock, Qty 18

0

3

Cub Cadet KM-11060-7011

Gasket

$2.49

$

In Stock, Qty 20+

0

4

Cub Cadet KM-11060-7018

Gasket,Float Chamber

$1.49

$

In Stock, Qty 20+

0

5

Cub Cadet KM-11060-7019

Gasket,Main Plug

$1.49

$

In Stock, Qty 16

0

6

Cub Cadet KM-11060-7020

Gasket, Solenoid

$0.99

$

In Stock, Qty 11

0

7

Cub Cadet KM-15003-7022

Carburetor Assembly

$

$

Not available

8

Cub Cadet KM-16025-7001

Valve-Throttle

$22.99

$

In Stock, only 2 left!

0

9

Cub Cadet KM-16030-7002

Valve-Float

$18.99

$

In Stock, only 1 left!

0

10

Cub Cadet KM-16031-7001

Float

$29.99

$

In Stock, only 1 left!

0

11

Cub Cadet KM-16041-7001

Shaft-Choke
(Superseded to KM-16041-7057)

$32.99

$

In Stock, only 3 left!

0

12

Cub Cadet KM-16041-7004

Shaft-Throttle

$

$

Not available

13

Cub Cadet KM-16073-7003

Insulator

$

$

Not available

14

Cub Cadet KM-16126-7004

Valve,Choke

$6.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-16158-7002

Jet-Slow #60

$26.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-16184-7001

Chamber-Float

$269.99

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-16187-7002

Needle-Jet

$13.99

$

In Stock, only 2 left!

0

18

Cub Cadet KM-21188-7001

Solenoid

$172.99

$

In Stock, only 1 left!

0

19

Cub Cadet KM-59076-7002

Manifold, Intake
(Superseded to KM-59076-0026)

$125.99

$

In Stock, only 1 left!

0

20

Cub Cadet KM-92009-7003

Screw

$0.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-92009-7004

Screw

$1.49

$

In Stock, only 4 left!

0

22

Cub Cadet KM-92009-7005

Screw

$1.49

$

In Stock, Qty 7

0

23

Cub Cadet KM-92009-7006

Screw,Drain

$1.49

$

In Stock, only 3 left!

0

24

Cub Cadet KM-92043-7004

Pin, Float

$6.99

$

In Stock, only 3 left!

0

25

Cub Cadet KM-92063-7001

Jet-Main # 104

$21.99

$

In Stock, only 1 left!

0

26

Cub Cadet KM-92063-7002

Jet-Main # 106

$21.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KM-92066-7008

Plug,Main Jet

$4.49

$

In Stock, only 1 left!

0

28

Cub Cadet KM-92066-7009

Plug, Expansion

$7.99

$

In Stock, Qty 12

0

29

Cub Cadet KM-92093-7001

Seal 5.9

$2.49

$

In Stock, Qty 12

0

30

Cub Cadet KM-92093-7002

Seal 6.9

$2.49

$

In Stock, Qty 7

0

31

Cub Cadet KM-92145-7010

Spring

$2.49

$

Usually ships in 2-5 days

0

32

Cub Cadet KM-92145-7011

Spring

$2.49

$

Usually ships in 2-5 days

0

33

Cub Cadet KM-92152-7001

Collar

$11.99

$

Usually ships in 2-5 days

0

34

Cub Cadet KM-92171-7001

Clamp

$

$

Not available

35

Cub Cadet KM-92191-7010

Tube 4.76x7.94x160

$1.49

$

In Stock, Qty 10

0

36

Cub Cadet KM-130B0620

Bolt-Flange

$

$

Not available

37

Cub Cadet KM-172G06105

Bolt-Stud
(Superseded to KM-172BA06105)

$4.49

$

In Stock, only 1 left!

0
