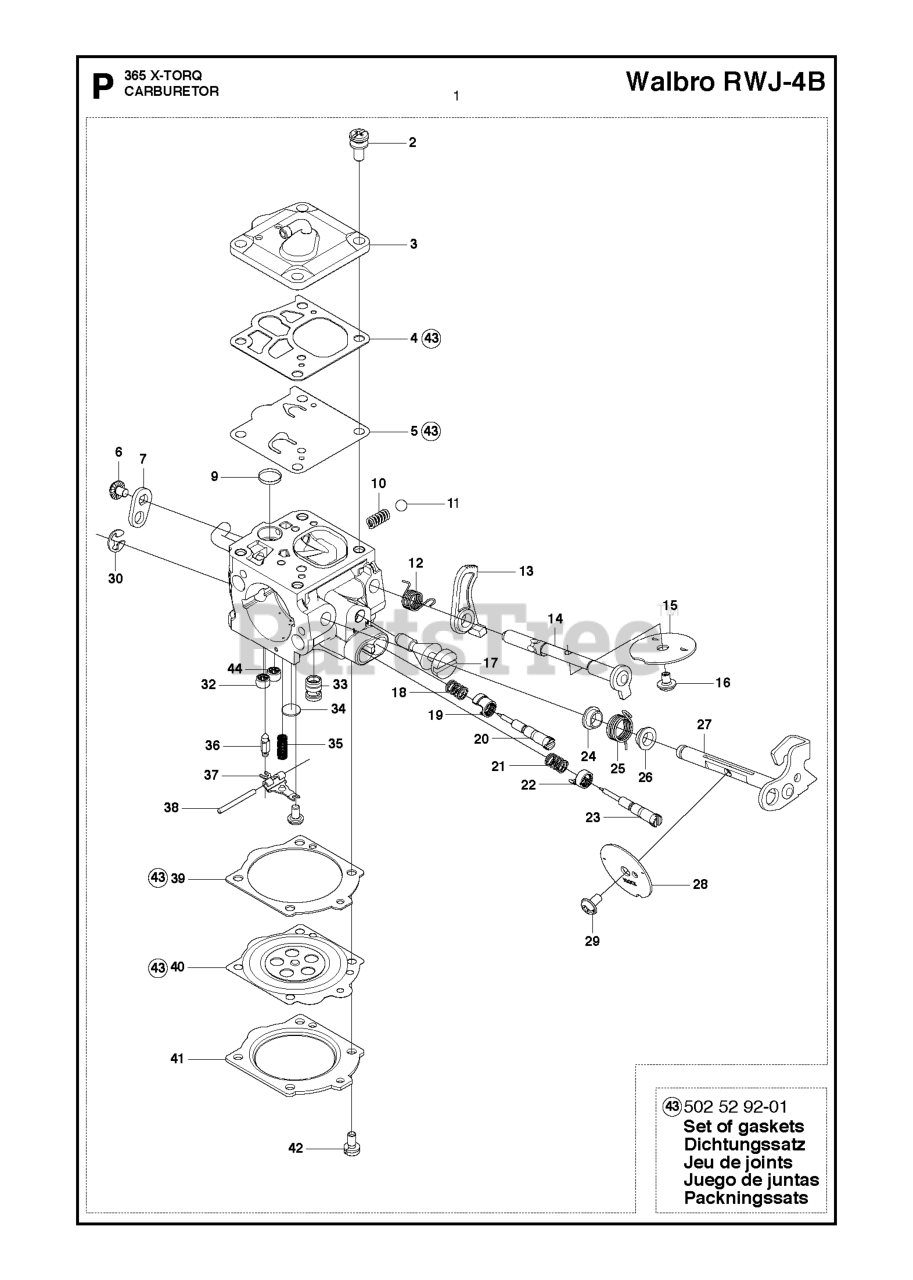

  • Title

1

Husqvarna 581100701

CARBURETTOR RWJ-4B

Note: Walbro RWJ-4B

$125.99

$

Usually ships in 3-10 days

0

2

Husqvarna 503117501

SCREW W/ WASHER

$9.49

$

Usually ships in 3-10 days

0

3

Husqvarna 522923501

PUMP COVER

$

$

Not available

4

Husqvarna 503117201

GASKET

$11.99

$

In Stock, only 1 left!

0

5

Husqvarna 544897201

DIAPHRAM PUMP

$26.99

$

In Stock, only 2 left!

0

6

Husqvarna 501468701

SCREW

$7.99

$

Usually ships in 3-10 days

0

7

Husqvarna 504790701

LEVER CHOKE

$4.99

$

Usually ships in 3-10 days

0

9

Husqvarna 501666101

FUEL INLET SCREEN

$14.99

$

Usually ships in 3-10 days

0

10

Husqvarna 503117701

SPRING

$9.49

$

Usually ships in 3-10 days

0

11

Husqvarna 503117101

BALL

$11.99

$

Usually ships in 3-10 days

0

12

Husqvarna 504791501

SPRING CHOKE

$20.99

$

In Stock, only 2 left!

0

13

Husqvarna 537409201

LEVER

$7.49

$

In Stock, only 3 left!

0

14

Husqvarna 504790501

SHAFT ASSY

$49.99

$

Usually ships in 3-10 days

0

15

Husqvarna 544896801

VALVE

$

$

Not available

16

Husqvarna 537003401

SCREW
(Superseded to 501468701)

$7.99

$

Usually ships in 3-10 days

0

17

Husqvarna 504791101

SCREW

Note: s/n up to - 20131800192

$43.99

$

Usually ships in 3-10 days

0

17

Husqvarna 585186701

IDLE SPEED SCREW

Note: s/n from 20131800193 -

$18.99

$

Usually ships in 3-10 days

0

18

Husqvarna 544971001

SPRING

$10.99

$

Usually ships in 3-10 days

0

19

Husqvarna 544970801

LIMITER CAP

$8.99

$

In Stock, only 2 left!

0

20

Husqvarna 522923901

NEEDLE

$11.53

$

Usually ships in 3-10 days

0

21

Husqvarna 544971001

SPRING

$10.99

$

Usually ships in 3-10 days

0

22

Husqvarna 544970801

LIMITER CAP

$8.99

$

In Stock, only 2 left!

0

23

Husqvarna 544971301

NEEDLE

$14.99

$

Usually ships in 3-10 days

0

24

Husqvarna 502103101

BUSHING

$11.99

$

Usually ships in 3-10 days

0

25

Husqvarna 504791401

%SPRING
(Superseded to 576138201)

Note: s/n up to - 20131800192

$17.99

$

Usually ships in 3-10 days

0

25

Husqvarna 576138201

SPRING

Note: s/n from 20131800193 -

$17.99

$

Usually ships in 3-10 days

0

26

Husqvarna 502103101

BUSHING

$11.99

$

Usually ships in 3-10 days

0

27

Husqvarna 522923701

SHAFT ASSY

$35.76

$

Usually ships in 3-10 days

0

28

Husqvarna 522923801

VALVE

Note: s/n up to - 20131800192

$10.37

$

Usually ships in 3-10 days

0

28

Husqvarna 577657901

VALVE THROTTLE

Note: s/n from 20131800193 -

$

$

Not available

29

Husqvarna 537003401

SCREW
(Superseded to 501468701)

$7.99

$

Usually ships in 3-10 days

0

30

Husqvarna 505316736

E CLIP
(Superseded to 502119801)

$9.49

$

Usually ships in 3-10 days

0

32

Husqvarna 522924101

CHECK VALVE

Note: s/n up to - 20131800192

$92.31

$

Usually ships in 3-10 days

0

32

Husqvarna 580642301

CHECK VALVE IDLE JET

Note: s/n from 20131800193 -

$

$

Not available

33

Husqvarna 503786101

NOZZLE ASSY

Note: s/n up to - 20131800192

$9.49

$

Usually ships in 3-10 days

0

33

Husqvarna 577699801

MAIN NOZZLE

Note: s/n from 20131800193 -

$15.99

$

Usually ships in 3-10 days

0

34

Husqvarna 504790801

PLUG WELCH

$7.99

$

In Stock, Qty 8

0

35

Husqvarna 504791201

SPRING

$3.99

$

Usually ships in 3-10 days

0

36

Husqvarna 503563401

INLET NEEDLE

$17.99

$

In Stock, Qty 9

0

37

Husqvarna 505316734

LEVER

$13.99

$

In Stock, Qty 7

0

38

Husqvarna 505316731

PIN

$7.99

$

Usually ships in 3-10 days

0

39

Husqvarna 501467501

GASKET

$10.99

$

In Stock, only 2 left!

0

40

Husqvarna 503634801

SPRING

Note: s/n up to - 20131800192

$5.76

$

Usually ships in 3-10 days

0

40

Husqvarna 503635801

DIAPHRAGM ASSY
(Superseded to 505316715)

Note: s/n from 20131800193 -

$91.99

$

Usually ships in 3-10 days

0

41

Husqvarna 505316702

DIAPHRAM COVER

$7.99

$

Usually ships in 3-10 days

0

42

Husqvarna 503108701

RP SCREW W/ WASHER
(Superseded to 503584601)

$4.99

$

In Stock, only 4 left!

0

43

Husqvarna 502529201

GASKET KIT

Note: Set of gaskets

$31.99

$

Usually ships in 3-10 days

0

44

Husqvarna 577699701

CHECK VALVE ASSY

$

$

Not available
