365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Front Axle & Tire Parts Diagram

36" Zero-Turn Mower

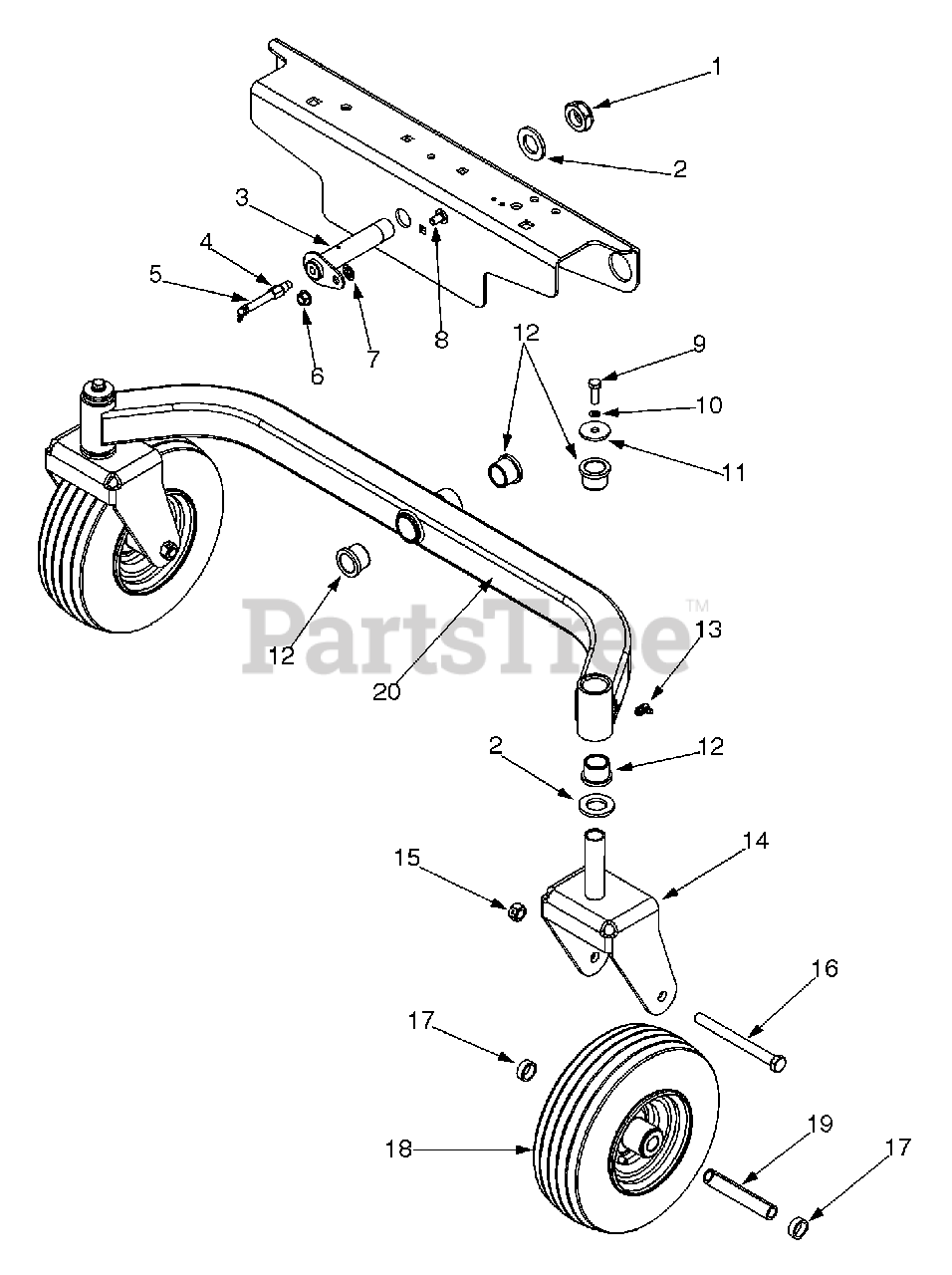

Front Axle & Tire Parts Diagram

  • Title

1

Cub Cadet 712-3075

Hex Lock Nut, 1.0-14
(Superseded to 712-05008)

$14.99

$

In Stock, only 1 left!

0

2

Cub Cadet 736-0274

Flat Washer

$8.99

$

In Stock, Qty 14

0

3

Cub Cadet 603-0389A

Pin Ass'y, Pivot

$

$

Not available

4

Cub Cadet 737-3090

Adapter, 1/8 NPTF x 1/8 NPTF
(Superseded to 937-3090)

$

$

Not available

5

Cub Cadet 737-3072

Grease Fitting, 65° w/Extension

$

$

Not available

6

Cub Cadet 712-0431

Hex Flange Lock Nut, 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

7

Cub Cadet 712-0229

Push Nut, 3/8 ID

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 710-3178

Carriage Bolt, 3/8-16 x .75

$4.49

$

In Stock, Qty 20+

0

9

Cub Cadet 710-0514

Hex Cap Screw, 3/8-16 x 1.0

$4.49

$

In Stock, Qty 20+

0

10

Cub Cadet 736-0169

Lock Washer 3/8

$3.99

$

In Stock, Qty 20+

0

11

Cub Cadet 736-0227

Flat Washer 3/8 x 1.5

$6.49

$

In Stock, Qty 9

0

12

Cub Cadet 731-0374

Flange Bearing 1.0 ID
(Superseded to 931-0374)

$7.49

$

In Stock, only 3 left!

0

13

Cub Cadet 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

14

Cub Cadet 603-0363

Castor Wheel Bracket
(Superseded to 603-0363A)

Variations

Cub Cadet 603-0363-0498

Caster Wheel Yoke Kit - OLD CUB YELLOW (0498)

$114.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0363-0637

Caster Wheel Yoke Kit - POWDER BLACK (0637)

$114.99

$

Usually ships in 3-6 days

0

Cub Cadet 603-0363-0648

Caster Wheel Yoke Kit - TECH GRAY (0648)

$114.99

$

Usually ships in 3-6 days

0

$114.99

$

Usually ships in 3-6 days

0

15

Cub Cadet 712-0239

Hex Center Lock Nut 1/2-20

$5.99

$

In Stock, Qty 20+

0

16

Cub Cadet 710-0506

Hex Cap Screw, 1/2-20 x 5.5

$10.99

$

In Stock, only 2 left!

0

17

Cub Cadet 750-0456

Spacer, .79 ID x .347 Lg

$4.49

$

In Stock, Qty 20+

0

18

Cub Cadet 634-3163

Wheel Comp 11.0 x 4.0 x 5.0

$226.99

$

In Stock, only 1 left!

0

18

Cub Cadet 02002093

Tire, Front

Note: Not Shown

$66.99

$

In Stock, only 2 left!

0

18

Cub Cadet 02002095

Bushing, Front
(Superseded to 741-3069)

Note: Not Shown

$17.99

$

In Stock, only 1 left!

0

18

Cub Cadet 741-3069

Bearing, Flange

Note: Not Shown

$17.99

$

In Stock, only 1 left!

0

18

Cub Cadet 741-3070

Bearing, Roller
(Superseded to 941-3070)

Note: Not Shown

$54.99

$

In Stock, only 3 left!

0

19

Cub Cadet 750-3197A

Wheel Spacer

$21.99

$

In Stock, Qty 13

0

20

Cub Cadet 603-0382

Front Axle Ass'y
(Superseded to 903-0382)

Variations

Cub Cadet 603-0382-0498

AXLE ASSEMBLY, FRONT - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0382-0648

USE 903-0382-0637 AXLE ASM: F - TECH GRAY (0648)

$

$

Not available

$

$
