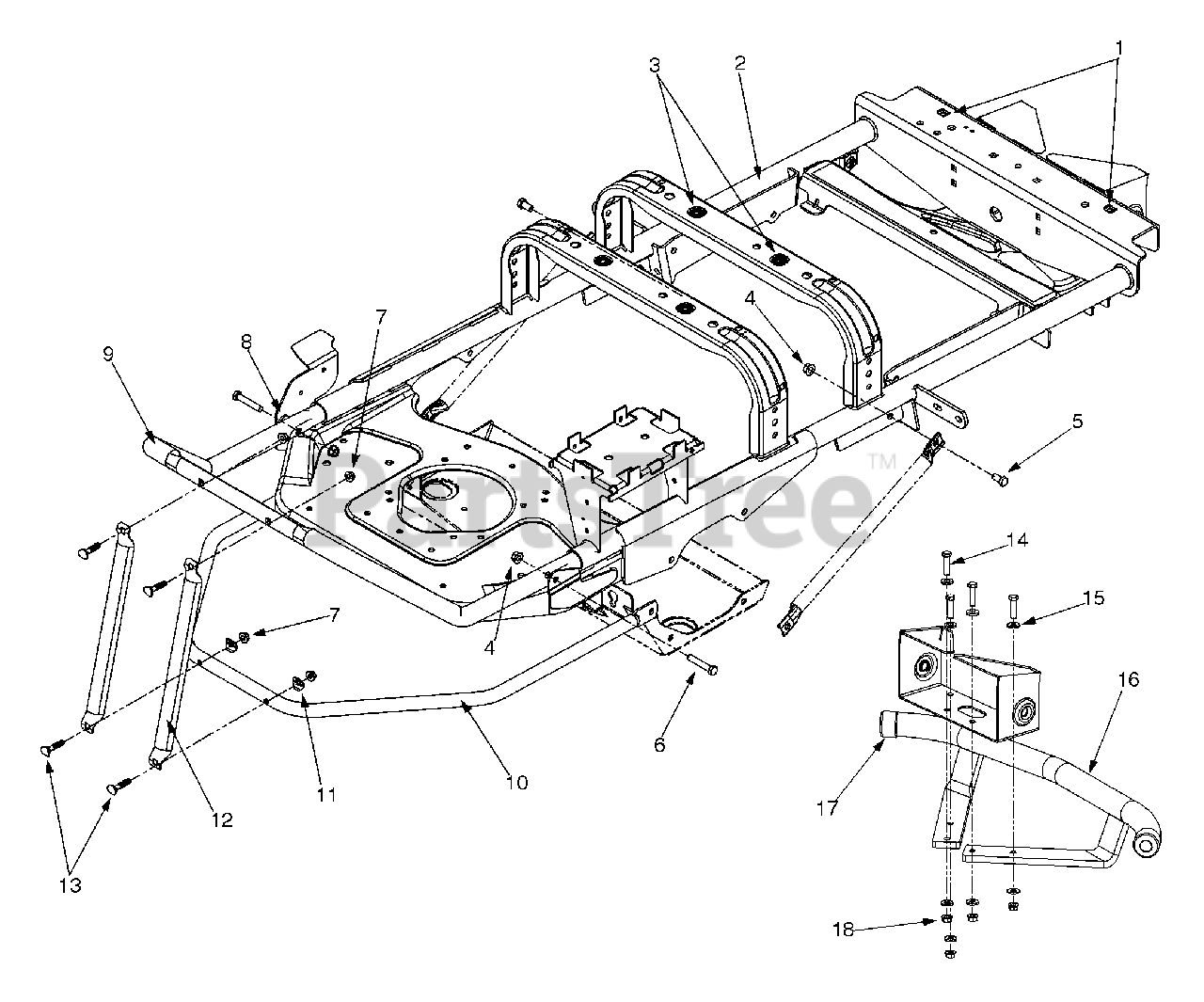

365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Frame Assembly & Attachments Parts Diagram

36" Zero-Turn Mower

Frame Assembly & Attachments Parts Diagram

  • Title
1

Cub Cadet 712-0251

Retainer Nut 3/8-16

$

$

Not available

2

Cub Cadet 603-0720

Frame Assembly
(Superseded to 603-0720B-0637)

Variations

Cub Cadet 603-0720-0637

FRAME ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

3

Cub Cadet 712-0455

Retainer Nut 3/8-16

$

$

Not available

4

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

5

Cub Cadet 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 14

0

6

Cub Cadet 710-3144

Hex Cap Screw 3/8-16 x 2.0

$4.49

$

In Stock, Qty 20+

0

7

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

8

Cub Cadet 736-0258

Flat Washer .385 x 1.0 x .135

$4.49

$

In Stock, only 4 left!

0

9

Cub Cadet 749-3062

Upper Bumper

Variations

Cub Cadet 749-3062-0498

BMPR:TUBE:UPPER - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3062-0637

BMPR:TUBE:UPPER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-3062-0648

BMPR:TUBE:UPPER (TECH GRAY) - TECH GRAY (0648)

$

$

Not available

$

$

10

Cub Cadet 749-3061

Lower Bumper Tube

Variations

Cub Cadet 749-3061-0498

BMPR TUBE - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 749-3061-0637

BMPR TUBE - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 749-3061-0648

BMPR:TUBE:LWR - TECH GRAY (0648)

$

$

Not available

$

$

11

Cub Cadet 736-0451

Washer .320 ID x .93 OD

$4.49

$

In Stock, Qty 11

0

12

Cub Cadet 703-3504

Bumper Bracket

Variations

Cub Cadet 703-3504-0637

BRACKET-BUMPER (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 710-1250

Carriage Bolt 5/16 x 1.5

$4.99

$

In Stock, only 3 left!

0

14

Cub Cadet 710-0520

Hex Cap Screw 3/8-16 x 1.5

$4.49

$

In Stock, Qty 5

0

15

Cub Cadet 736-3004

Flat Washer .406 ID x .875 OD

$4.99

$

In Stock, Qty 6

0

16

Cub Cadet 603-0620A

Front Bumper
(Superseded to 603-0620A-0637)

Variations

Cub Cadet 603-0620A-0498

USE 603-0620A-0637 BUMPER-SOL - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0620A-0637

BUMPER-SOLID FRONT - POWDER BLACK (0637)

$

$

Not available

Cub Cadet 603-0620A-0648

USE 603-0620A-0637 BUMPER-SOL - TECH GRAY (0648)

$

$

Not available

$

$

17

$

$

Not available

18

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0
