365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Engine Flywheel & Starter (Model 365L) Parts Diagram

36" Zero-Turn Mower

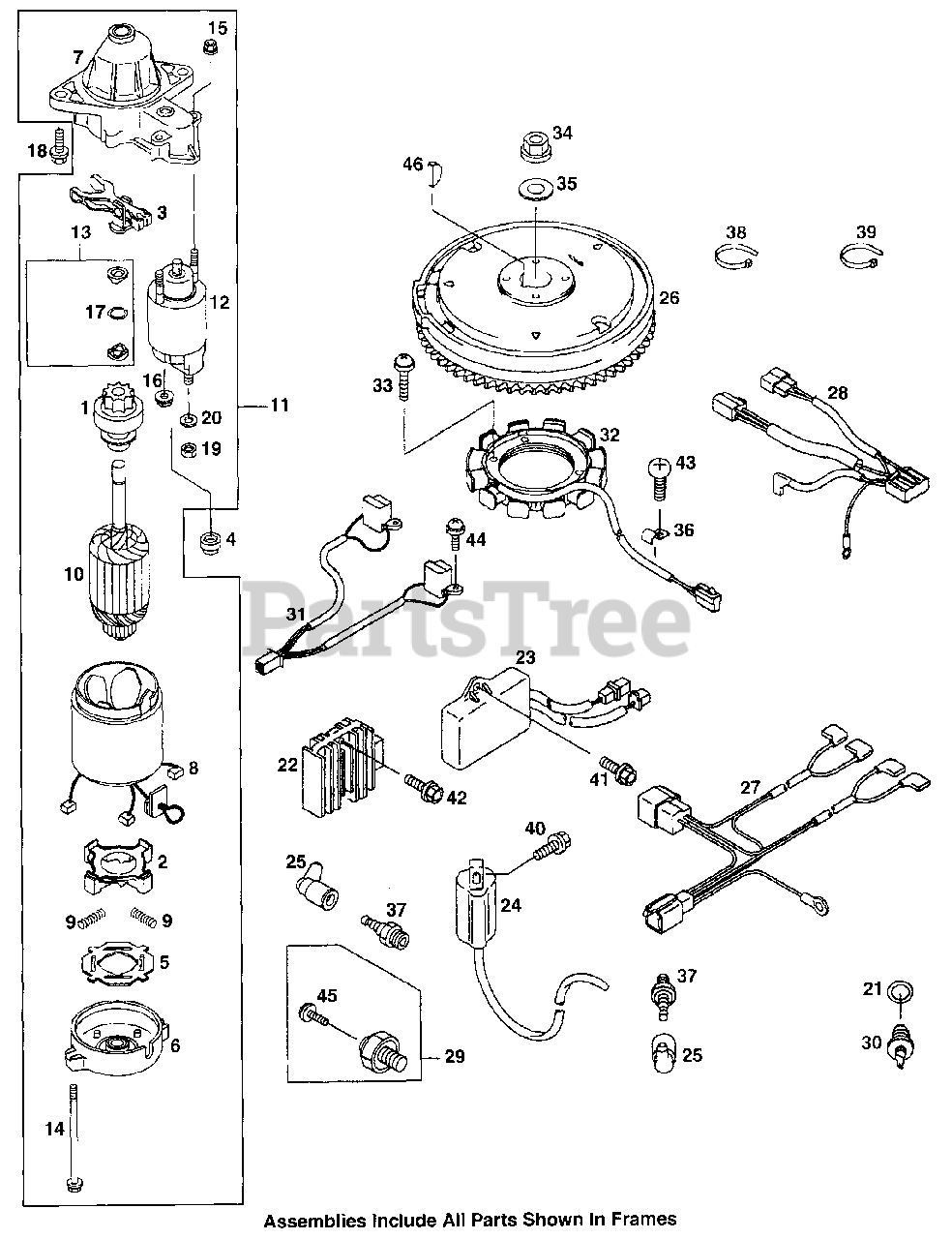

Engine Flywheel & Starter (Model 365L) Parts Diagram

  • Title

1

Cub Cadet KM-13081-2108

Clutch Assembly

$122.99

$

Usually ships in 2-5 days

0

2

Cub Cadet KM-13091-2068

Brush Holder

$29.99

$

Usually ships in 2-5 days

0

3

Cub Cadet KM-13168-2131

Shift Lever

$24.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-14024-2205

Cover

$1.49

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-16073-2098

Insulator

$10.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-16146-2077

Cover Assembly

$83.99

$

In Stock, only 1 left!

0

7

Cub Cadet KM-16146-2128

Cover Assembly

$

$

Not available

8

Cub Cadet KM-21039-2059

Brush

$15.99

$

In Stock, only 1 left!

0

9

Cub Cadet KM-21040-2052

Brush Spring

$3.99

$

Usually ships in 2-5 days

0

10

Cub Cadet KM-21080-2054

Armature

$

$

Not available

11

Cub Cadet KM-21163-2077

Electric Starter
(Superseded to KM-21163-2141)

$602.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-27010-2122

Switch
(Superseded to KM-27010-7005)

$189.99

$

In Stock, only 2 left!

0

13

Cub Cadet KM-32085-2097

Stopper

$15.99

$

Usually ships in 2-5 days

0

14

Cub Cadet KM-92002-2277

Bolt

$13.99

$

In Stock, Qty 5

0

15

Cub Cadet KM-92015-2146

Nut

$1.99

$

Usually ships in 2-5 days

0

16

Cub Cadet KM-92015-2147

Nut

$7.49

$

Usually ships in 2-5 days

0

17

Cub Cadet KM-92033-2081

Snap Ring

$6.99

$

Usually ships in 2-5 days

0

18

Cub Cadet KM-130B0860

Flanged Bolt

$

$

Currently unavailable

19

Cub Cadet KM-317B0800

Hex Nut

$0.99

$

In Stock, Qty 19

0

20

Cub Cadet KM-461F0800

Spring Washer
(Superseded to KM-461DA0800)

$0.99

$

In Stock, Qty 20+

0

21

Cub Cadet KM-11009-2766

Gasket

$1.49

$

In Stock, Qty 8

0

22

Cub Cadet KM-21066-2070

Voltage Regulator

$131.99

$

In Stock, only 3 left!

0

23

Cub Cadet KM-21119-2120

Igniter
(Superseded to KM-21119-2157)

$317.99

$

In Stock, only 1 left!

0

24

Cub Cadet KM-21121-2083

Ignition Coil

$73.99

$

In Stock, Qty 8

0

25

Cub Cadet KM-21130-2060

Spark Plug Cap

$14.99

$

In Stock, only 2 left!

0

26

Cub Cadet KM-21193-2148

Flywheel Assembly

$398.99

$

Usually ships in 2-5 days

0

27

Cub Cadet KM-26030-2242

Harness

$31.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KM-26030-2243

Harness
(Superseded to KM-26030-2255)

$25.99

$

Usually ships in 2-5 days

0

29

Cub Cadet KM-27010-2170

Switch
(Superseded to KM-27010-0851)

$19.99

$

In Stock, only 1 left!

0

30

Cub Cadet KM-27010-2182

Switch

$38.99

$

In Stock, only 1 left!

0

31

Cub Cadet KM-59026-2054

Pulsing Coil
(Superseded to KM-59026-0048)

$86.99

$

Usually ships in 2-5 days

0

32

Cub Cadet KM-59031-2122

Charging Coil

$

$

Not available

33

Cub Cadet KM-92009-2273

Screw

$1.49

$

Usually ships in 2-5 days

0

34

Cub Cadet KM-92015-2167

Nut

$7.49

$

Usually ships in 2-5 days

0

35

Cub Cadet KM-92022-2245

Washer

$1.49

$

Usually ships in 2-5 days

0

36

Cub Cadet KM-92037-2208

Clamp

$0.99

$

Usually ships in 2-5 days

0

37

Cub Cadet KM-92070-2060

Spark Plug, (NGK - BMR6A)
(Superseded to KM-BMR6A)

$3.49

$

In Stock, Qty 8

0

38

Cub Cadet KM-92072-1195

Band

$1.99

$

Usually ships in 2-5 days

0

39

Cub Cadet KM-92072-2003

Band

$

$

Not available

40

Cub Cadet KM-130B0520

Flanged Bolt

$

$

Not available

41

Cub Cadet KM-130B0614

Flanged Bolt

$

$

Not available

42

Cub Cadet KM-130G0625

Flanged Bolt
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

43

Cub Cadet KM-214B0510

Pan Screw

$

$

Not available

44

Cub Cadet KM-225B0414

Pan Screw

$

$

Not available

45

Cub Cadet KM-241B0406

Pan Screw

$0.99

$

In Stock, Qty 9

0

46

Cub Cadet KM-510A5100

Woodruff Key

$3.49

$

In Stock, Qty 11

0
