365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Engine Controls, Air Filter & Muffler (Model 365L) Parts Diagram

36" Zero-Turn Mower

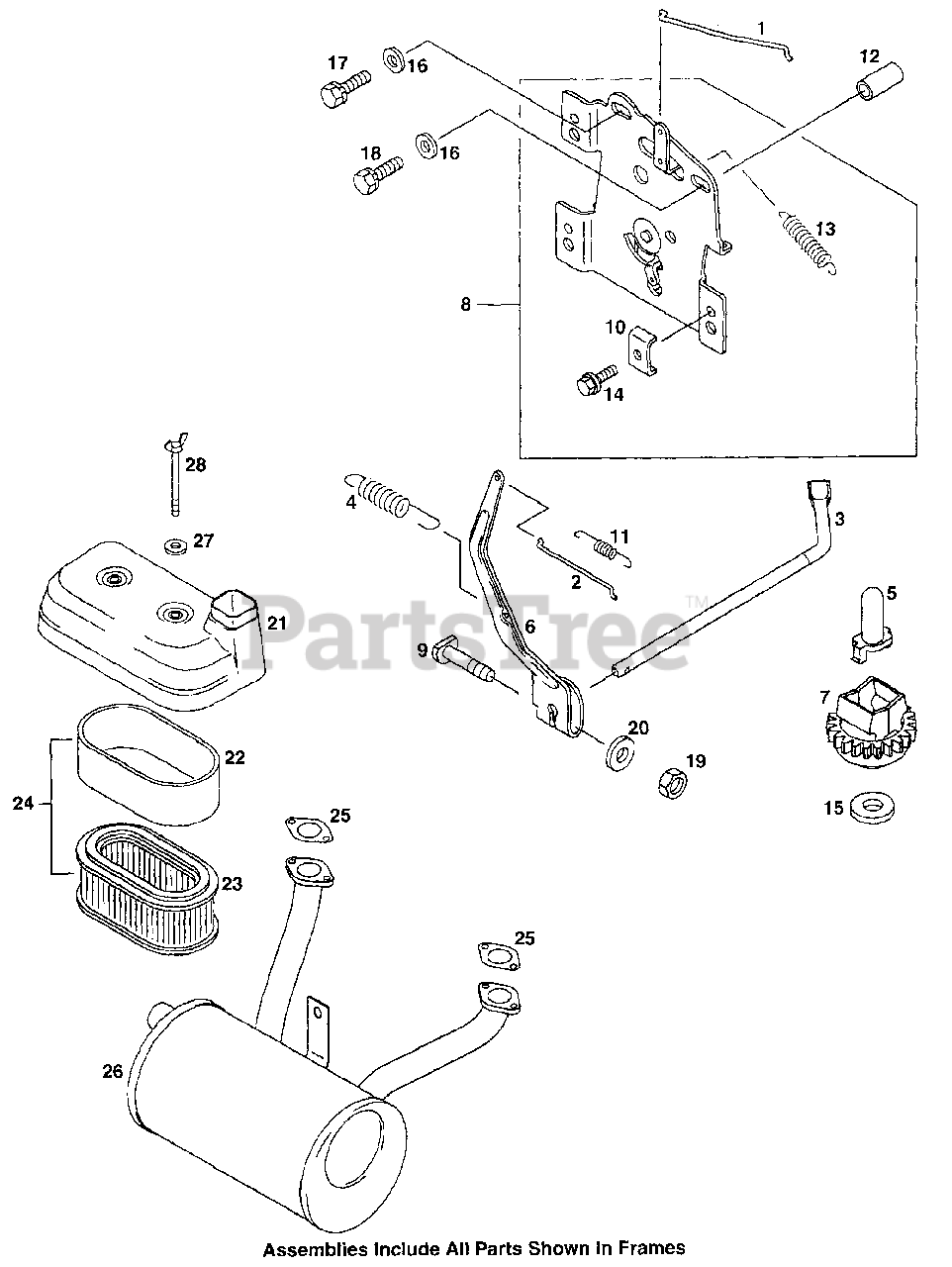

Engine Controls, Air Filter & Muffler (Model 365L) Parts Diagram

  • Title

1

Cub Cadet KM-16169-2121

Choke Link

$1.99

$

In Stock, only 1 left!

0

2

Cub Cadet KM-16171-2057

Link

$1.49

$

In Stock, only 4 left!

0

3

Cub Cadet KM-39003-2064

Pivot Arm

$6.99

$

In Stock, only 1 left!

0

4

Cub Cadet KM-39129-2060

Governor Spring

$3.99

$

Usually ships in 2-5 days

0

5

Cub Cadet KM-42036-2051

Sleeve

$

$

Not available

6

Cub Cadet KM-49103-2108

Governor Arm

$3.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-49110-2073

Governor Assembly

$8.99

$

In Stock, only 1 left!

0

8

Cub Cadet KM-49113-2153

Control Panel

$25.99

$

Usually ships in 2-5 days

0

9

Cub Cadet KM-92002-2269

Bolt

$1.99

$

In Stock, Qty 6

0

10

Cub Cadet KM-92037-2209

Clamp

$1.49

$

In Stock, only 4 left!

0

11

Cub Cadet KM-92081-2192

Spring

$1.99

$

In Stock, Qty 7

0

12

Cub Cadet KM-92143-2200

Collar, 6.8 x 10 x 20.5

$10.99

$

In Stock, only 1 left!

0

13

Cub Cadet KM-92144-2052

Spring

$9.49

$

In Stock, only 2 left!

0

14

Cub Cadet KM-92150-2182

Bolt, .5 x 18

$0.99

$

In Stock, Qty 20+

0

15

Cub Cadet KM-92200-2036

Washer

$1.49

$

In Stock, Qty 12

0

16

Cub Cadet KM-92200-2070

Washer

$1.49

$

In Stock, only 4 left!

0

17

Cub Cadet KM-180B0616

Bolt-Upset-WS

$

$

Not available

18

Cub Cadet KM-180B0635

Bolt-Upset-WS

$

$

Not available

19

Cub Cadet KM-311B0600

Hex Nut
(Superseded to KM-311AA0600)

$0.99

$

In Stock, Qty 20+

0

20

Cub Cadet KM-411B0600

Plain Washer
(Superseded to KM-411AA0600)

$4.49

$

In Stock, Qty 12

0

21

Cub Cadet KM-11011-2193

Air Filter Case

$32.99

$

Usually ships in 2-5 days

0

22

Cub Cadet KM-11013-2114

Air Filter Precleaner

$6.99

$

In Stock, Qty 20+

0

23

Cub Cadet KM-11013-2115

Air Filter Element
(Superseded to KM-11013-2205)

$28.99

$

In Stock, only 1 left!

0

24

Cub Cadet KM-11029-2001

Air Filter Assembly
(Superseded to KM-11029-2017)

$38.99

$

Usually ships in 2-5 days

0

25

Cub Cadet KM-11060-2079

Muffler Gasket

$5.49

$

In Stock, Qty 20+

0

26

Cub Cadet KM-49070-2435-9Y

Complete Muffler

$

$

Currently unavailable

27

Cub Cadet KM-92022-1545

Washer

$

$

Not available

28

Cub Cadet KM-92150-2004

Bolt

$3.99

$

In Stock, only 2 left!

0
