365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Engine Assembly (Model 365L) Parts Diagram

36" Zero-Turn Mower

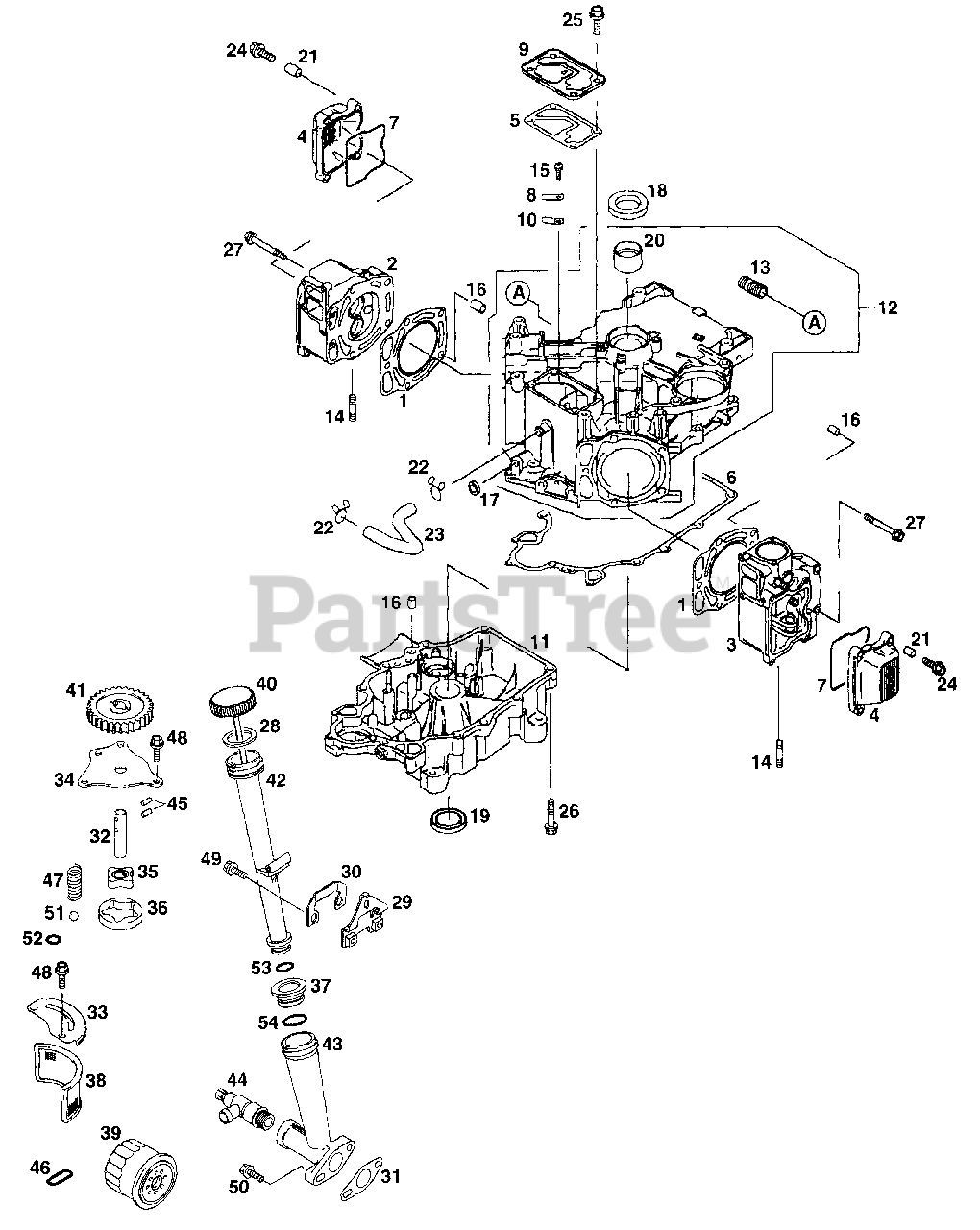

Engine Assembly (Model 365L) Parts Diagram

  • Title

1

Cub Cadet KM-11004-2098

Head Gasket

$18.99

$

In Stock, only 4 left!

0

2

Cub Cadet KM-11008-2066

Cylinder Head
(Superseded to KM-11008-2133)

$

$

Not available

3

Cub Cadet KM-11008-6005

Cylinder Head
(Superseded to KM-11008-6035)

$

$

Not available

4

Cub Cadet KM-11022-2056

Rocker Case

$16.99

$

In Stock, only 1 left!

0

5

Cub Cadet KM-11060-2074

Gasket

$3.99

$

Usually ships in 2-5 days

0

6

Cub Cadet KM-11060-2284

Crankcase Cover Gasket
(Superseded to KM-11060-2449)

$22.99

$

Usually ships in 2-5 days

0

7

Cub Cadet KM-11060-2332

Rocker Case Gasket
(Superseded to KM-11061-2182)

$7.99

$

In Stock, Qty 20+

0

8

Cub Cadet KM-13183-2120

Plate

$0.99

$

In Stock, only 2 left!

0

9

Cub Cadet KM-14024-2109

Cover

$

$

Not available

10

Cub Cadet KM-16126-2146

Valve

$0.99

$

In Stock, Qty 9

0

11

Cub Cadet KM-49015-6100

Crankcase Cover

$375.99

$

Usually ships in 2-5 days

0

12

Cub Cadet KM-49120-6070

Crankcase

$

$

Not available

13

Cub Cadet KM-59071-2079

Joint

$6.49

$

In Stock, Qty 8

0

14

Cub Cadet KM-92004-2141

Stud

$1.49

$

Usually ships in 2-5 days

0

15

Cub Cadet KM-92009-2308

Screw

$0.99

$

In Stock, Qty 6

0

16

Cub Cadet KM-92043-1037

Pin

$0.99

$

In Stock, Qty 20+

0

17

Cub Cadet KM-92049-2097

Oil Seal

$2.49

$

In Stock, only 3 left!

0

18

Cub Cadet KM-92049-2110

Oil Seal
(Superseded to KM-92049-2112)

$6.99

$

In Stock, Qty 14

0

19

Cub Cadet KM-92049-2112

Oil Seal

$6.99

$

In Stock, Qty 14

0

20

Cub Cadet KM-92141-2110

Plane Bearing
(Superseded to KM-92141-2122)

$8.49

$

In Stock, Qty 14

0

21

Cub Cadet KM-92143-2010

Collar

$0.99

$

In Stock, Qty 9

0

22

Cub Cadet KM-92170-2002

Clamp

$0.99

$

In Stock, Qty 7

0

23

Cub Cadet KM-92190-2145

Tube

$7.99

$

In Stock, only 1 left!

0

24

Cub Cadet KM-130B0625

Flanged Bolt
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

25

Cub Cadet KM-130B0816

Flanged Bolt
(Superseded to KM-130BA0816)

$1.99

$

In Stock, only 4 left!

0

26

Cub Cadet KM-130G0845

Flanged Bolt
(Superseded to KM-130BA0845)

$1.99

$

In Stock, Qty 13

0

27

Cub Cadet KM-130G0865

Flanged Bolt
(Superseded to KM-130BA0865)

$1.99

$

Usually ships in 2-5 days

0

28

Cub Cadet KM-11009-2346

Oil Gauge Gasket

$2.49

$

In Stock, Qty 6

0

29

Cub Cadet KM-11050-2066-9H

Bracket

$

$

Currently unavailable

30

Cub Cadet KM-11050-2067-9H

Bracket

$

$

Currently unavailable

31

Cub Cadet KM-11060-2083

Filler Gasket

$1.49

$

In Stock, Qty 14

0

32

Cub Cadet KM-13107-2099

Oil Pump Shaft
(Superseded to KM-13107-2296)

$12.99

$

In Stock, only 1 left!

0

33

Cub Cadet KM-13183-2121

Plate

$

$

Not available

34

Cub Cadet KM-14024-2113

Oil Pump Cover

$4.99

$

In Stock, only 1 left!

0

35

Cub Cadet KM-16154-2053

Pump Rotor, In

$12.99

$

In Stock, Qty 5

0

36

Cub Cadet KM-16154-2054

Pump Rotor, Out

$9.49

$

In Stock, Qty 5

0

37

Cub Cadet KM-41077-2068

Adapter

$

$

Not available

38

Cub Cadet KM-49065-2058

Oil Filter

$8.49

$

Usually ships in 2-5 days

0

39

Cub Cadet KM-49065-2071

Oil Filter
(Superseded to KM-49065-7010)

$18.99

$

In Stock, Qty 20+

0

40

Cub Cadet KM-52005-2126

Gauge

$

$

Not available

41

Cub Cadet KM-59051-2114

Spur Gear

$7.49

$

In Stock, only 1 left!

0

42

Cub Cadet KM-59231-2067

Filler

$

$

Not available

43

Cub Cadet KM-59231-2087

Filler

$

$

Not available

44

Cub Cadet KM-92005-2059

Fitting
(Superseded to KM-99969-1395)

$20.99

$

In Stock, only 1 left!

0

45

Cub Cadet KM-92042-014

Pin

$0.99

$

In Stock, Qty 12

0

46

Cub Cadet KM-92055-2086

O-Ring

$1.49

$

In Stock, Qty 18

0

47

Cub Cadet KM-92144-2053

Spring
(Superseded to KM-92145-2132)

$0.99

$

In Stock, only 1 left!

0

48

Cub Cadet KM-130B0614

Flanged Bolt

$

$

Not available

49

Cub Cadet KM-130G0612

Flanged Bolt
(Superseded to KM-130BA0612)

$1.99

$

In Stock, Qty 20+

0

50

Cub Cadet KM-130G0625

Flanged Bolt
(Superseded to KM-130BA0625)

$1.49

$

In Stock, Qty 20+

0

51

Cub Cadet KM-600A1300

Steel Ball

$0.99

$

In Stock, only 3 left!

0

52

Cub Cadet KM-670B2011

O-Ring

$1.49

$

In Stock, Qty 20+

0

53

Cub Cadet KM-670D2016

O-Ring

$1.99

$

In Stock, Qty 20+

0

54

Cub Cadet KM-670D2022

O-Ring

$

$

Not available
