365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Deck Lift Assembly Parts Diagram

36" Zero-Turn Mower

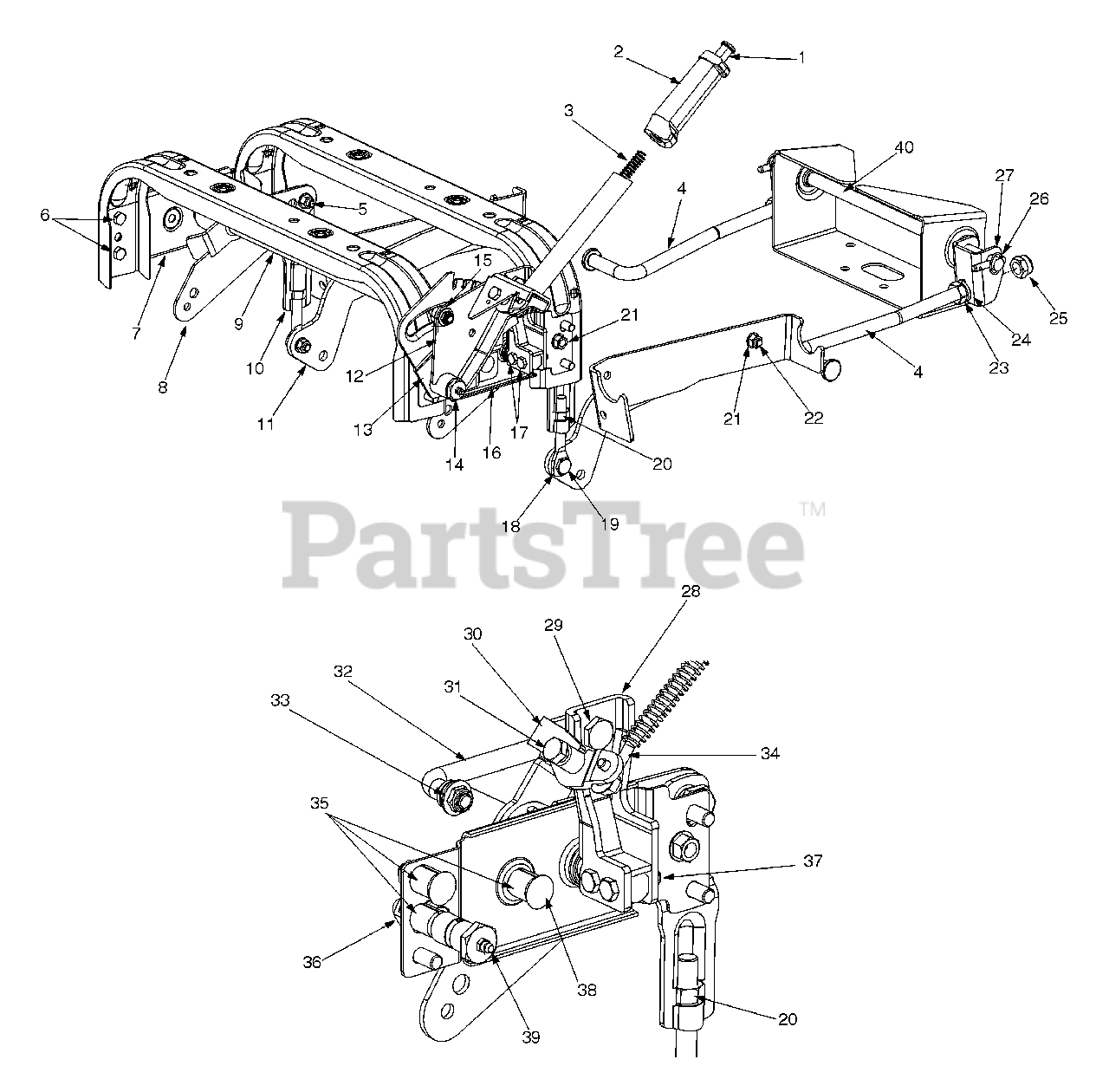

Deck Lift Assembly Parts Diagram

  • Title

1

Cub Cadet 711-0642A

Handle Button

$7.99

$

In Stock, Qty 12

0

2

Cub Cadet 731-3158

Handle Deck Lift Grip

$17.99

$

Usually ships in 3-6 days

0

3

Cub Cadet 732-3097

Compression Spring

$14.99

$

In Stock, only 4 left!

0

4

Cub Cadet 747-3405

Front Lift Rod

$

$

Not available

5

Cub Cadet 738-0507B

Shoulder Screw .500 Dia x .434

$4.49

$

In Stock, only 4 left!

0

6

Cub Cadet 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

7

Cub Cadet 603-0422

Shaft Mounting Bracket - LH

$

$

Not available

8

Cub Cadet 603-0370

Pivot Link Bearing Ass'y

Variations

Cub Cadet 603-0370-0637

LINK ASSEMBLY:PIVOT W/B(POWDER BLACK) - POWDER BLACK (0637)

$45.99

$

In Stock, only 1 left!

0

Cub Cadet 603-0370-0498

LINK ASSEMBLY:PIVOT W/B - OLD CUB YELLOW (0498)

$

$

Not available

$

$

9

Cub Cadet 603-0313

Lift Shaft Ass'y
(Superseded to 603-0313-0637)

Variations

Cub Cadet 603-0313-0637

SHAFT ASM: LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

10

Cub Cadet 703-2621

Adjustable Deck Lift Link

Variations

Cub Cadet 703-2621-0637

LINK:LIFT:ADJ DECK(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

11

Cub Cadet 703-2780

Lift Parallel Link

$

$

Not available

12

Cub Cadet 603-0327

Handle Bearing Ass'y

Variations

Cub Cadet 603-0327-0498

HANDLE ASSEMBLY - OLD CUB YELLOW (0498)

$

$

Not available

Cub Cadet 603-0327-0637

HANDLE ASSEMBLY - POWDER BLACK (0637)

$

$

Not available

$

$

13

Cub Cadet 703-2772

Deck Height Adjustable Plate

Variations

Cub Cadet 703-2772-0498

PLT. HGT. ADJ DECK - OLD CUB YELLOW (0498)

$

$

Not available

$

$

14

Cub Cadet 738-3150

Lift Handle Shoulder Screw

$

$

Not available

15

Cub Cadet 712-3020

Top Lock Jam Nut 3/8-16
(Superseded to 912-3020)

$6.49

$

In Stock, Qty 10

0

16

Cub Cadet 603-0423

Shaft Mounting Bracket - RH

$

$

Not available

17

Cub Cadet 710-3083

Hex Cap Screw 5/16-18 x 1.375

$4.49

$

Usually ships in 3-6 days

0

18

Cub Cadet 711-0773

Eye Bolt Adjustable Link

$

$

Not available

19

Cub Cadet 738-0380

Shoulder Screw 3/8-16

$7.99

$

In Stock, only 1 left!

0

20

Cub Cadet 712-0206

Hex Nut 1/2-13

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

22

Cub Cadet 738-3151

Shoulder Screw 3/8-16 .56 x .27
(Superseded to 738-05008)

$8.49

$

In Stock, only 3 left!

0

23

Cub Cadet 712-3015

Jam Nut 5/8-11

$4.99

$

In Stock, only 2 left!

0

24

Cub Cadet 736-0158

Lock Washer 5/8

$4.49

$

In Stock, Qty 11

0

25

Cub Cadet 712-3016

Lock Hex Nut 5/8-11

$6.99

$

In Stock, Qty 13

0

26

Cub Cadet 711-3266

Clevis Pin

$15.99

$

In Stock, Qty 7

0

27

Cub Cadet 703-3407

Front Lift Bracket

Variations

Cub Cadet 703-3407-0637

FRONT LIFT BRACKET(POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

28

Cub Cadet 603-0401

Lift Arm Ass'y
(Superseded to 603-0401-0637)

Variations

Cub Cadet 603-0401-0637

ARM ASSY-LIFT - POWDER BLACK (0637)

$

$

Not available

$

$

29

Cub Cadet 738-0183

Shoulder Screw 3/8-16 .50 x .21
(Superseded to 938-0183)

$

$

Not available

30

Cub Cadet 603-0257

Fork Lift Ass'y

Variations

Cub Cadet 603-0257-0637

Fork Lift Assembly - POWDER BLACK (0637)

$94.99

$

In Stock, only 1 left!

0

$94.99

$

In Stock, only 1 left!

0

31

Cub Cadet 710-3011

Hex Cap Screw 3/8-16 x 2.25

$6.99

$

In Stock, Qty 20+

0

32

Cub Cadet 747-3276

Lift Link Rod

$

$

Not available

33

Cub Cadet 736-0300

Flat Washer .406 x .875

$4.49

$

In Stock, Qty 20+

0

34

Cub Cadet 747-3267

Handle Arm

$

$

Not available

35

Cub Cadet 750-3200

Spacer .448 ID x .688 OD

$

$

Not available

36

Cub Cadet 712-0290

Lock Nut 7/16-14

$4.99

$

In Stock, Qty 11

0

37

Cub Cadet 712-3009

Hex Center L-Nut 5/16-18

$6.99

$

In Stock, Qty 20+

0

38

Cub Cadet 710-0431

Hex Screw 3/8-16 x 1.50

$4.99

$

Usually ships in 3-6 days

0

39

Cub Cadet 737-0280

Grease Fitting

$7.99

$

In Stock, Qty 8

0

40

Cub Cadet 747-3406

Front Mounting Rod Bracket

$

$

Not available
