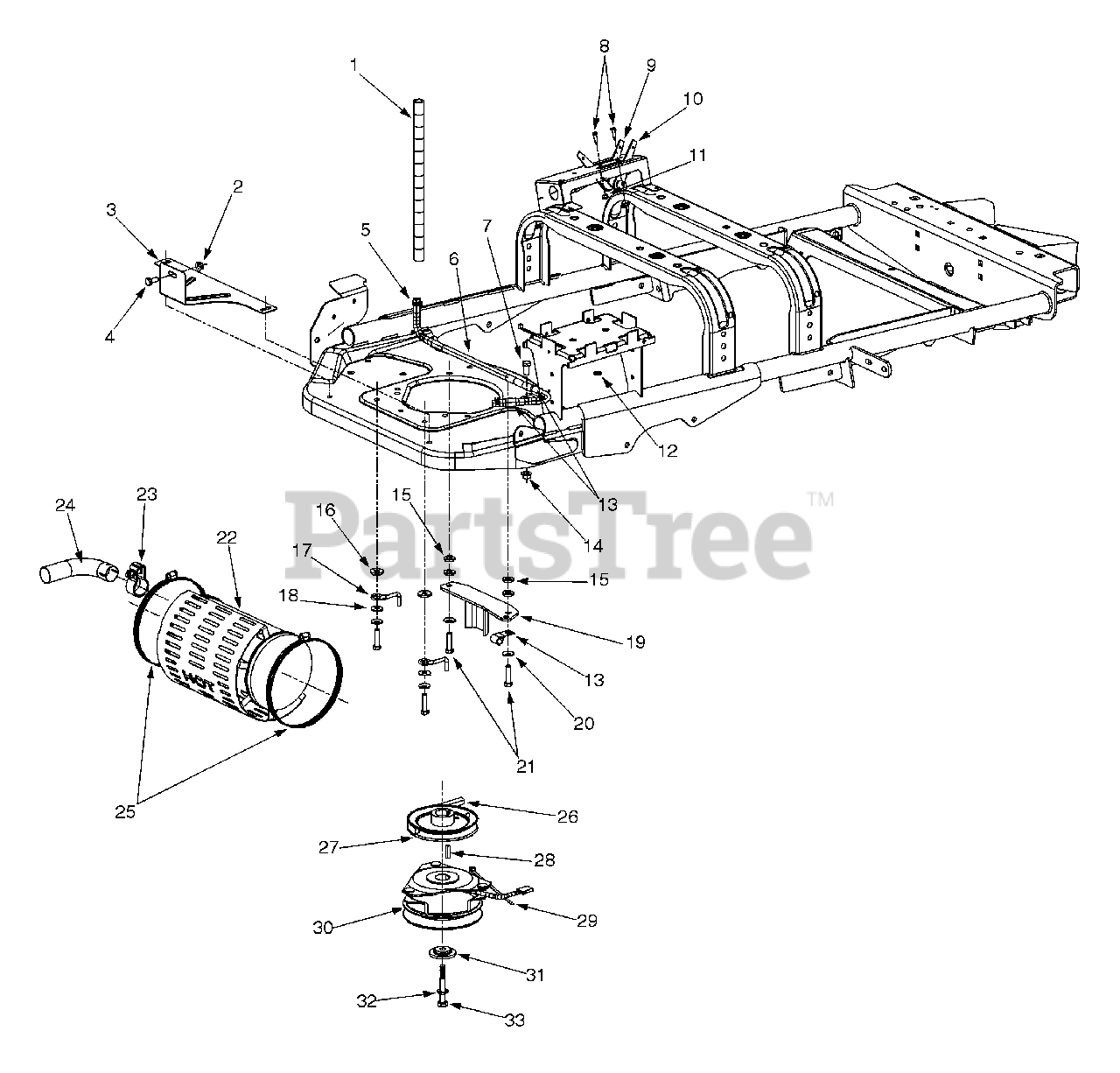

365 L (53CA1D5K100) - Cub Cadet 36" Zero-Turn Mower Choke & Throttle Cable, Muffler Assembly, PTO Clutch, Engine Acc's Parts Diagram

36" Zero-Turn Mower

Choke & Throttle Cable, Muffler Assembly, PTO Clutch, Engine Acc's Parts Diagram

  • Title

1

Cub Cadet 751-3141

Oil Drain Hose
(Superseded to 751-3141-14)

$11.99

$

In Stock, Qty 8

0

2

Cub Cadet 712-3004A

Flange Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

3

Cub Cadet 703-3023

Mounting Muffler Bracket

$

$

Not available

4

Cub Cadet 710-3008

Hex Cap Screw 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

5

Cub Cadet 726-0205

Hose Clamp

$3.99

$

In Stock, Qty 18

0

6

Cub Cadet 751-0535

Fuel Line Hose

$

$

Currently unavailable

7

Cub Cadet 710-0216

Hex Cap Screw 3/8-16 x .75

$4.49

$

In Stock, Qty 15

0

8

Cub Cadet 710-3009

Screw #10-24 x .750

$7.49

$

Usually ships in 3-6 days

0

9

Cub Cadet 746-3071

Throttle Control Cable 53.0"

$

$

Not available

10

Cub Cadet 746-3068

Choke Control Cable 43.0"

$

$

Not available

11

Cub Cadet 712-0161

Nylon Lock Nut #10-24

$4.49

$

In Stock, Qty 20+

0

12

Cub Cadet 736-0607

Lock Washer 5/16

$3.99

$

In Stock, Qty 20+

0

13

Cub Cadet 726-3008

Heat Shield Cable Clip

$4.99

$

Usually ships in 3-6 days

0

14

Cub Cadet 712-0431

Flange Lock Nut 3/8-16
(Superseded to 912-0431)

$4.99

$

In Stock, Qty 20+

0

15

Cub Cadet 736-3010

Flat Washer .407 ID x .812 OD

$4.99

$

In Stock, only 1 left!

0

16

Cub Cadet 736-0258

Flat Washer .385 ID x 1.0 OD

$4.49

$

Usually ships in 3-6 days

0

17

Cub Cadet 747-3362

Rear Belt Retainer Rod

$

$

Not available

18

Cub Cadet 736-0159

Washer 5/16

$4.49

$

In Stock, Qty 20+

0

19

Cub Cadet 603-0317

Clutch Retainer Ass'y

Variations

Cub Cadet 603-0317-0637

RETAINER-CLUTCH (POWDER BLACK) - POWDER BLACK (0637)

$

$

Not available

$

$

20

Cub Cadet 736-0242

Bell Washer .340 ID x .872 OD

$4.49

$

In Stock, Qty 20+

0

21

Cub Cadet 710-3207

Hex Cap Screw

$

$

Not available

22

Cub Cadet 703-3014

Muffler Shield

Variations

Cub Cadet 703-3014-0637

MUFFLER SHIELD - POWDER BLACK (0637)

$

$

Not available

$

$

23

Cub Cadet 751-3151

Muffler Tube Clamp

$

$

Not available

24

Cub Cadet 749-3074A

Muffler Tube

$

$

Not available

25

Cub Cadet 726-0290

Adjustable Clamp

$

$

Not available

26

Cub Cadet 754-3077

V-Belt
(Superseded to 954-3077)

$74.99

$

Usually ships in 3-6 days

0

27

Cub Cadet 756-3083

Pulley

$

$

Not available

28

Cub Cadet 714-0128

Key 1/4 x 1.0

$4.99

$

In Stock, Qty 6

0

29

Cub Cadet 725-0157

Cable Tie

$3.99

$

In Stock, Qty 20+

0

30

Cub Cadet 717-3390

Electric PTO Clutch
(Superseded to 917-3390)

$717.99

$

Usually ships in 3-6 days

0

31

Cub Cadet 750-3106

Spacer Clutch

$35.99

$

Usually ships in 3-6 days

0

32

Cub Cadet 736-0171

Lock Washer 7/16

$4.49

$

In Stock, only 4 left!

0

33

Cub Cadet 710-1616

Hex Cap Screw

$

$

Not available
